Key Specifications and Ratings
Consolidates 12 circuitsLED blown fuse indicatorWith ground bus
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

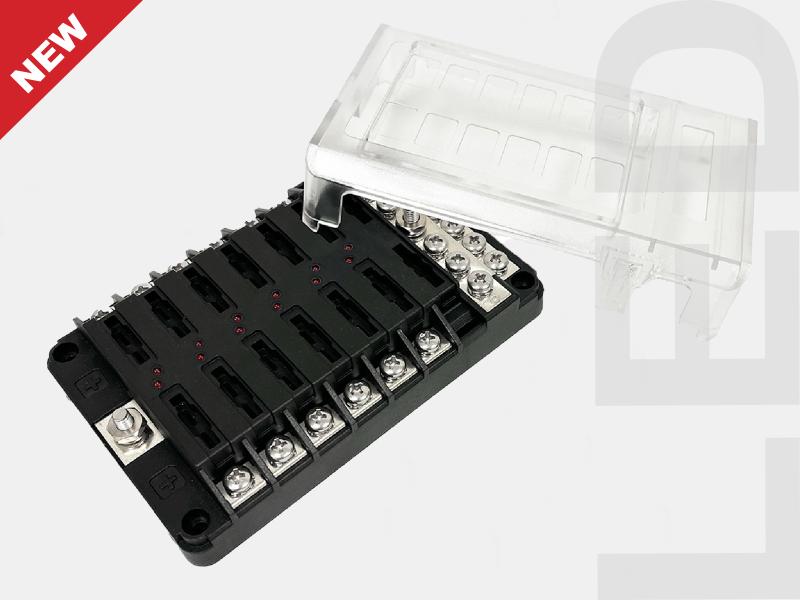

- BLR-I-1212-G supplies power and grounding to 12 circuits in one compact fuse block of Regular (ATO/ATC style) blade fuses. Provides a significant size reduction compared to other blocks with similar features.
- Built with an LED light for each circuit that illuminates when a circuit opens and a fuse needs to be replaced. Comes with storage for 2 spare fuses.

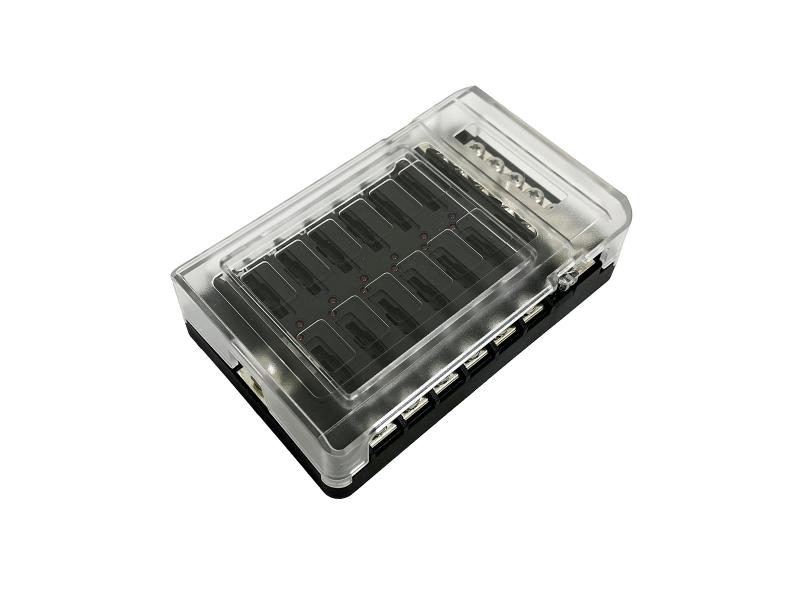

- Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles, and comes with an insulating cover that offers protection against short circuits, dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length5.18
Height1.42
Width3.33
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length5.18
Height1.42
Width3.33
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
