Key Specifications and Ratings
Consolidates 12 circuitsSplit circuits busSpace-saving compact design
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

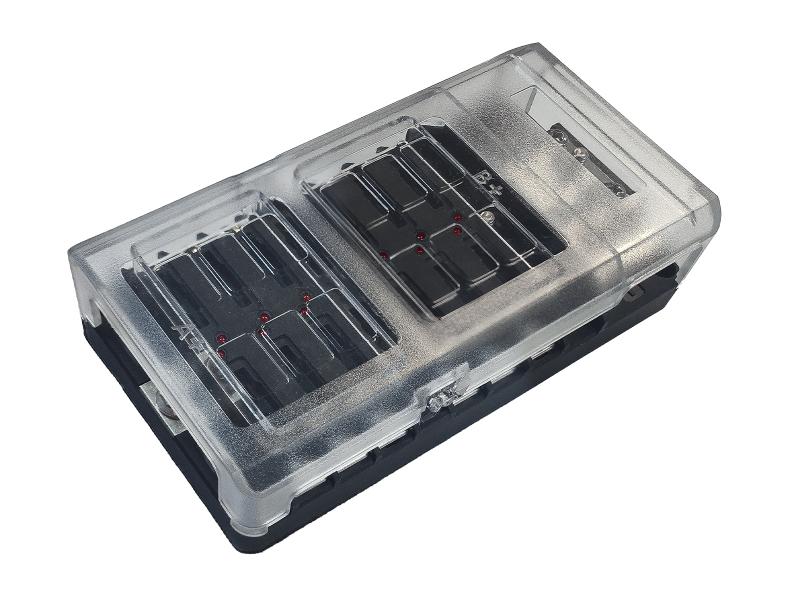

- This 12-position regular (ATO/ATC style) blade fuse block provides both power and grounding for new accessories while offering a compact size compared to similar blocks.
- The split bus design enables two isolated circuit groups, making it easy to combine switched and unswitched circuits on the same block.
- Built with an LED indicator for each circuit that lights up when a fuse blows, allowing for quick identification of issues.

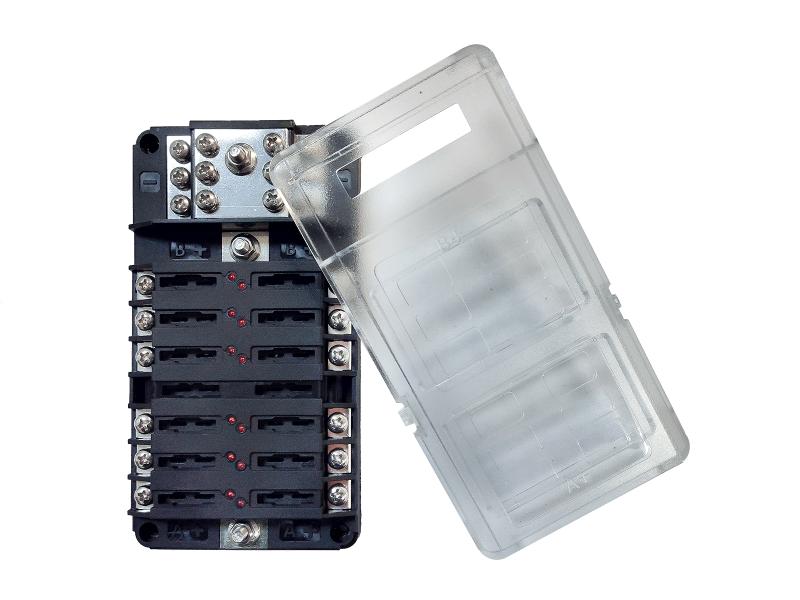

- Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles, it also includes an insulating cover to protect against short circuits, dirt, dust, and splashes.

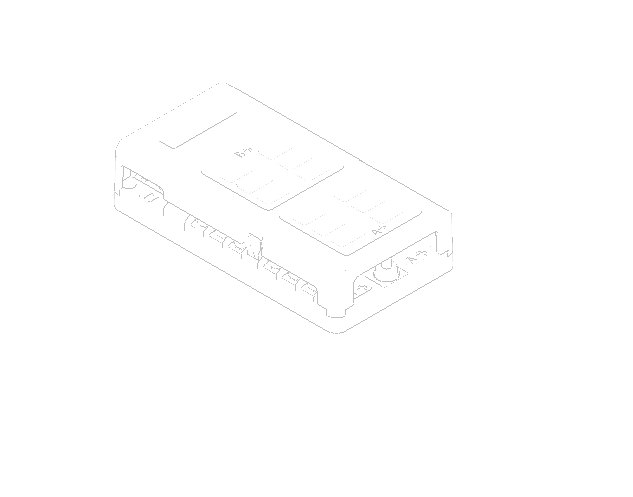

Dimensions and 3D view
Dimensions
Length6
Height1.42
Width3.33
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length6
Height1.42
Width3.33
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Related products
You can also use
BLR-1312-G
Current Rating30A
Voltage Rating80VDC
BLR-I-1212-G
Current Rating30A
Voltage Rating32VDC

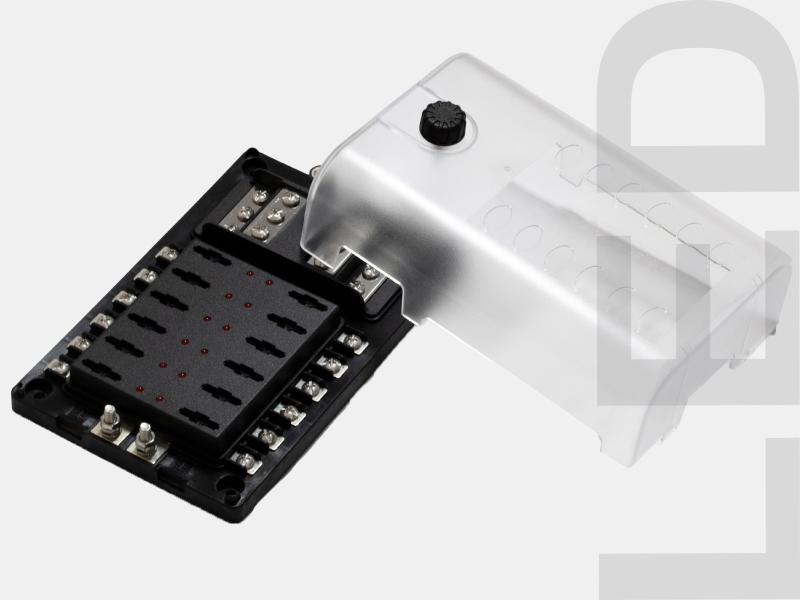

BLR-I-912-G
