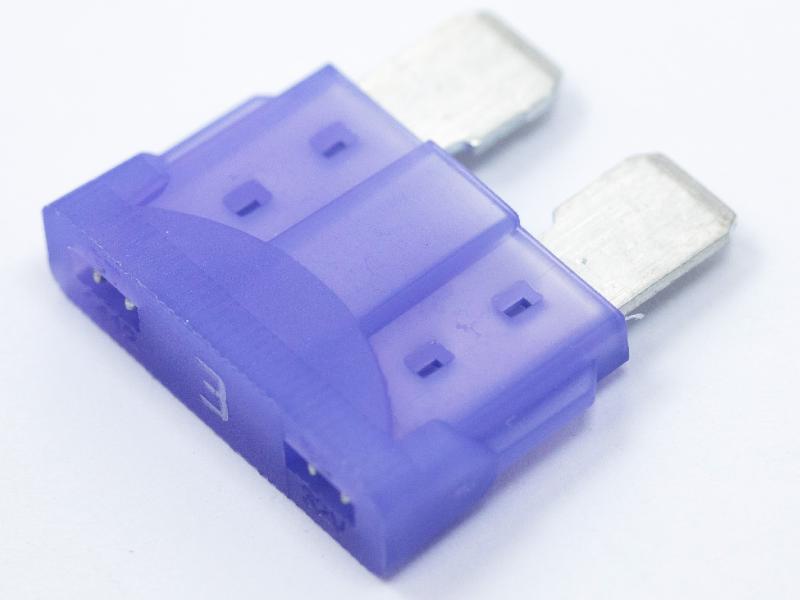

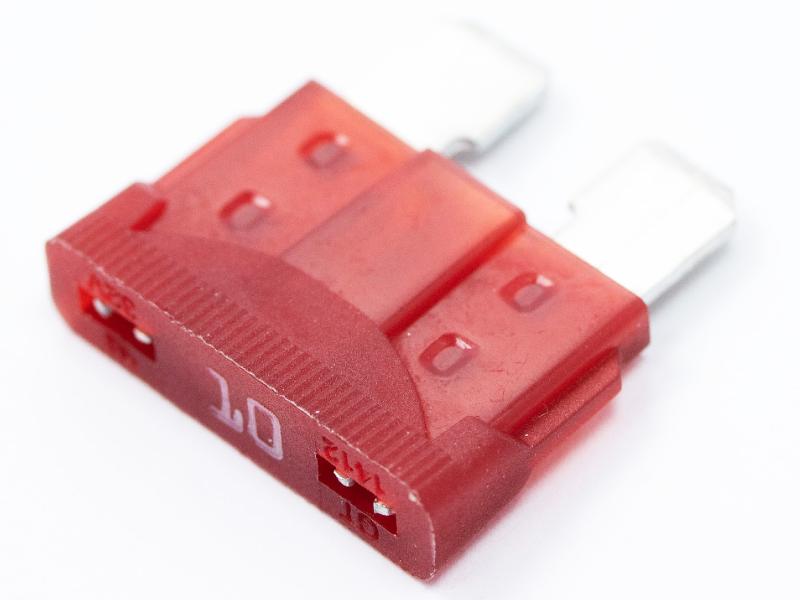

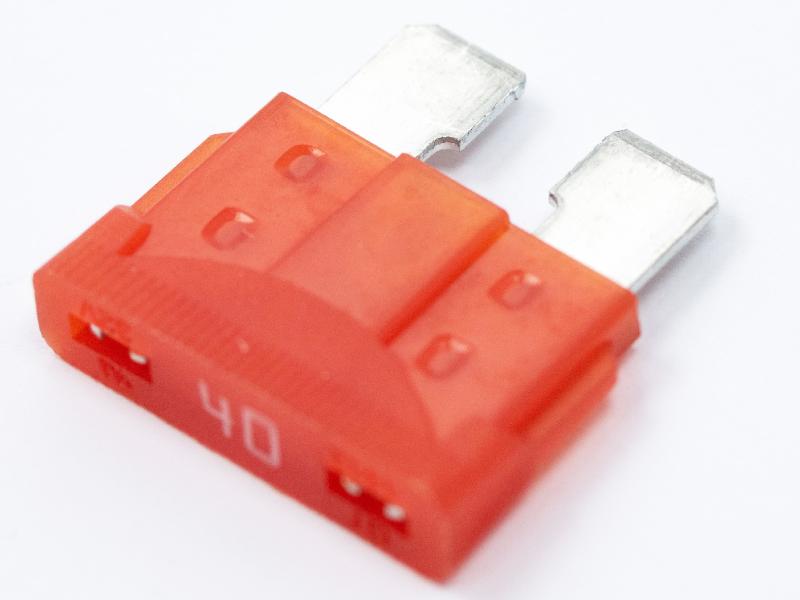

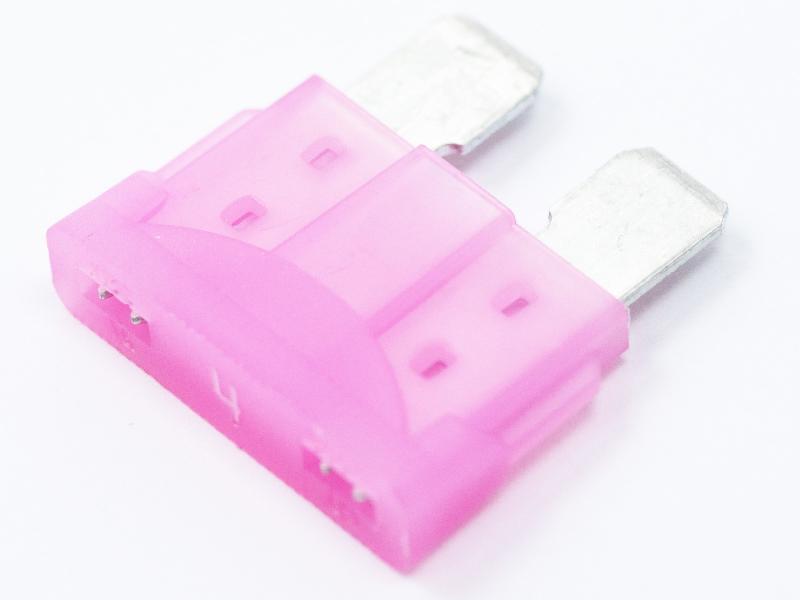

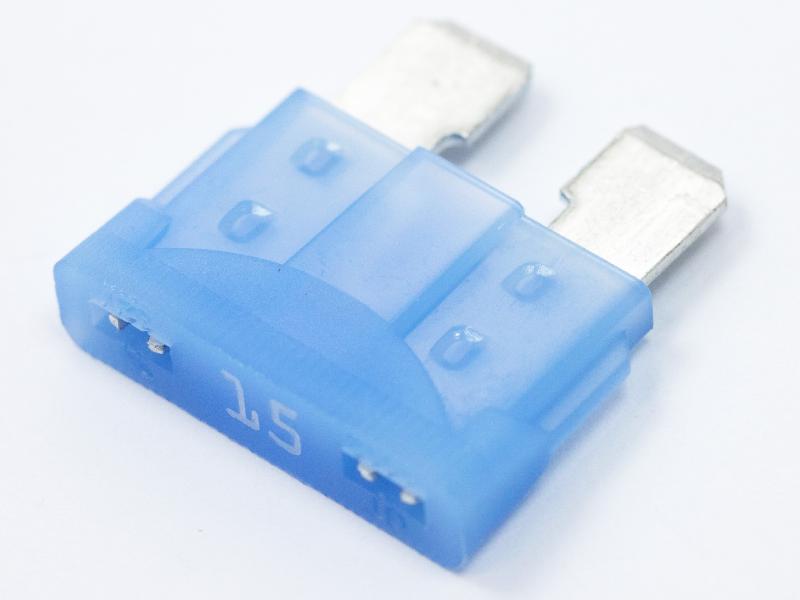

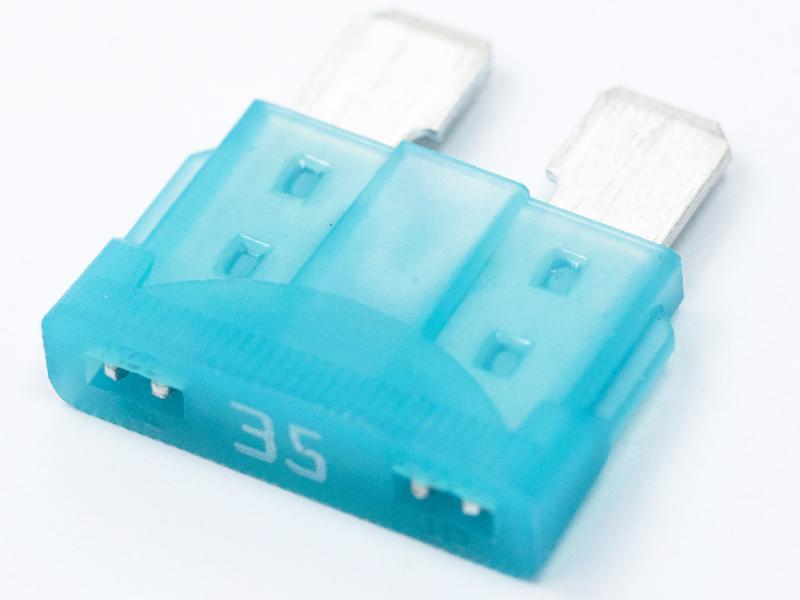

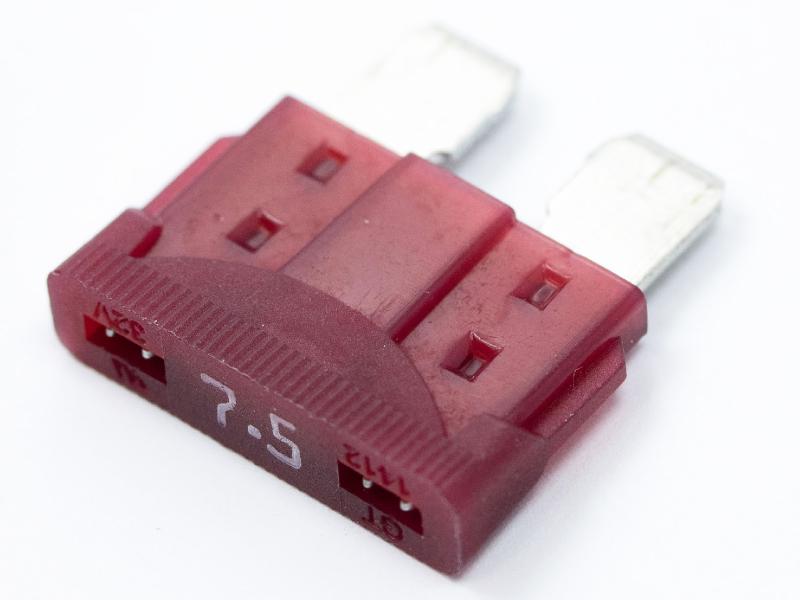

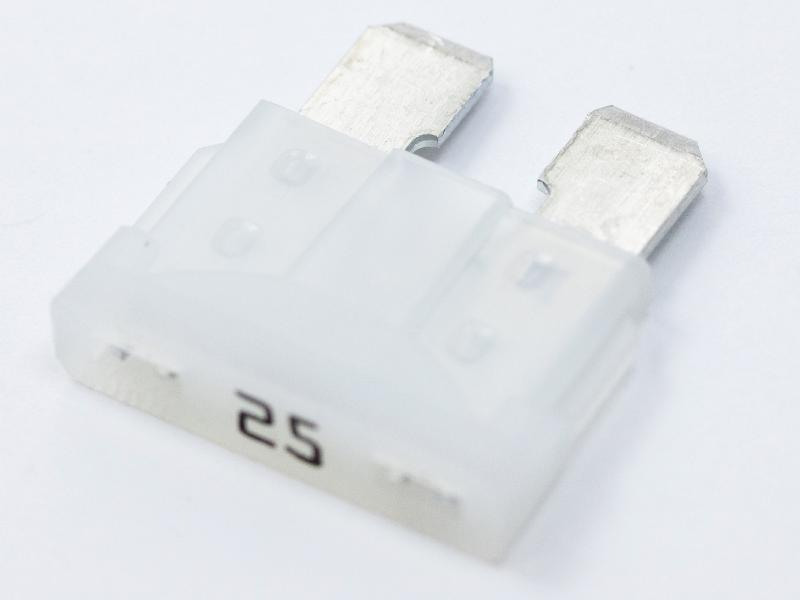

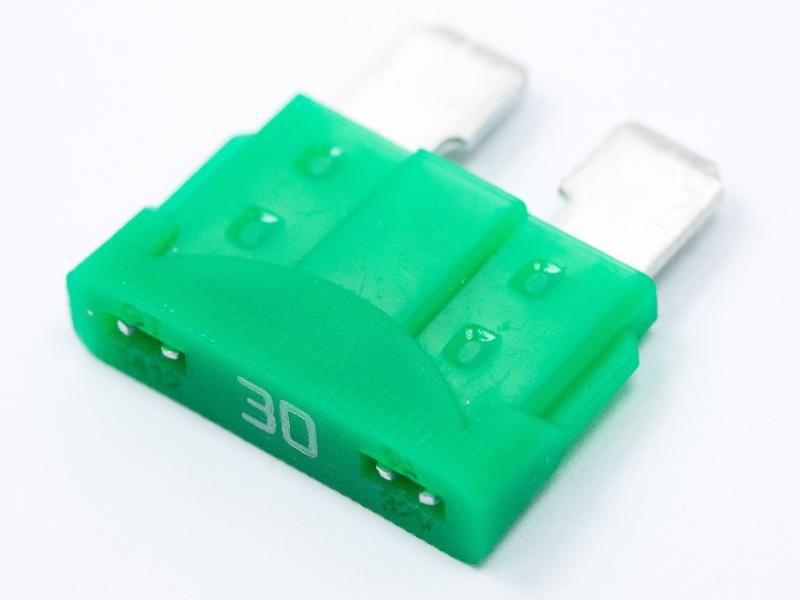

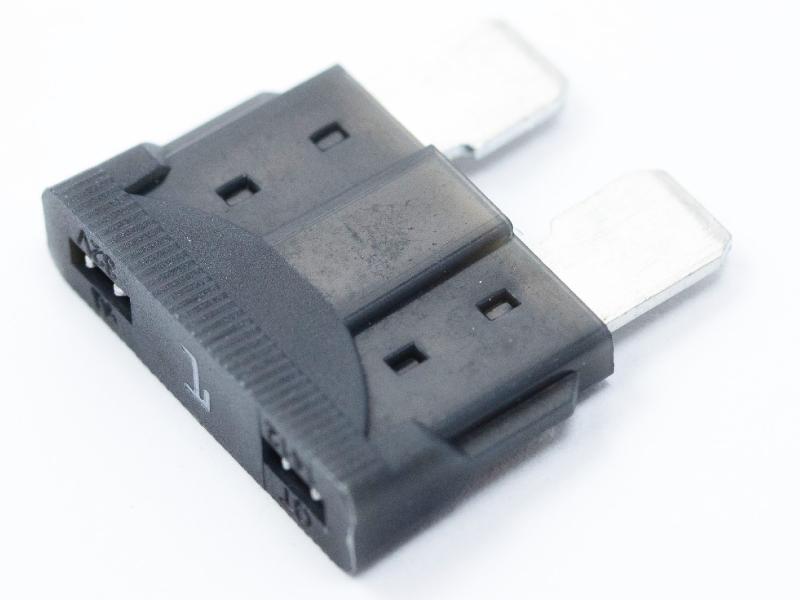

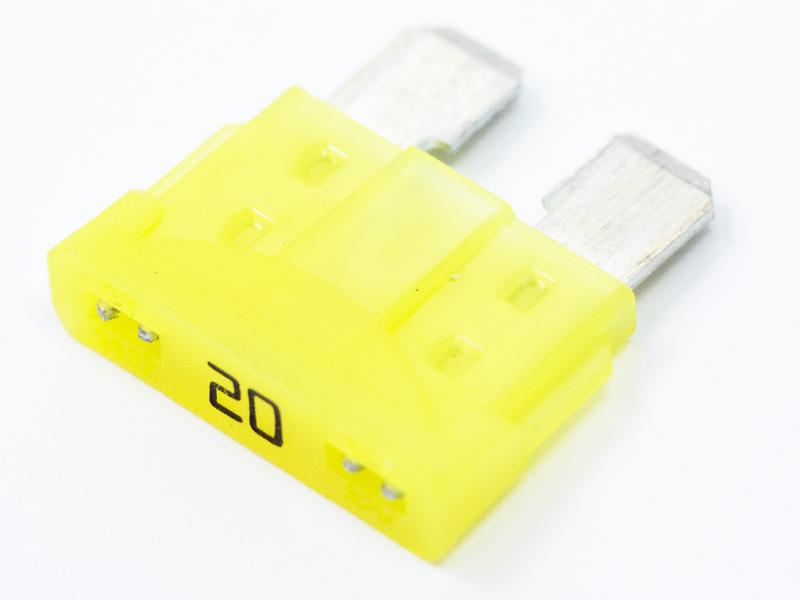

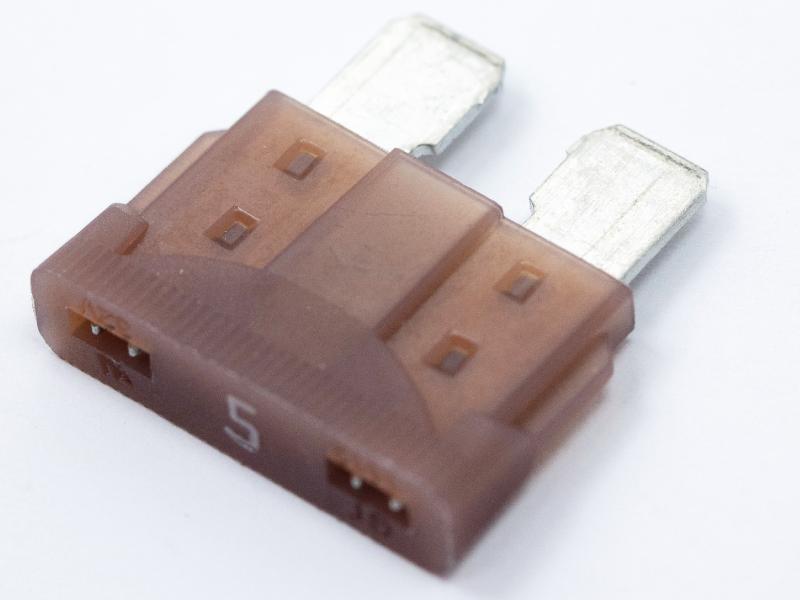

ANR-UL Regular ATO/ATC Blade Fuse, UL-Recognized
Disclaimer Notice
Key Specifications and Ratings
Regular (ATO/ATC style)UL recognizedNylon housing
Voltage Rating32VDC
Current Rating1A to 40A
Interrupt Rating 1000A DC
Features and Application
- Standard blade fuse style that is interchangeable with ATO® and ATC®, provided the amperage rating is the same.
- UL recognized, enabling OEM companies to satisfy requirements from UL.

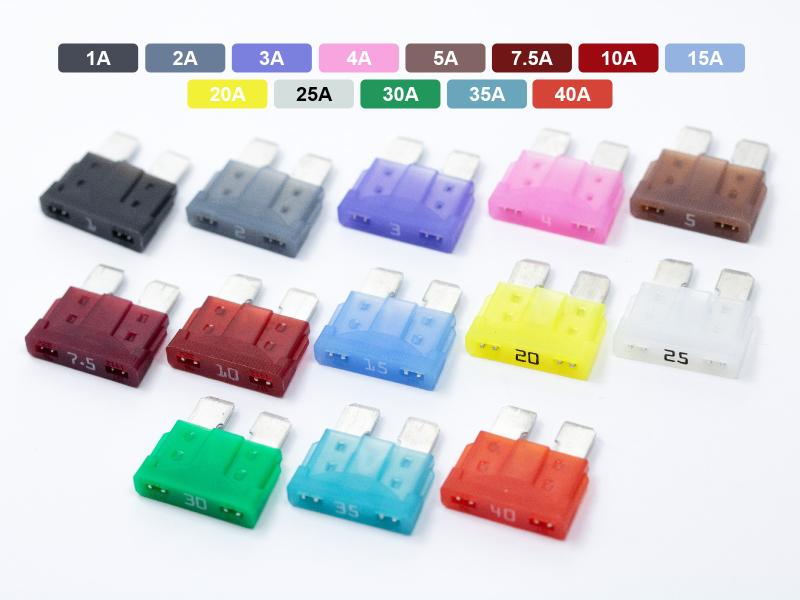

- Designed with industry-standard color coding for easy amperage identification.
UL File
Dimensions and 3D view
Dimensions
Length0.77
Height0.79
Width0.22
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.77
Height0.79
Width0.22
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
