Key Specifications and Ratings
Controls fuse block power with a 4-pin relaySupports relays up to 80AIncludes two independent fused circuits
Voltage Rating80VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)80A
Features and Application

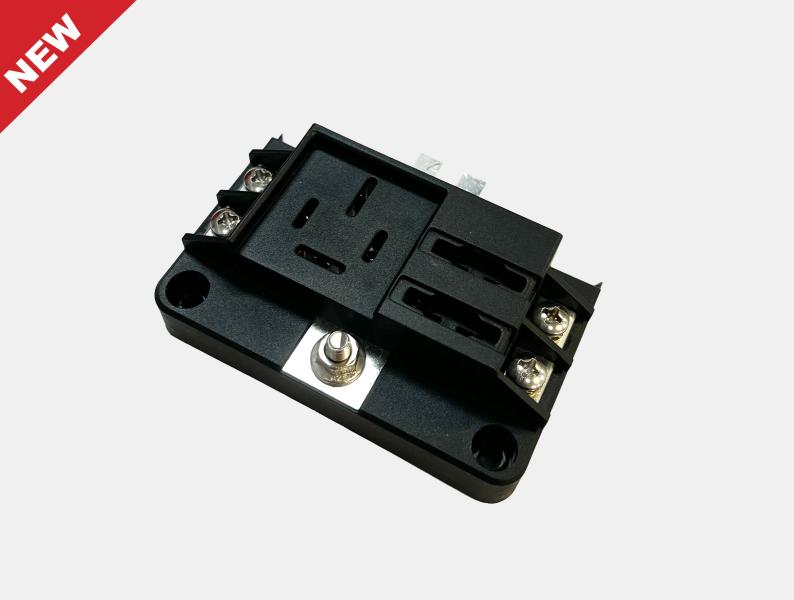

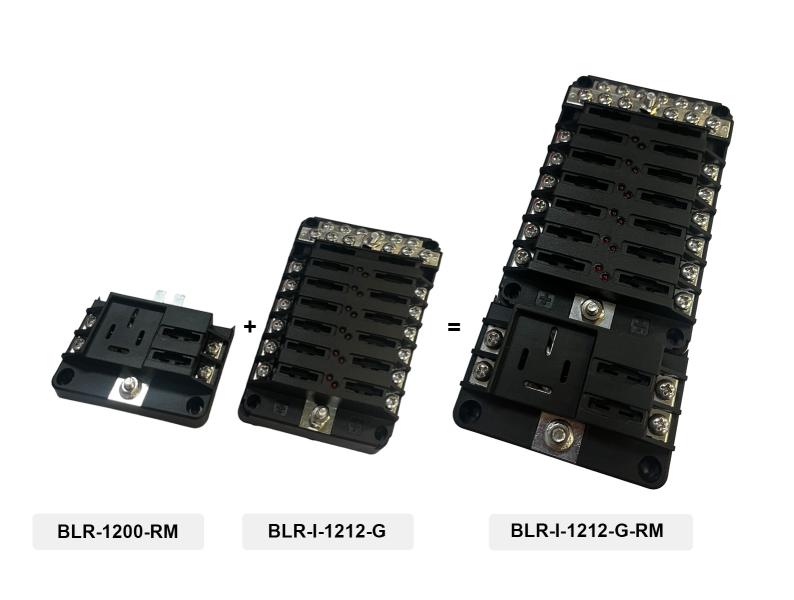

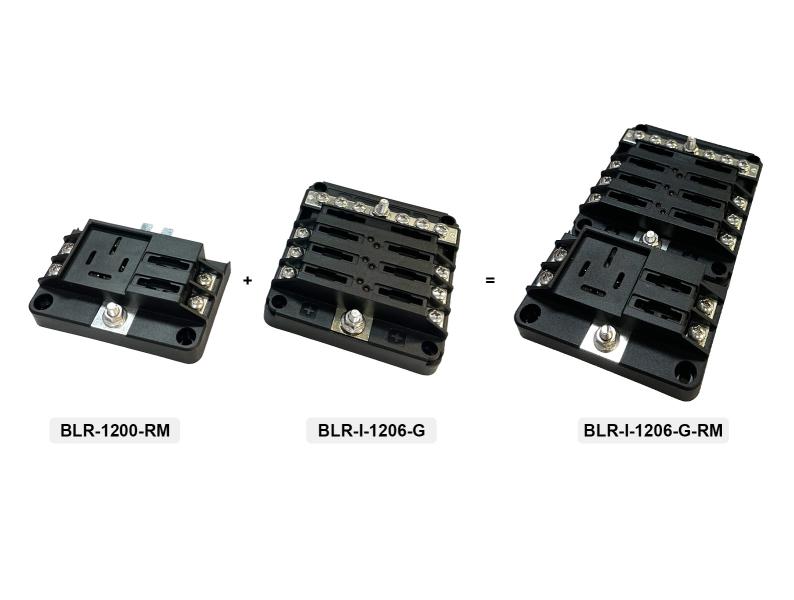

- This module is designed to slide onto the positive line side connection of an existing fuse block (BLR-1206-G or BLR-1212-G), enabling the switching of power ON and OFF to the fuse block through a 4-pin relay.

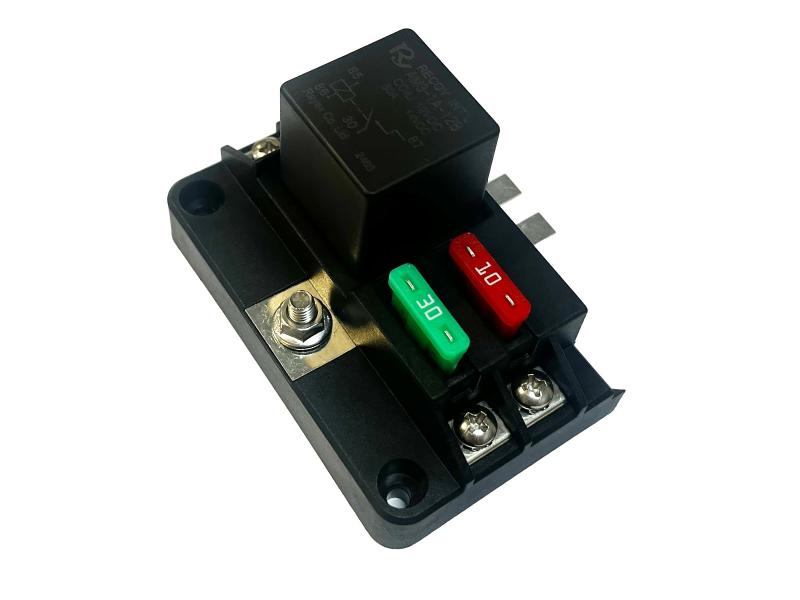

- The relay module is designed to operate with relays up to 80A, representing the maximum power input to the fuse block. Ask us about our RYA2-1A-12VDC relay.
- The relay serves as a switch controlled by an external low-power signal, allowing you to control the power supply to the fuse block.
- Additionally, BLR-1200-RM includes locations for 2 fused circuits that are always on, independent of the relay providing flexibility and constant power availability.
Dimensions and 3D view
Dimensions
Length2
Height1.04
Width3.37
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2
Height1.04
Width3.37
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
