Key Specifications and Ratings
Consolidates 6 circuitsLED blown fuse indicatorComes with clear, insulating coverRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

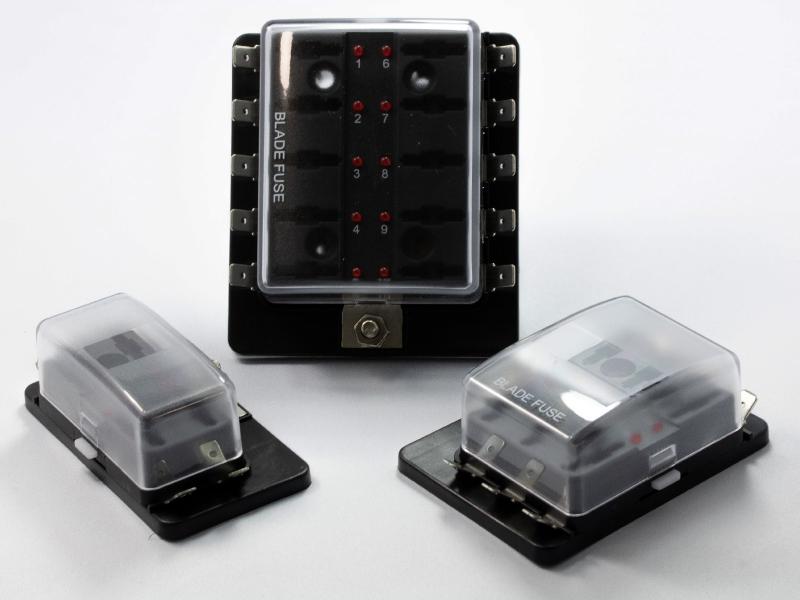

- Fuse block for Regular (ATO/ATC style) blade fuses used in DC distribution systems to provide compact circuit protection for 6 circuits, with a rated current of 30A per position and 100A total for the fuse block.
- With an LED light for each circuit that illuminates when the circuit opens and a fuse needs to be replaced, reducing the time required to find and replace a faulty fuse.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length2.48
Height0.83
Width3.35
UnitInch
