Key Specifications and Ratings
Consolidates 6 circuitsModular design2 items can be combined into 4 models
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

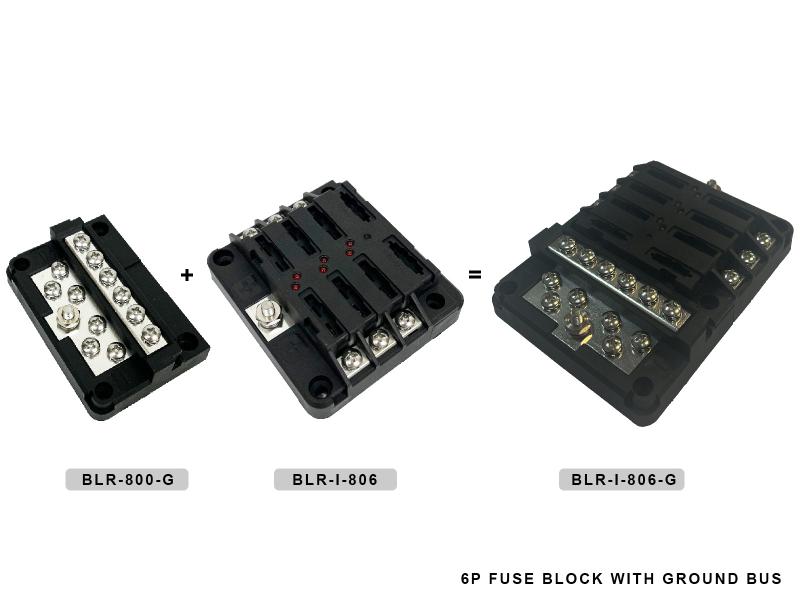

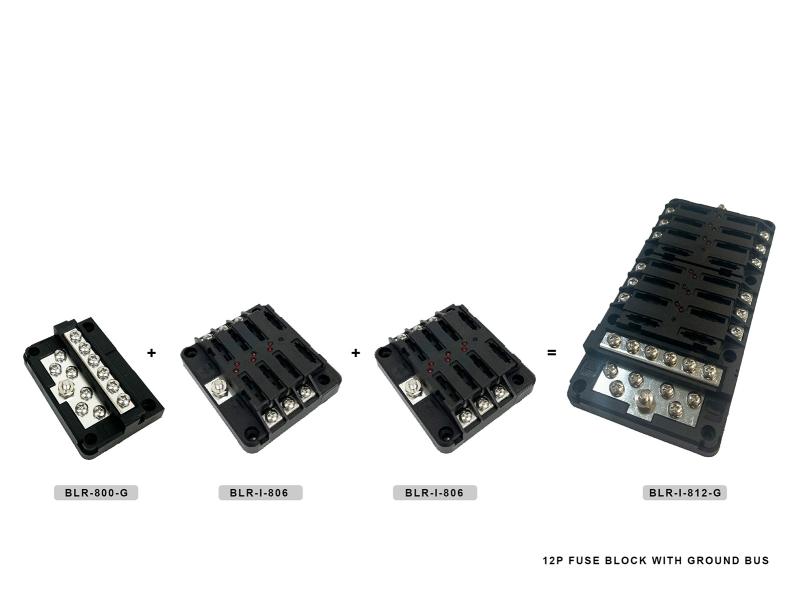

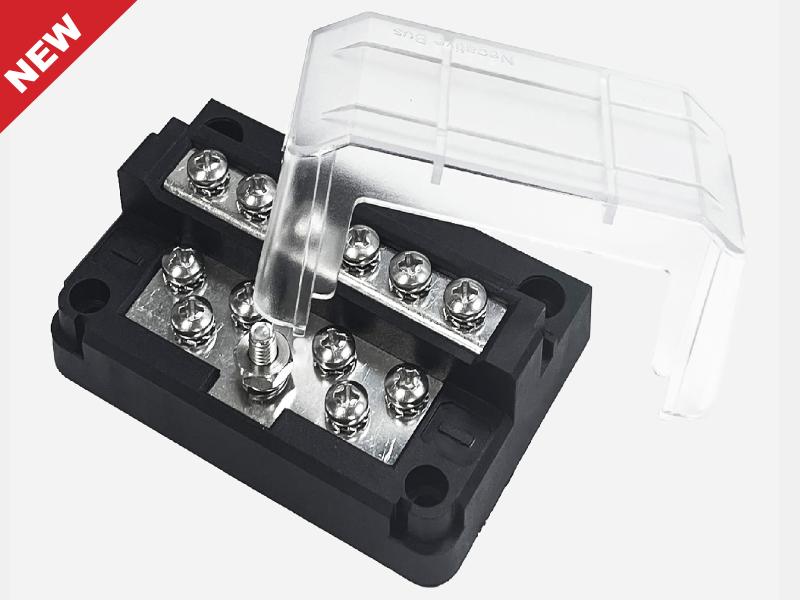

- This 6 position modular fuse block can be combined with another BLR-I-806 block and/or with OptiFuse’s BLR-800-G modular ground block. Versatile, simple to use and easy to inventory. With only two part numbers in inventory, it allows for the creation of four different blocks.
- Used with Regular (ATO/ATC style) blade fuses, it has a rated current of 30A per position and 100A total for the fuse block.

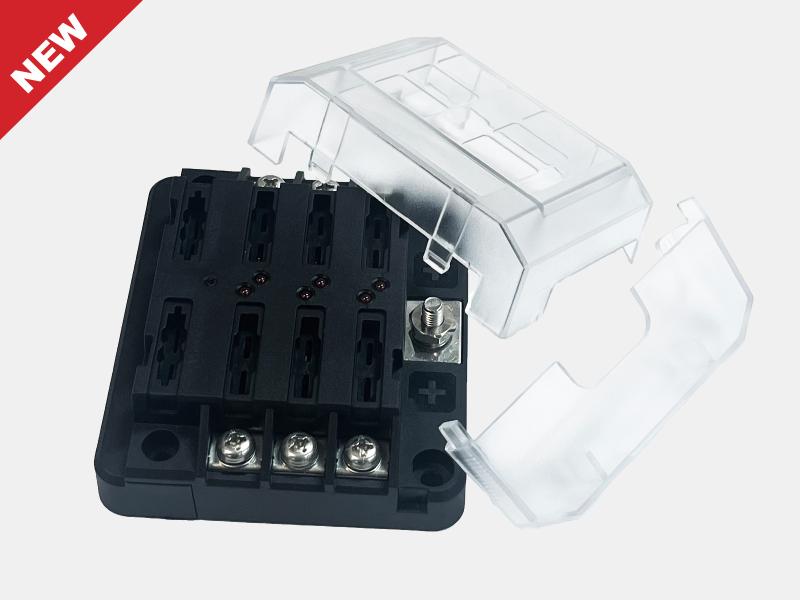

- Built with an LED light for each circuit that illuminates when a circuit opens and a fuse needs to be replaced. It also comes with storage for 2 spare fuses.

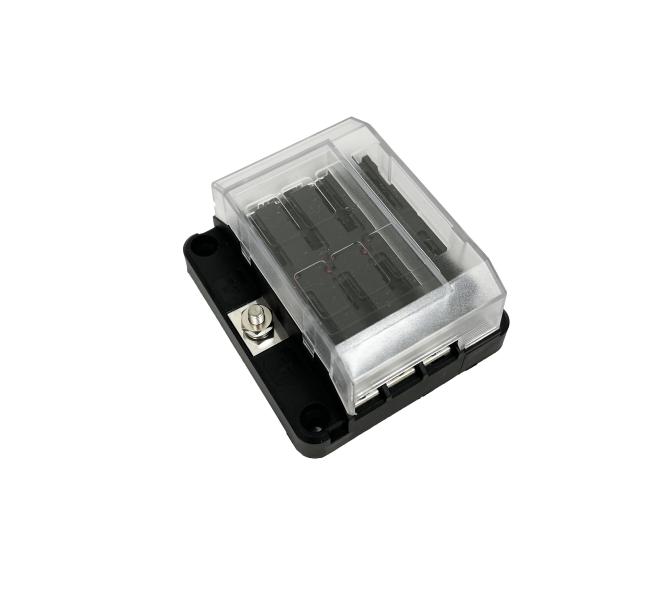

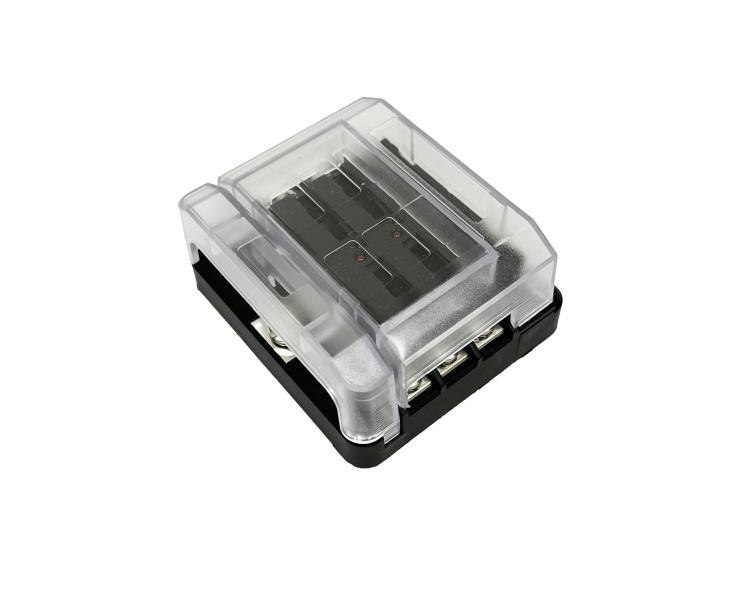

- Designed with screw terminals for secure wiring and an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.07
Height1.63
Width3.4
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.07
Height1.63
Width3.4
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
