OptiFuse
Key Specifications and Ratings
LED blown fuse indicatorSplash-proof cap (IP 55)
Voltage Rating24VDC
Current Rating10A to 30A
Wire Gauge#12 - #18AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

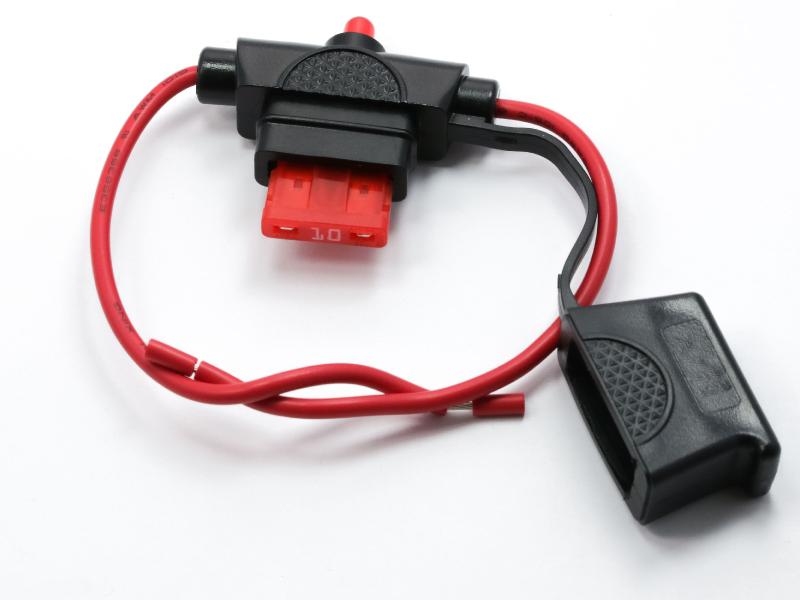

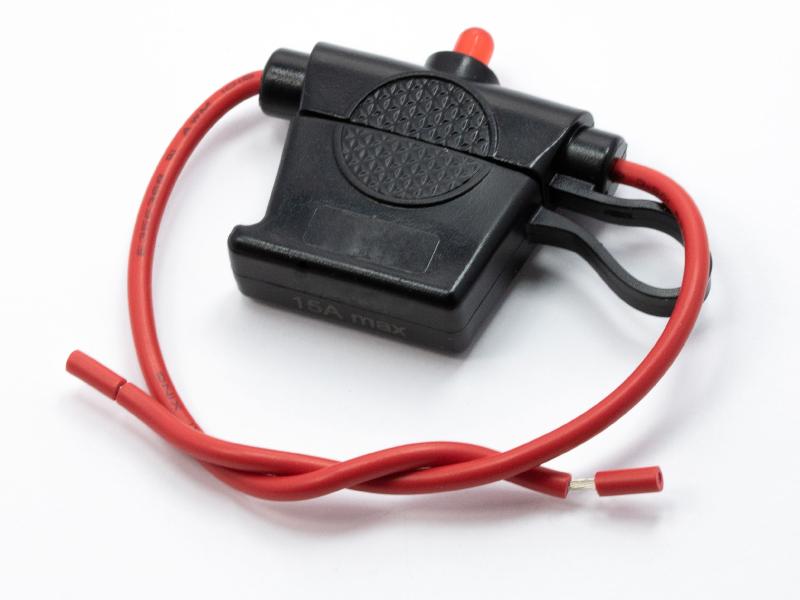

  • In-line fuse holder designed to help to save space in vehicle electrical systems, typically used to mount individual fuses in cars, trucks, RVs, and DC-powered equipment.
  • Manufactured to withstand harsh environmental conditions with an integrated snap-on cover that offers splashproof protection, it also has LED indication to pinpoint when a particular fuse needs replacement.
  • For use with applications that call for an automotive Regular (ATO/ATC style) blade fuse, this holder can safely handle up to 30A, depending on the wire gauge.
Dimensions and 3D view
Dimensions
Length1.81
Height0.5
Width1.82
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.81
Height0.5
Width1.82
UnitInch
