Key Specifications and Ratings
6.3 x 32 mmFast actingCeramic fuseRetail Pack Quantity: 5PCS / Box Quantity: 5PCS
Voltage Rating250VAC
Current Rating300mA to 30A
Interrupt Rating750A AC
Features and Application

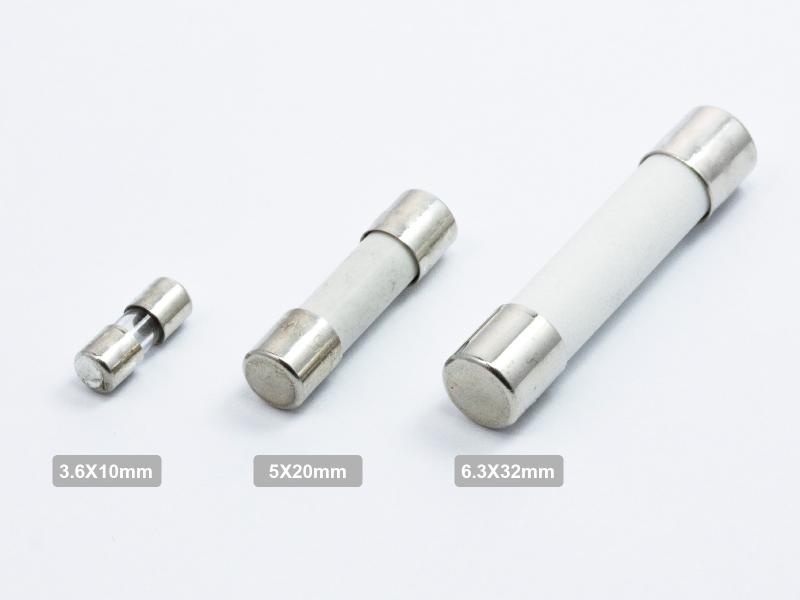

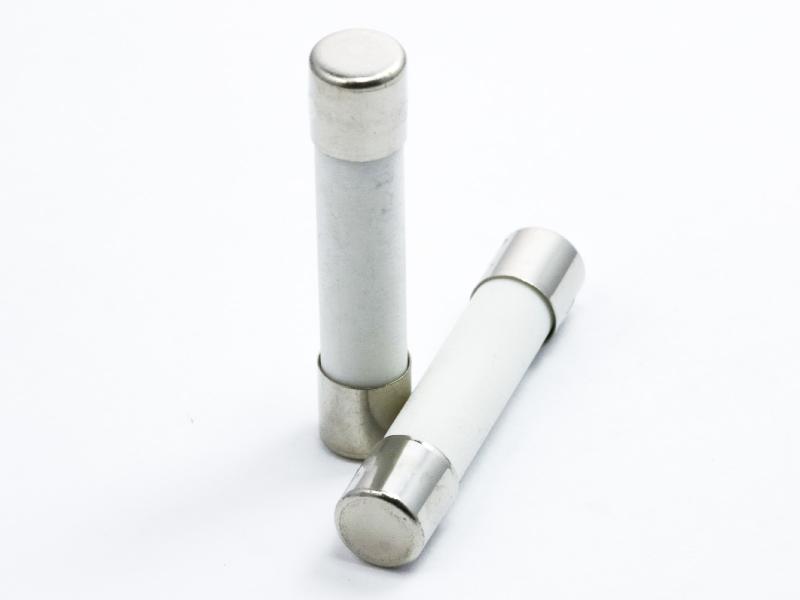

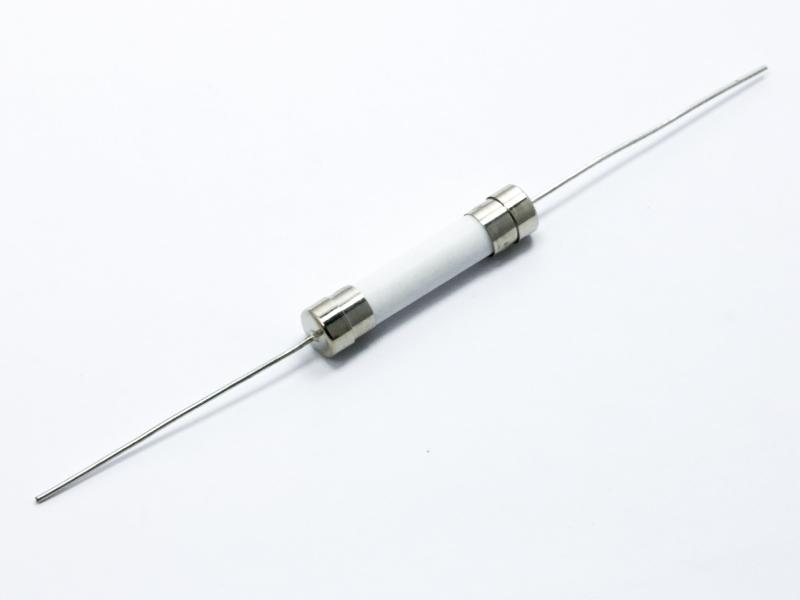

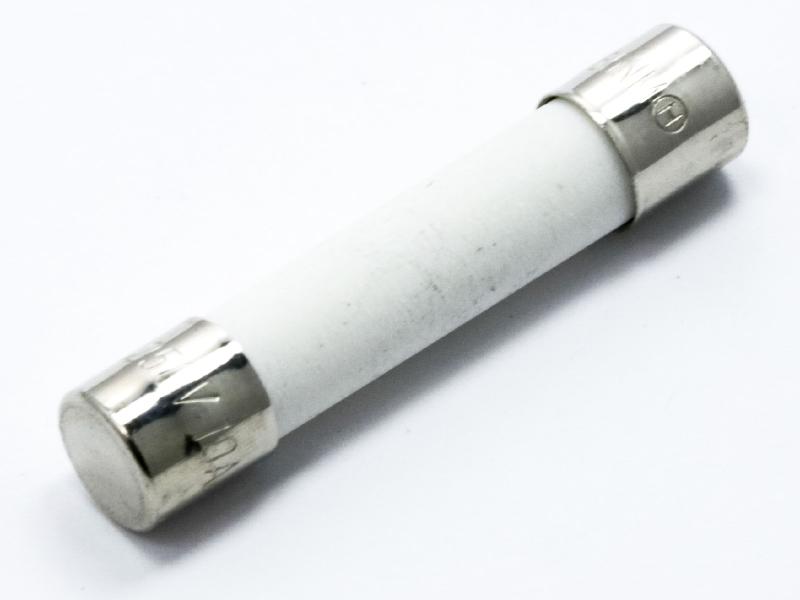

- 32mm long and 6.3mm in diameter, this fuse is fast acting with a ceramic body and is UL Listed/Recognized. Available with or without axial leads.
- Commonly used in applications that are sensitive to changes in the flow of electricity, such as home appliances. Designed to open within seconds of being exposed to overloads and short circuits.
- Well suited for applications where high currents may occur due to the strong nature of the ceramic material.

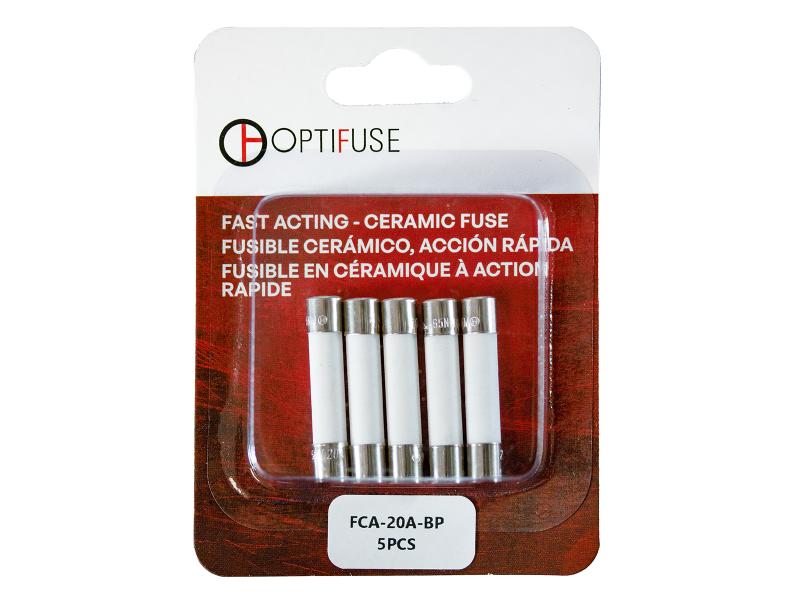

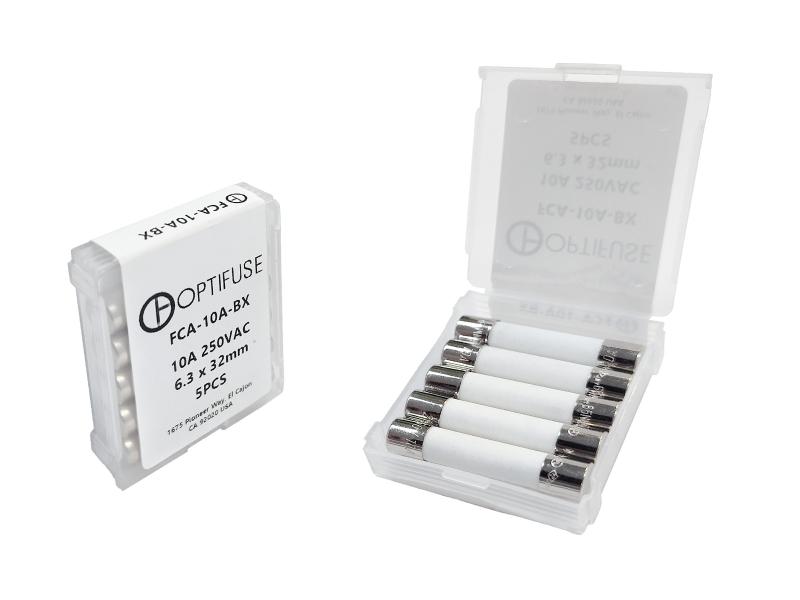

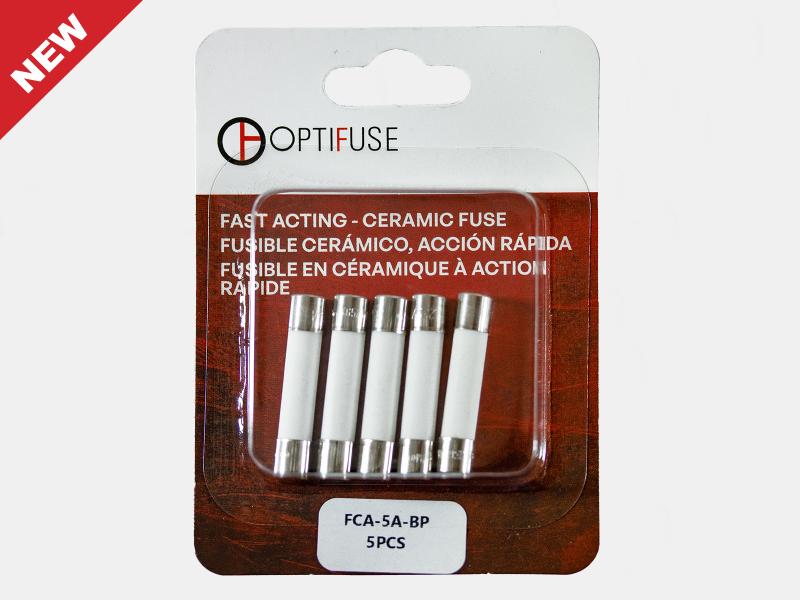

- NEW: Select products are available in pill boxes.
Dimensions and 3D view
Dimensions
Length0.2
Height1.25
Width0.2
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.2
Height1.25
Width0.2
UnitInch
