SCA 32x6.3mm Ceramic Fuse, Very Fast-Acting for Sensitive Loads

Disclaimer Notice

SCA 32x6.3mm Ceramic Fuse, Very Fast-Acting for Sensitive Loads

Disclaimer Notice
Ceramic - 6.3 x 32 mm - Very Fast Acting
curus certification image
iec 60127 certification image
RoHS certification image
REACH certification image
What is 3D CAD?

A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.

Key Specifications and Ratings
6.3 x 32 mmVery fast acting & High breaking capacityCeramic fuseRetail Pack Quantity: 5PCS / Box Quantity: 5PCS
Voltage Rating500VAC
Current Rating200mA to 25A
Interrupt Rating10000A AC
Features and Application

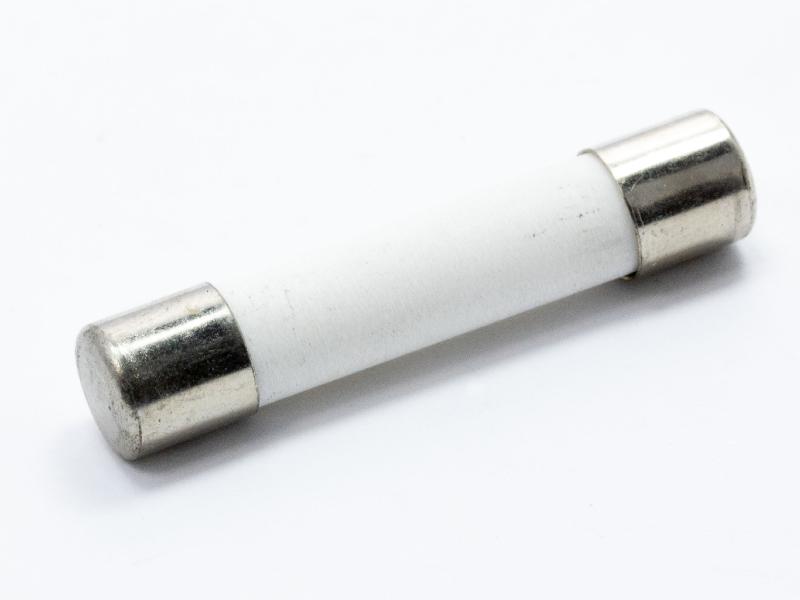

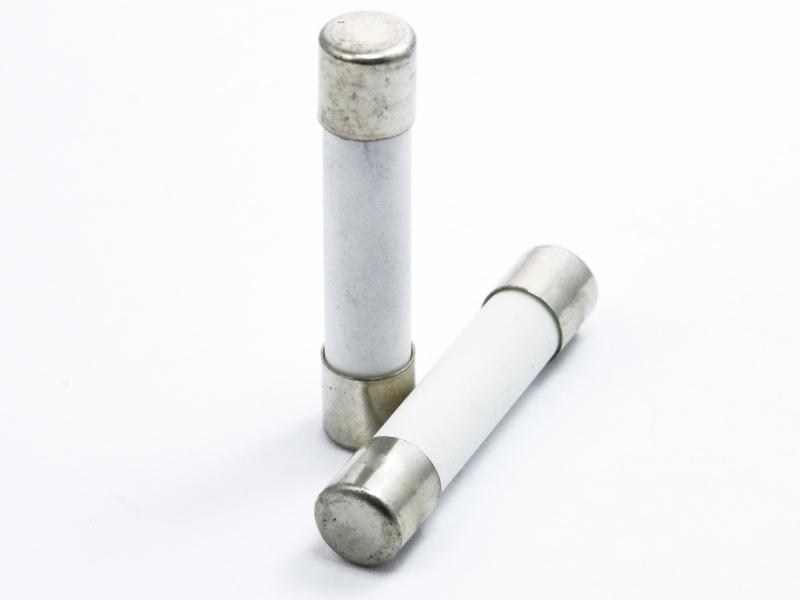

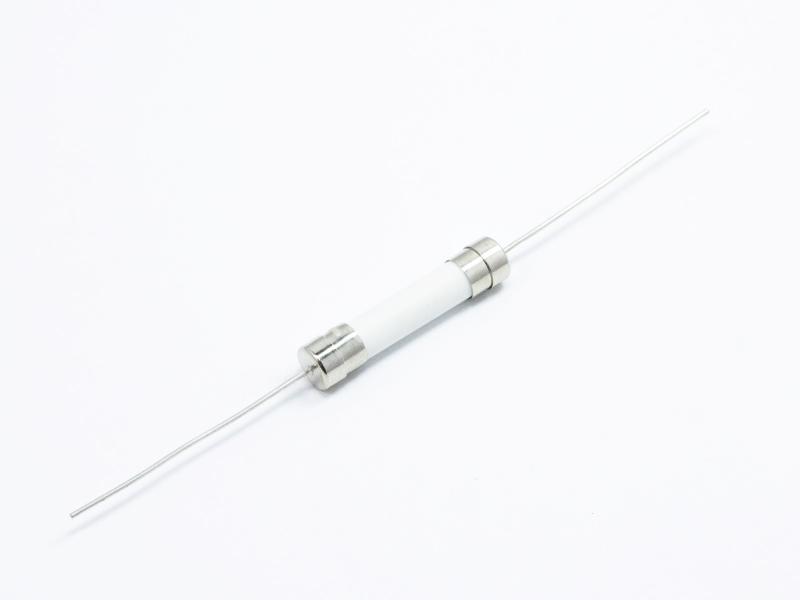

  • 32mm long and 6.3mm in diameter, this fuse is very fast acting, built of ceramic, and is UL Recognized. Available with or without axial leads
  • The primary use for this fuse is the protection of sensitive equipment such as rectifiers, SCR and transistors.
  • Well suited for applications where high currents may occur due to the strong nature of the ceramic material.
  • NEW: Select products are available in pill boxes.
Dimensions and 3D view
Dimensions
Length0.2
Height1.25
Width0.2
UnitInch
What is 3D CAD?

A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.

Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.2
Height1.25
Width0.2
UnitInch
What is 3D CAD?

A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
