Key Specifications and Ratings
Regular (ATO/ATC style)UL recognizedHigher voltage
Voltage Rating58VDC
Current Rating500mA to 40A
Interrupt Rating 1000A DC
Features and Application

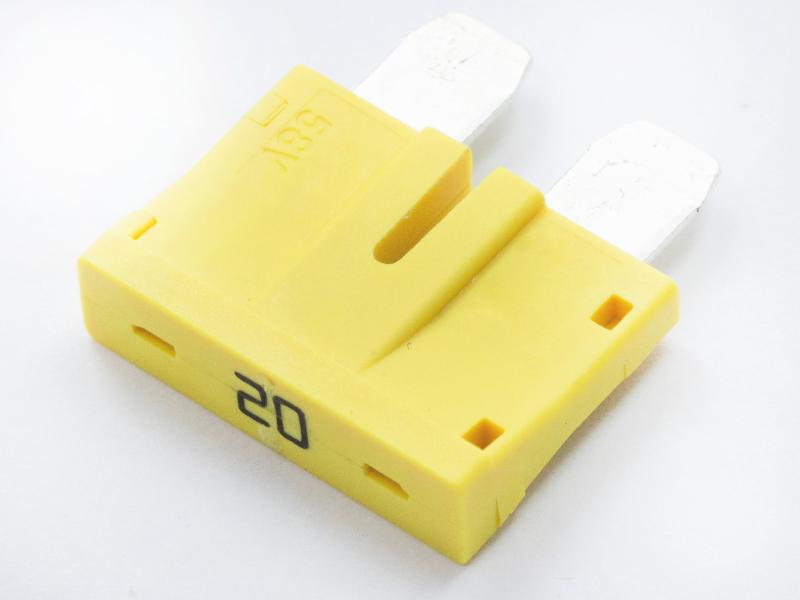

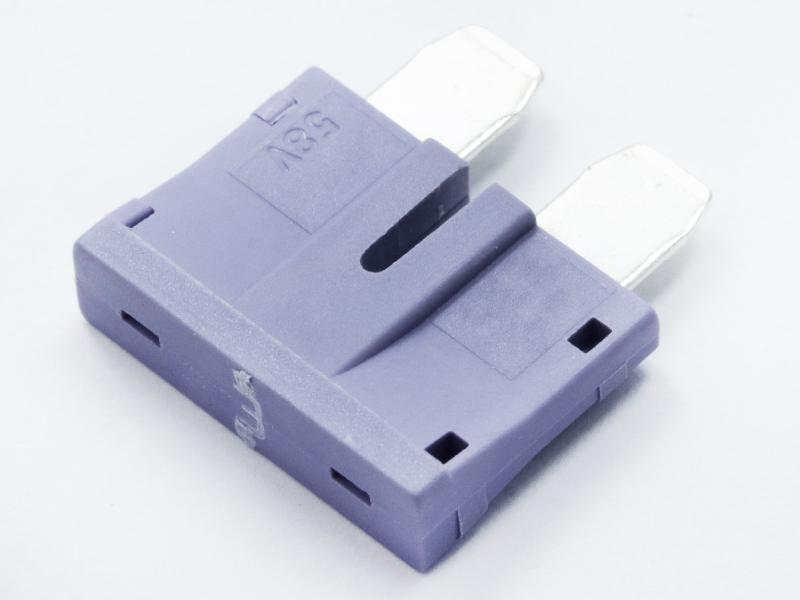

- Standard blade fuse style that is interchangeable with ATO® and ATC®, provided the amperage rating is the same.
- UL recognized and intended to use in higher voltage systems that are designed to reduce the current requirements of modern vehicles with increasing power needs. Raising the voltage helps to reduce the size of the wiring and overall weight of vehicle helping to increase the efficiency and gas mileage.

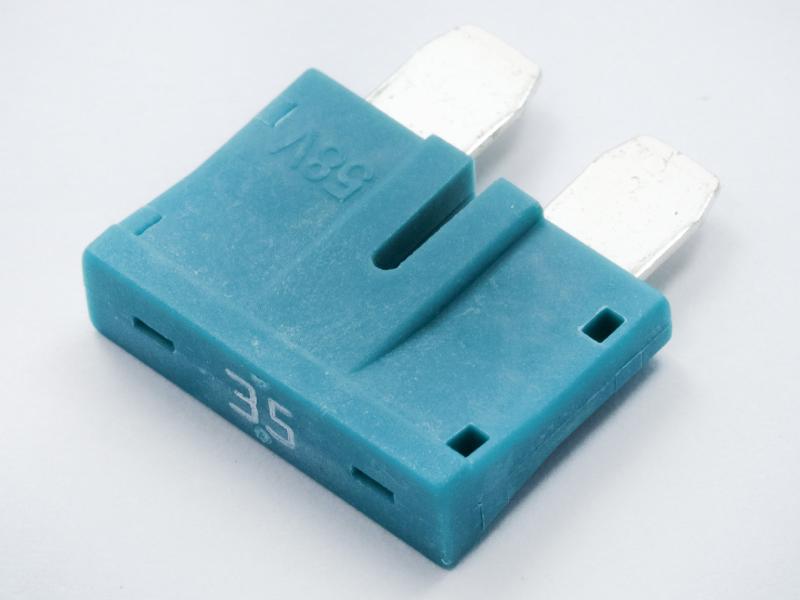

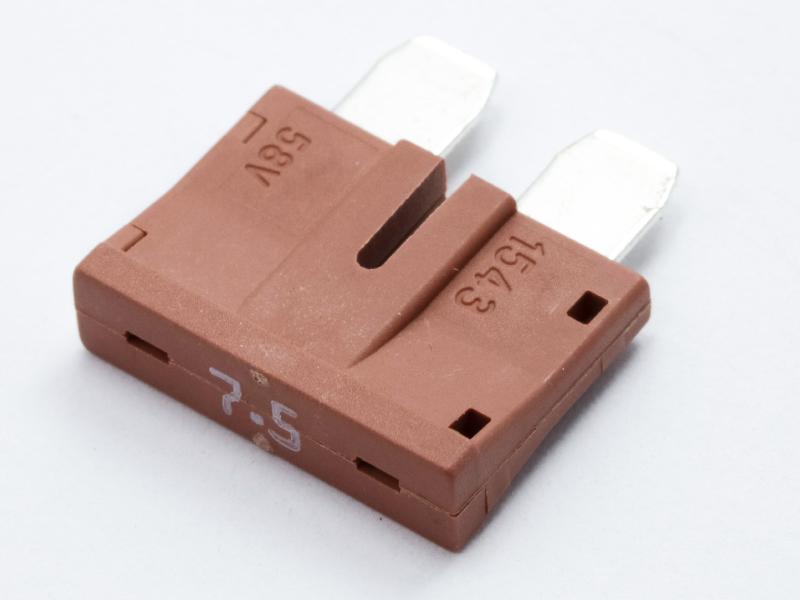

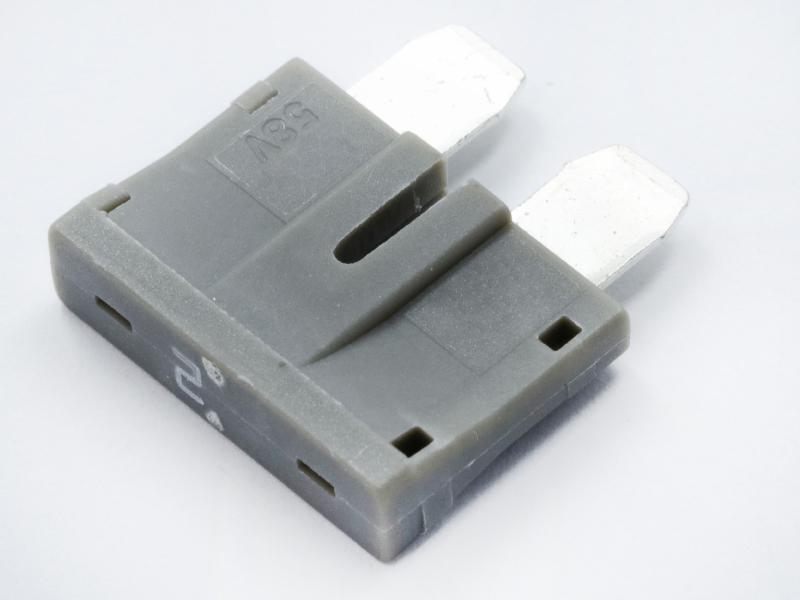

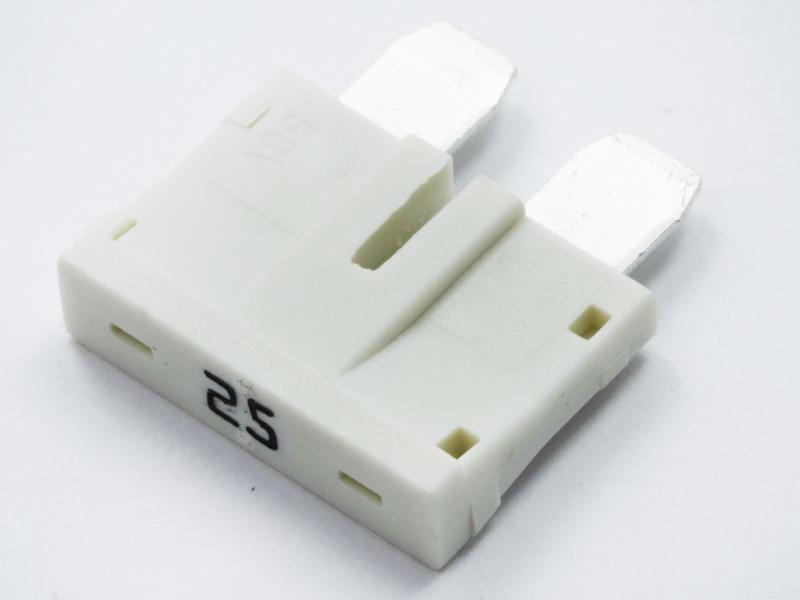

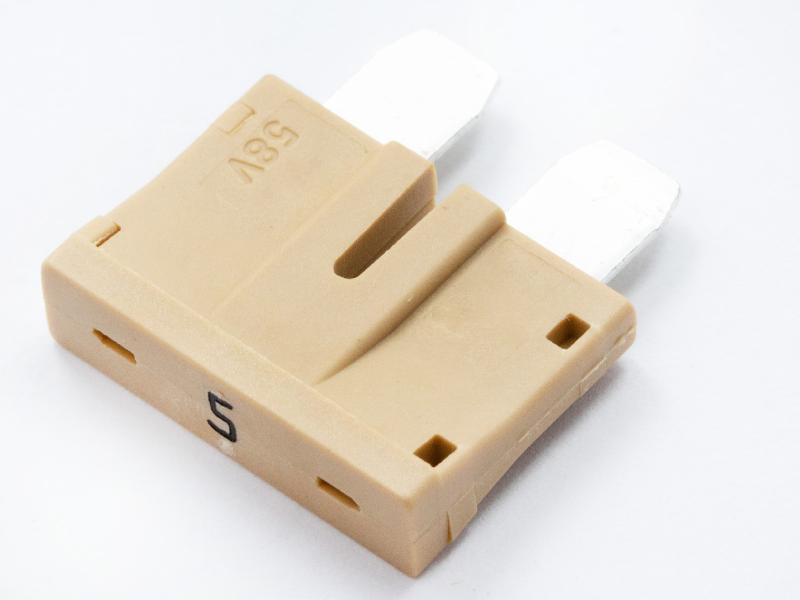

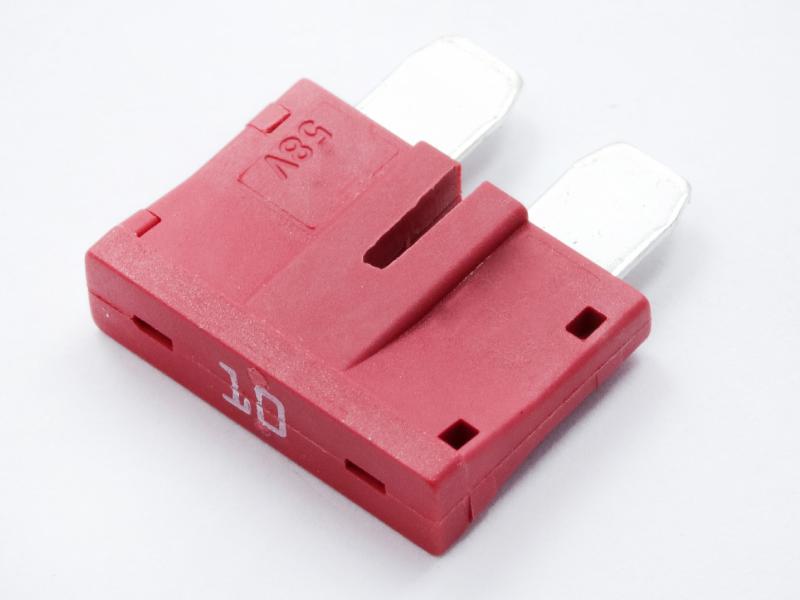

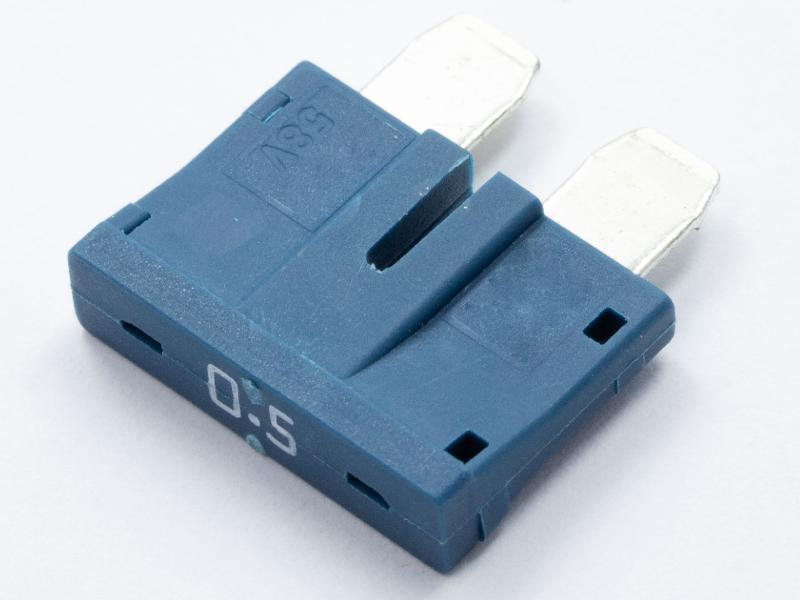

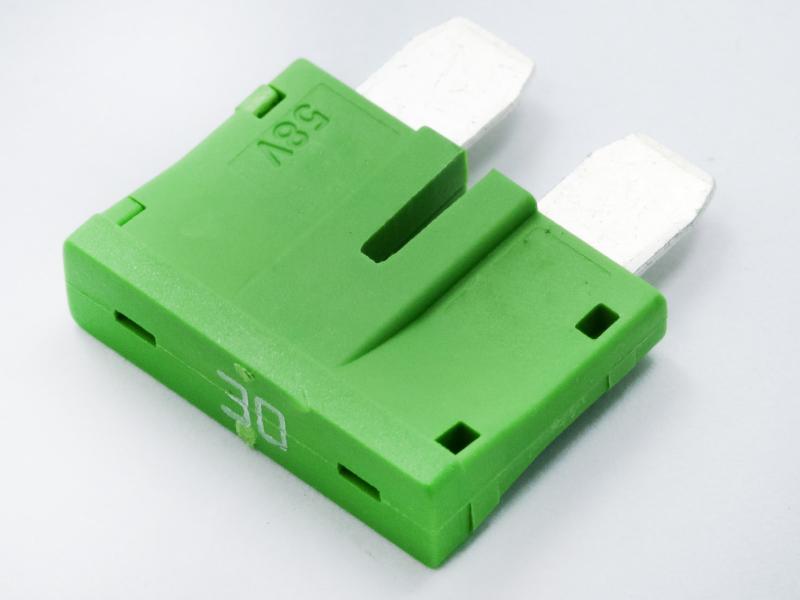

- Designed with industry-standard color coding for easy amperage identification, this fuse can be used in electric golf carts that run on 36V or 48V battery cells.
UL File
Dimensions and 3D view
Dimensions
Length0.75
Height0.79
Width0.2
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.75
Height0.79
Width0.2
UnitInch
