Key Specifications and Ratings

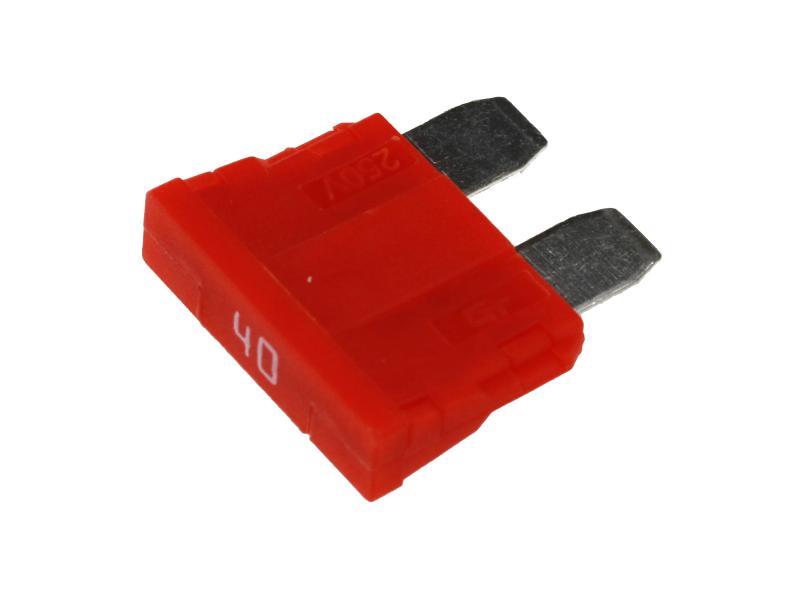

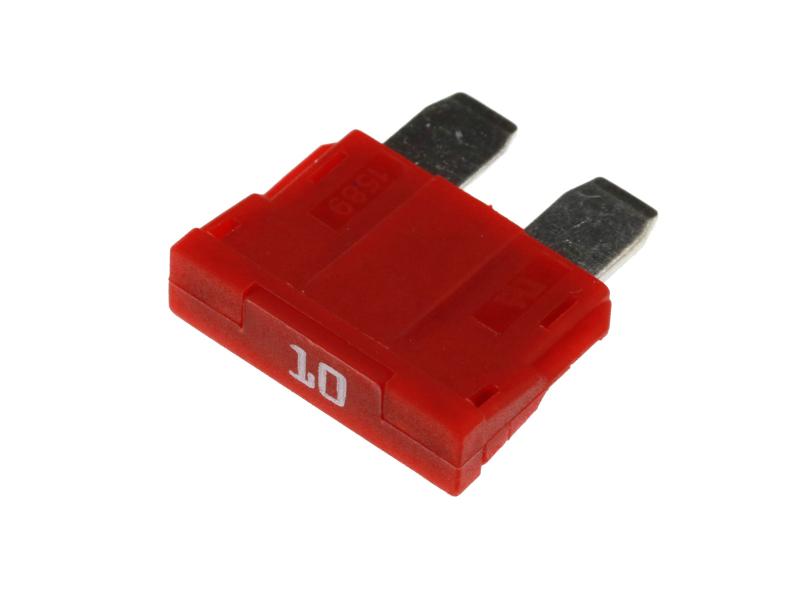

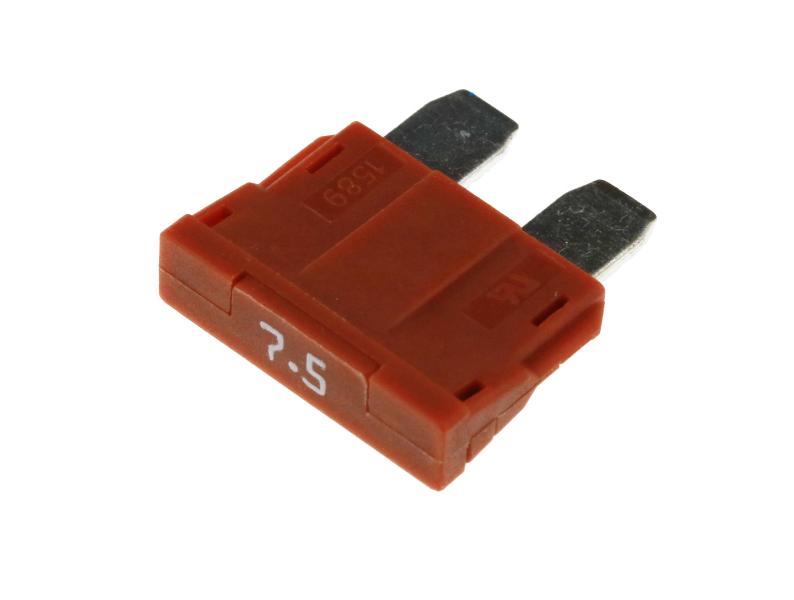

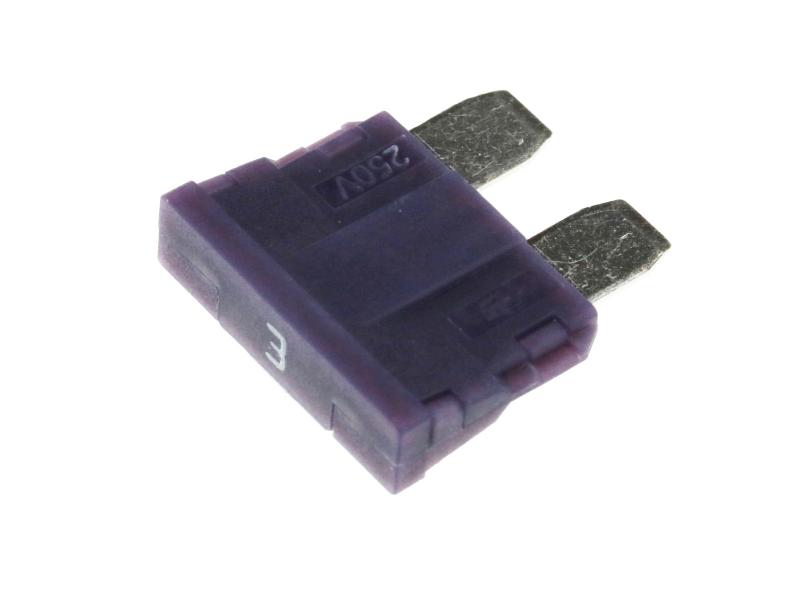

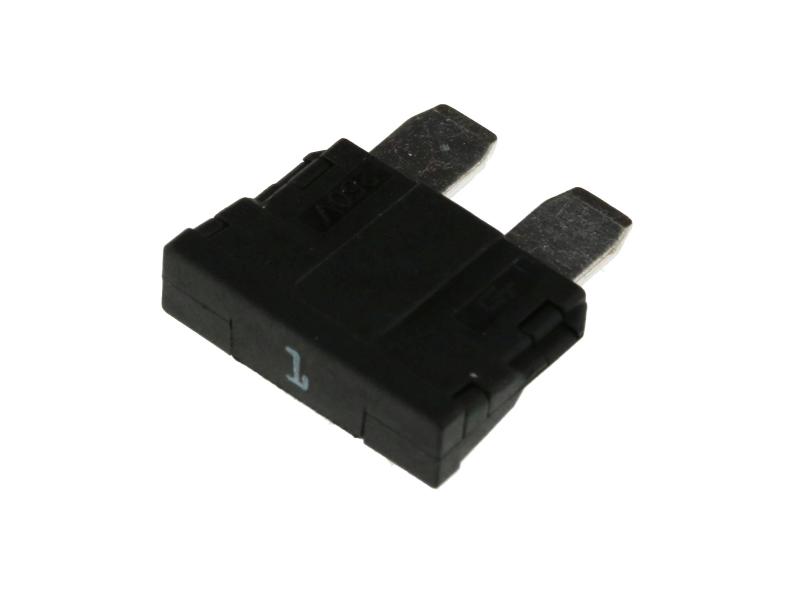

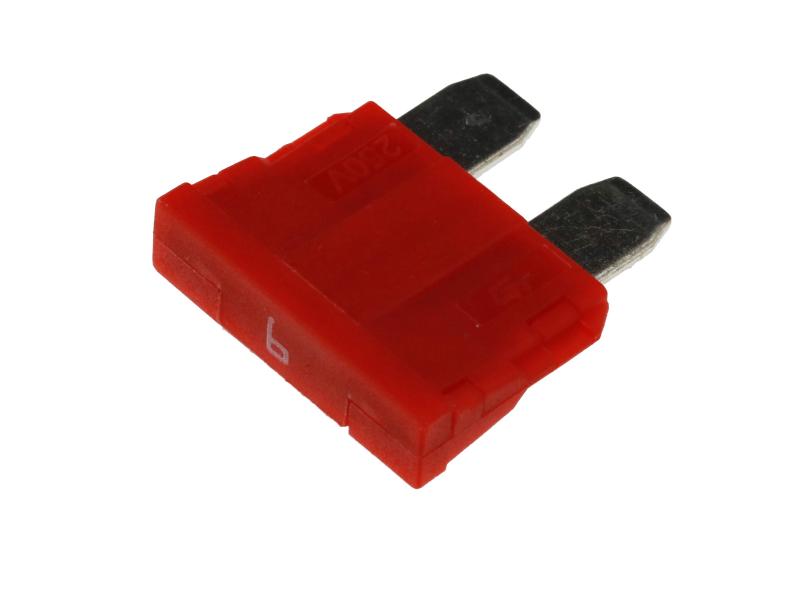

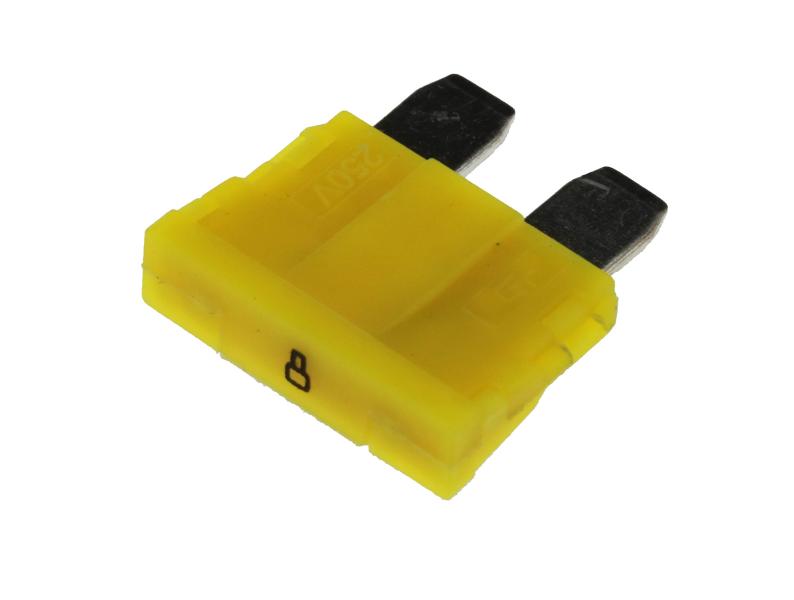

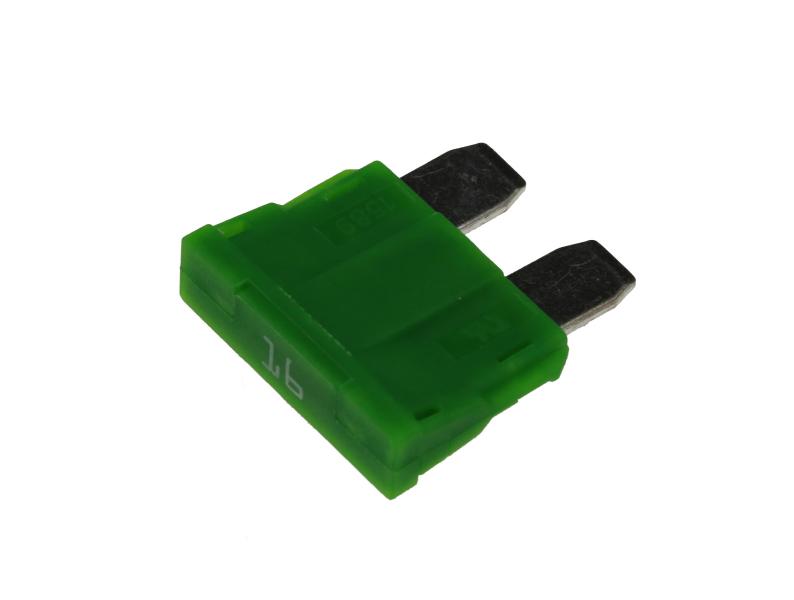

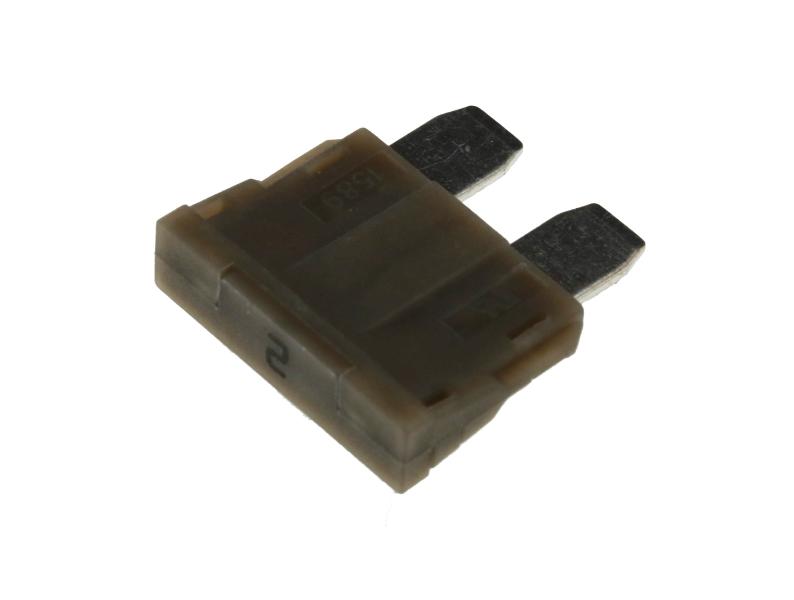

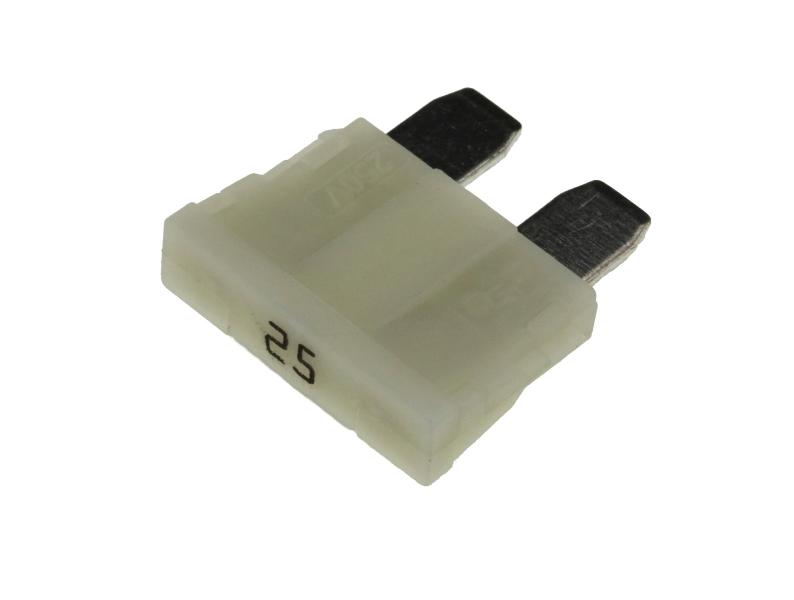

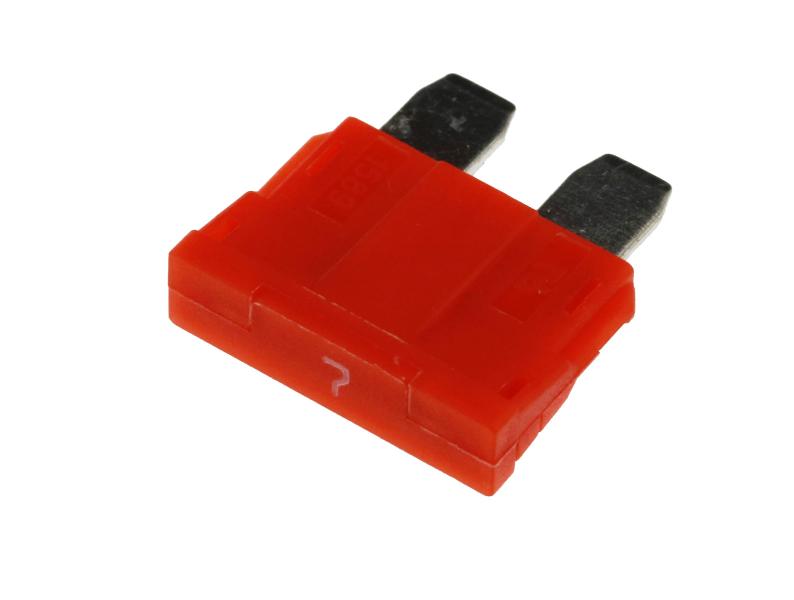

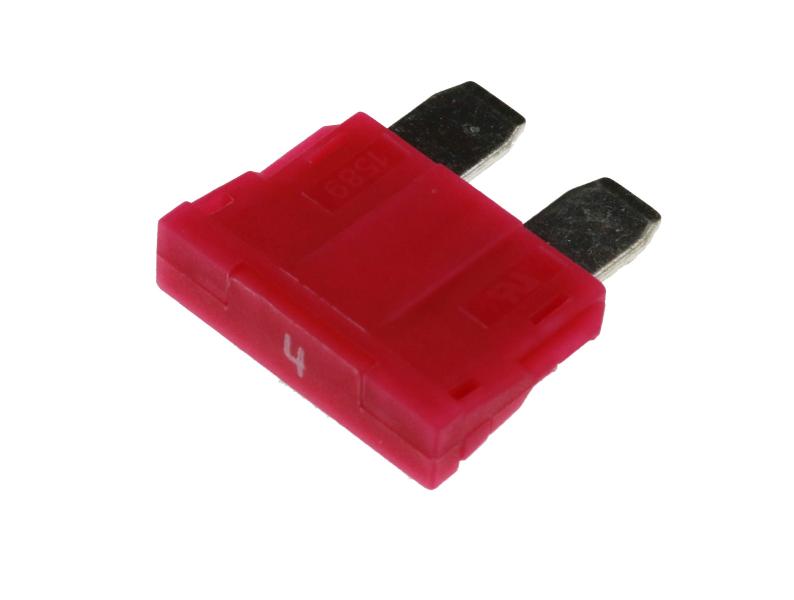

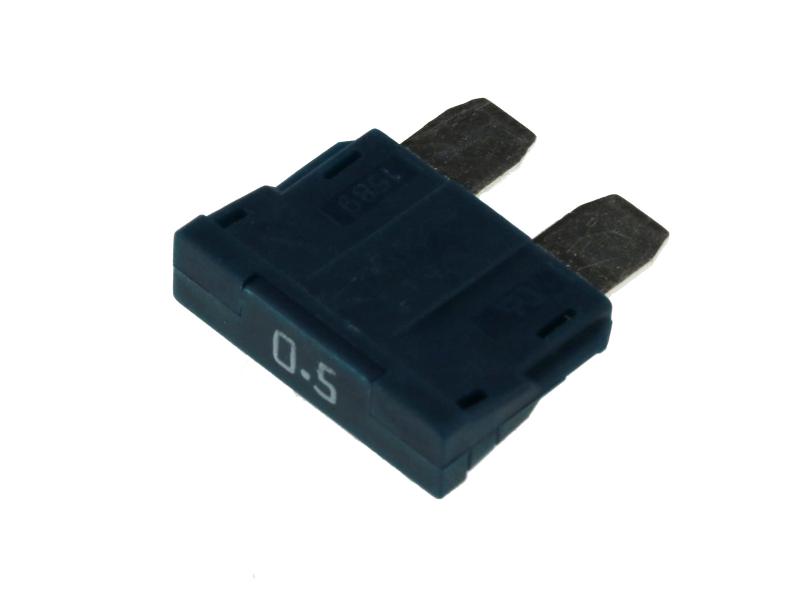

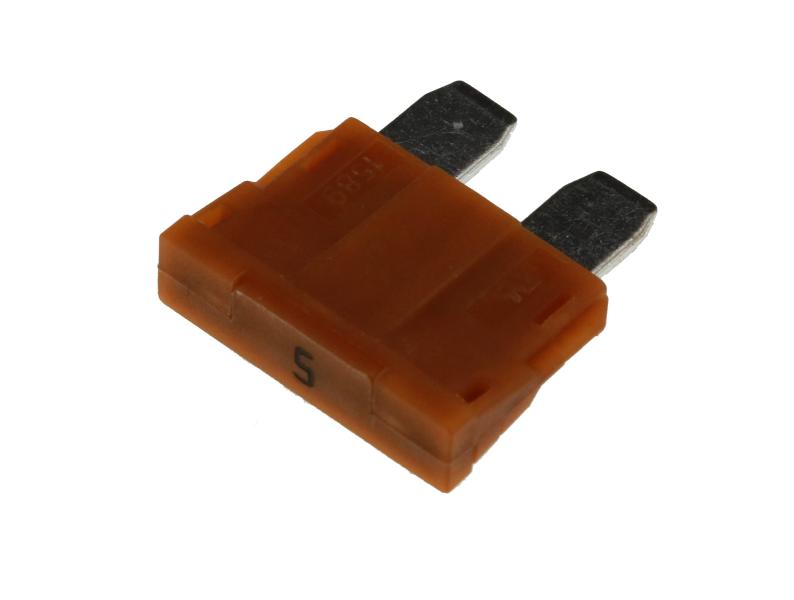

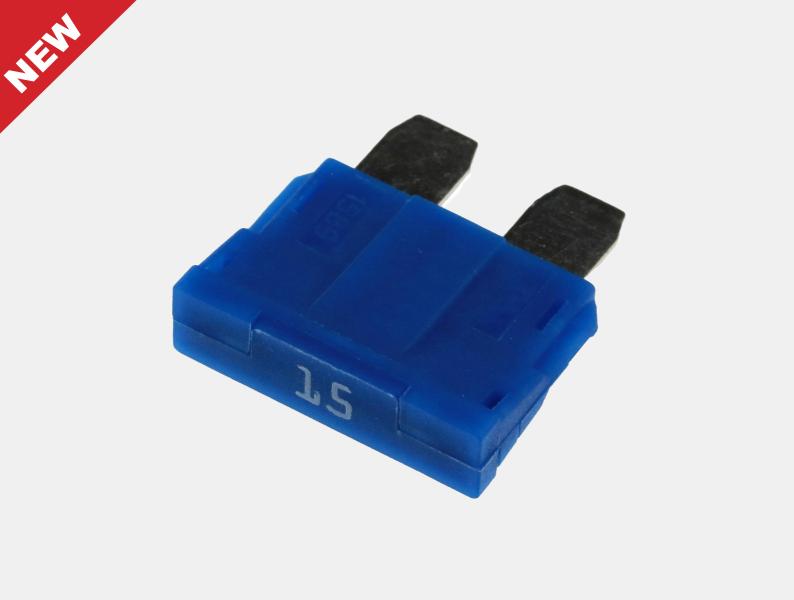

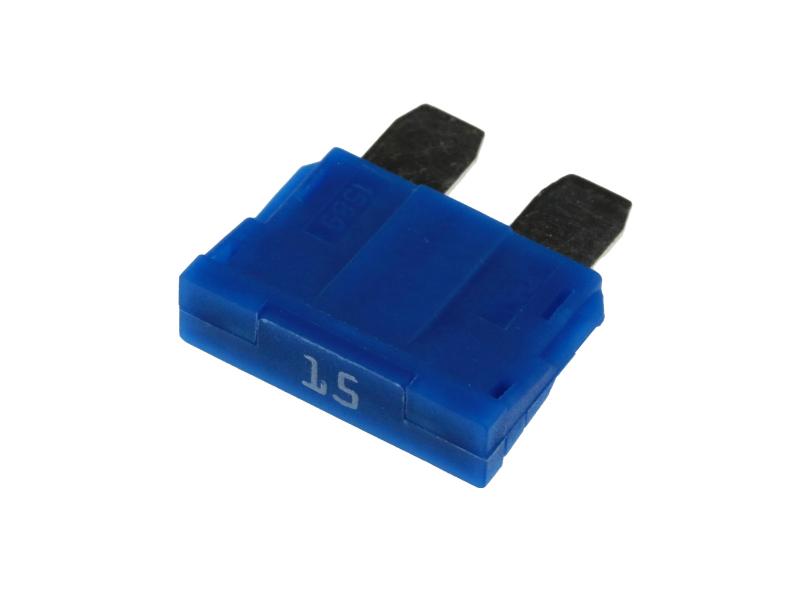

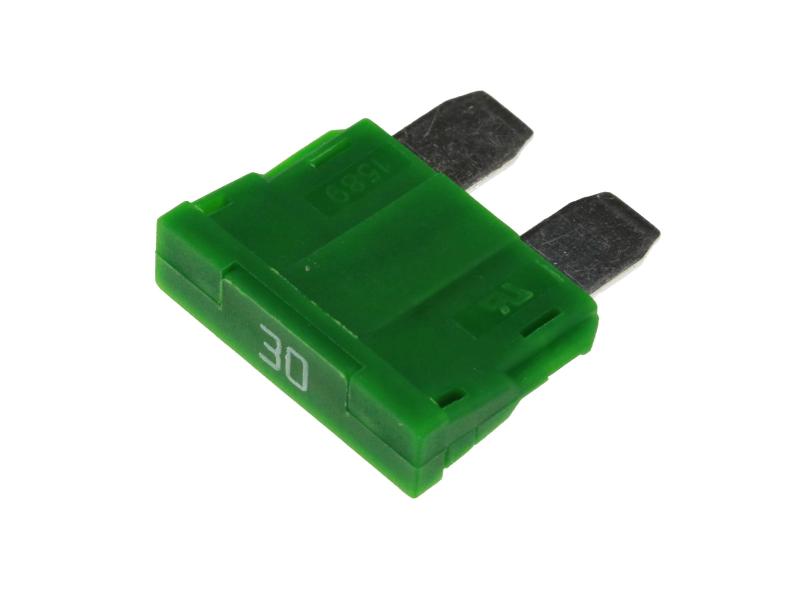

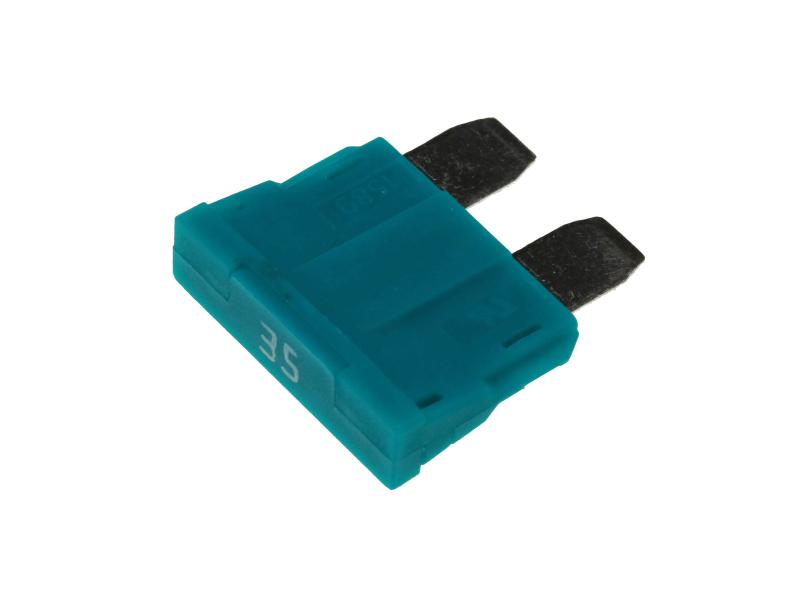

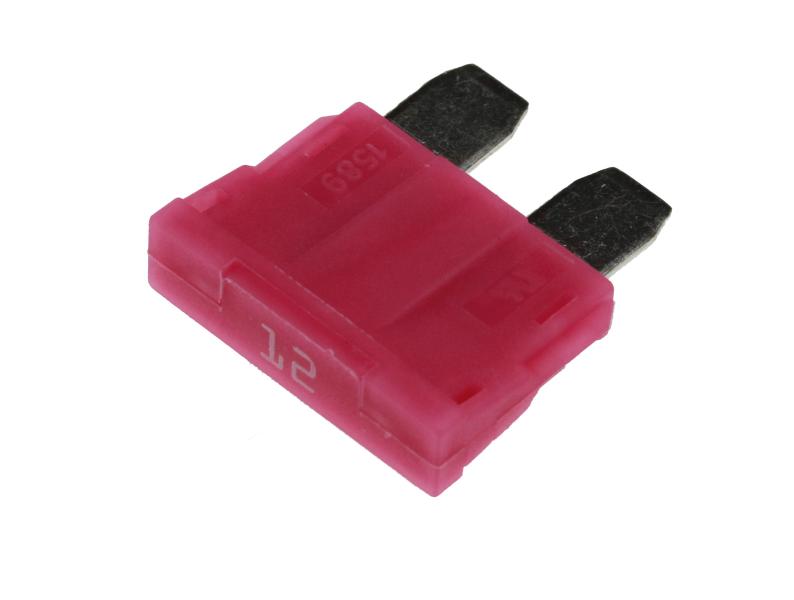

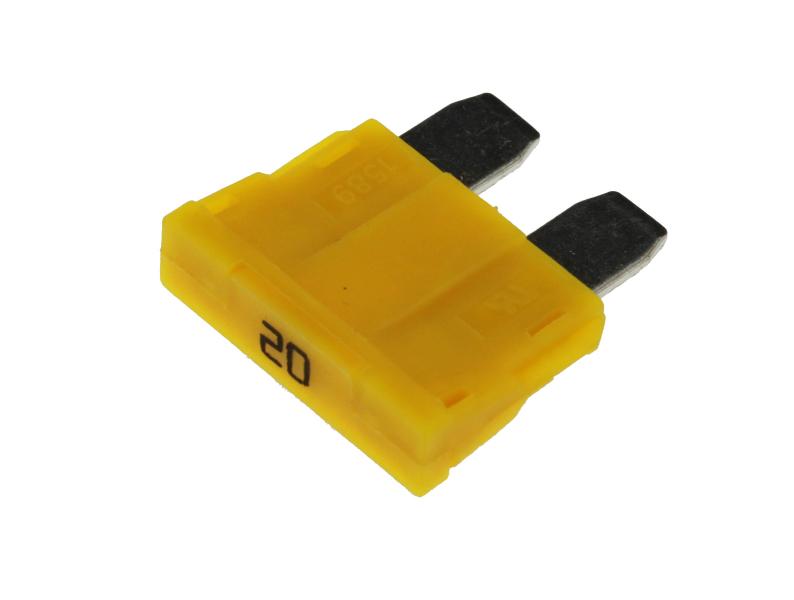

Regular (ATO/ATC style)UL recognizedHighest voltage blade fuse available in the market
Voltage Rating250VAC 80VDC

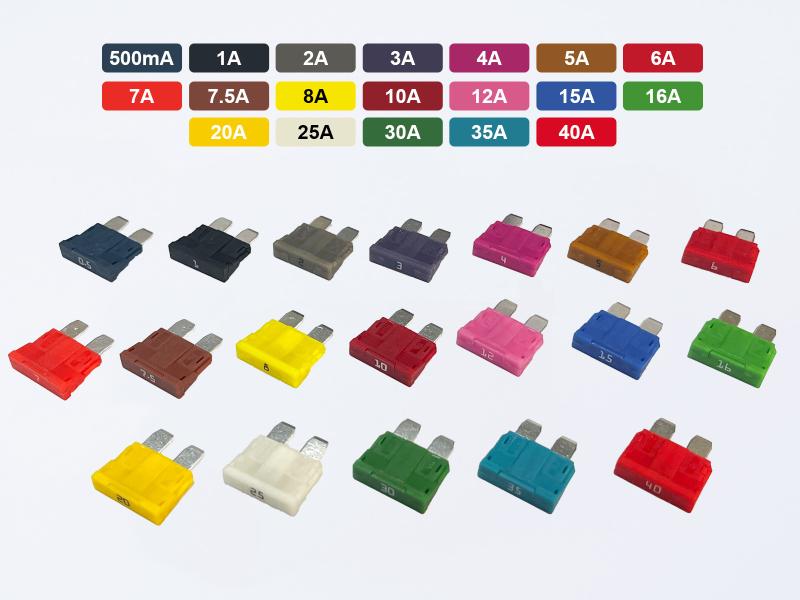

Current Rating500mA to 40A
Interrupt Rating400A AC 1000A DC
Features and Application
- Highest voltage automotive blade fuse available in the market. This UL recognized blade fuse is rated for 80VDC and 250VAC. Designed for vehicles with advanced electrical architectures, including electric vehicles and hybrid systems.
- This fuse is ideal for protecting AC voltage automotive systems and onboard equipment from overcurrent situations, such as onboard chargers, auxiliary systems, and HVAC systems.
- Additionally, its 80VDC rating makes it compatible with EVs featuring complex power distribution systems and increased power demands from electronic components and accessories.
UL File
Dimensions and 3D view
Dimensions
Length0.75
Height0.79
Width0.2
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.75
Height0.79
Width0.2
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
