BLR-I-906-G


BLR-I-906-G

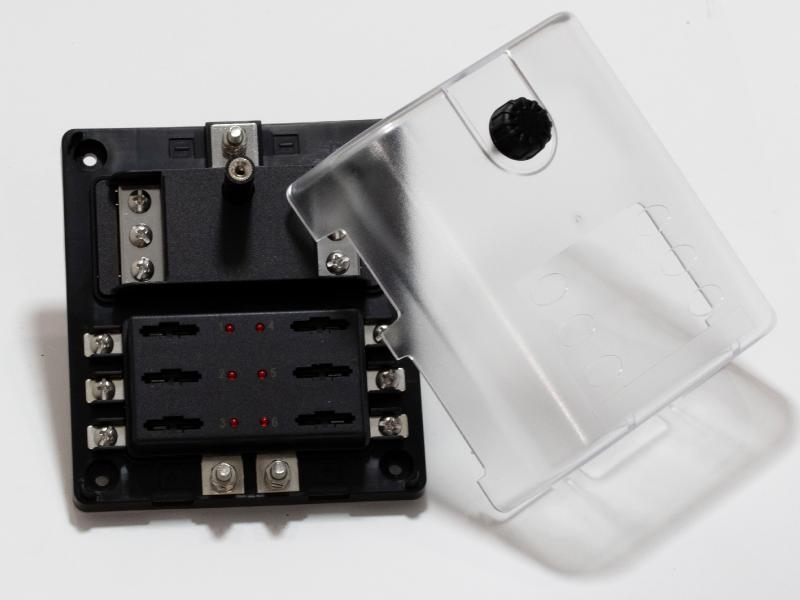

Fuse Block - ATO/ATC Style - LED - Ground - Split Bus - 6P
RoHS certification image
REACH certification image
Key Specifications and Ratings
Consolidates 6 circuitsLED blown fuse indicatorWith ground bus
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
  • This 6 position Regular (ATO/ATC style) blade fuse block supplies power and grounding to new accessories, with a rated current of 30A per position and 100A total for the fuse block.
  • The split bus design allows for two isolated groups of circuits, which is convenient to combine switched and unswitched circuits on the same block.
  • Built with an LED light for each circuit that illuminates when a circuit opens and a fuse needs to be replaced.
  • Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles, and comes with an insulating cover that offers protection against short circuits, dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length5.2
Height1.5
Width4.65
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length5.2
Height1.5
Width4.65
UnitInch
