Key Specifications and Ratings
Consolidates 2 circuitsComes with insulating coverInterlocking pins to create a multi-fuse block
Voltage Rating32VDC
Current Rating400A
Features and Application
- Intended to hold two MGGA / MGGA-B (M8) bolt-on fuses, with interlocking pins on the sides that allow for connecting additional BLC-08-2 fuse blocks to create a multi-fuse block.
- As a high-amp block, it is ideal for loads up to 400A associated with DC battery operated equipment.

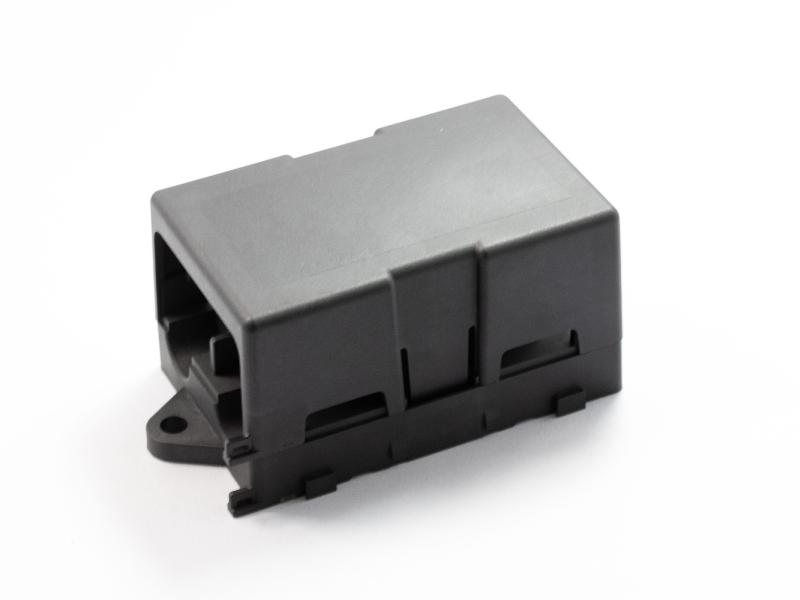

- Its insulating cover protects against accidental short circuits and prevents anything from accidentally touching the exposed terminal studs.
Dimensions and 3D view
Dimensions
Length5.08
Height2.11
Width2.6
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length5.08
Height2.11
Width2.6
UnitInch
