Key Specifications and Ratings
Comes with insulating coverDesigned for heavy duty loadsInterlocking pins to create a multi-fuse block
Voltage Rating250VAC 250VDC
Current Rating500A
Features and Application

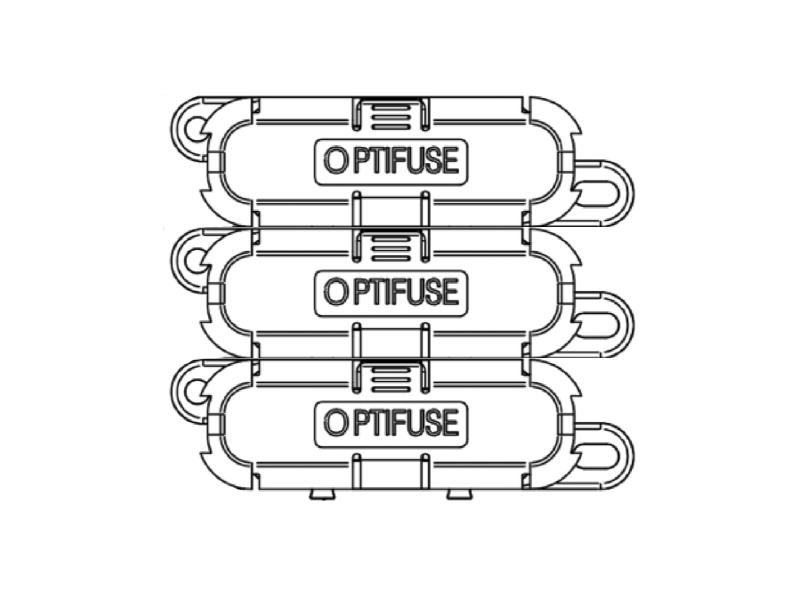

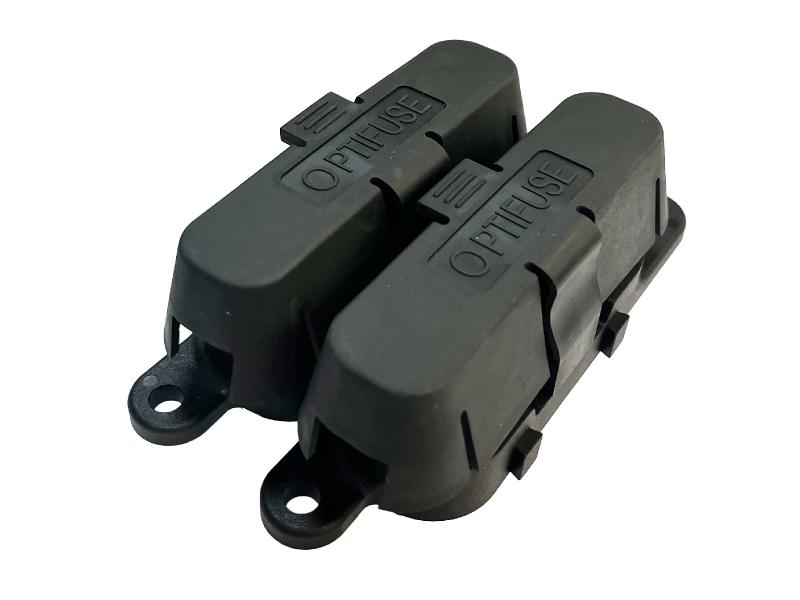

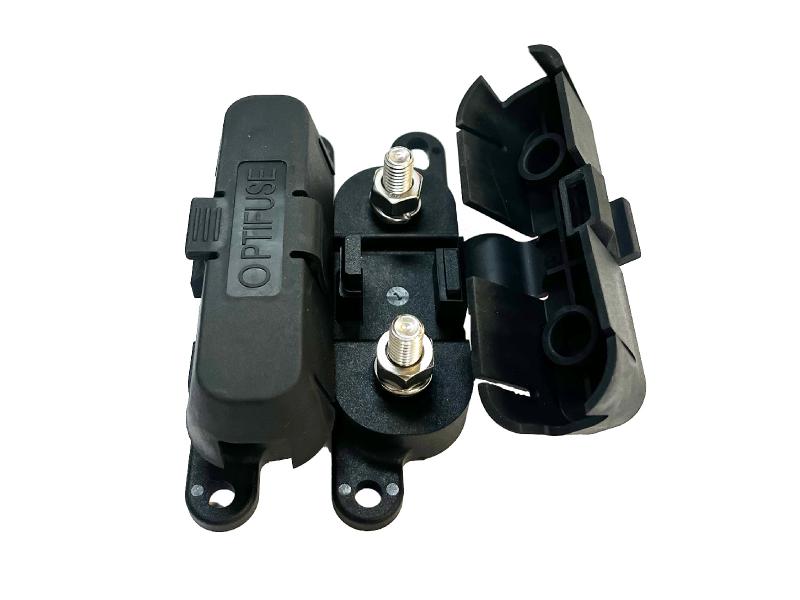

- Designed for MGGA / MGGA-B (M8) bolt-on fuses rated up to 500A, with interlocking pins on the sides that allow for connecting additional BLC-10 fuse blocks to create a multi-fuse block.
- As a high-amp fuse block it is ideal for the heavy-duty loads associated with DC battery operated equipment.

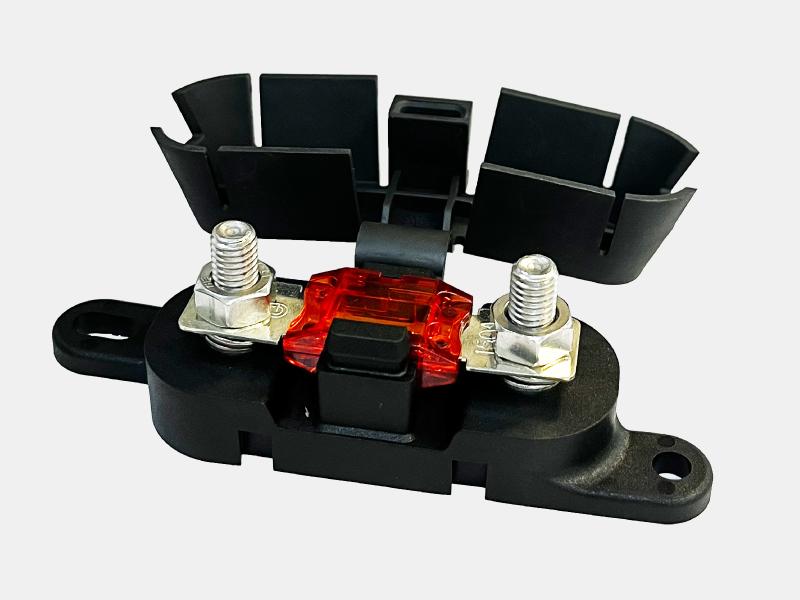

- Its insulating cover protects against accidental short circuits and prevents anything from accidentally touching the exposed terminal studs.
Dimensions and 3D view
Dimensions
Length4.78
Height1.61
Width1.43
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length4.78
Height1.61
Width1.43
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
