Key Specifications and Ratings
Bracket to gang multiple holders together Various wire gauge, length and colors availableAvailable with custom body color
Voltage Rating250VAC 125VDC
Current Rating15A to 30A
Wire Gauge#12 - #16AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

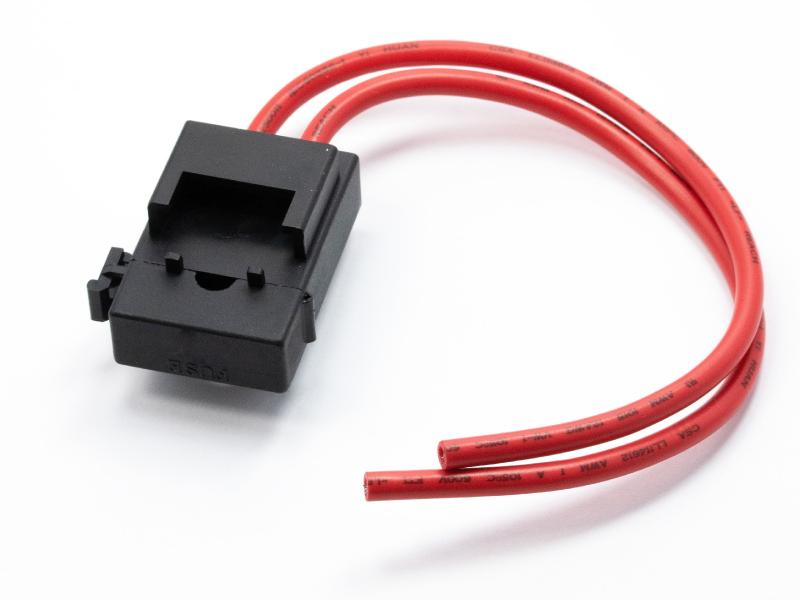

- In-line fuse holder designed to help to save space in vehicle electrical systems, typically used to mount individual fuses in cars, trucks, RVs, and DC-powered equipment.
- Compatible with 32V, 58V, 80V and 125VDC/250VAC Regular (ATO/ATC style) blade fuses, this holder can safely handle up to 30A, depending on the wire gauge.

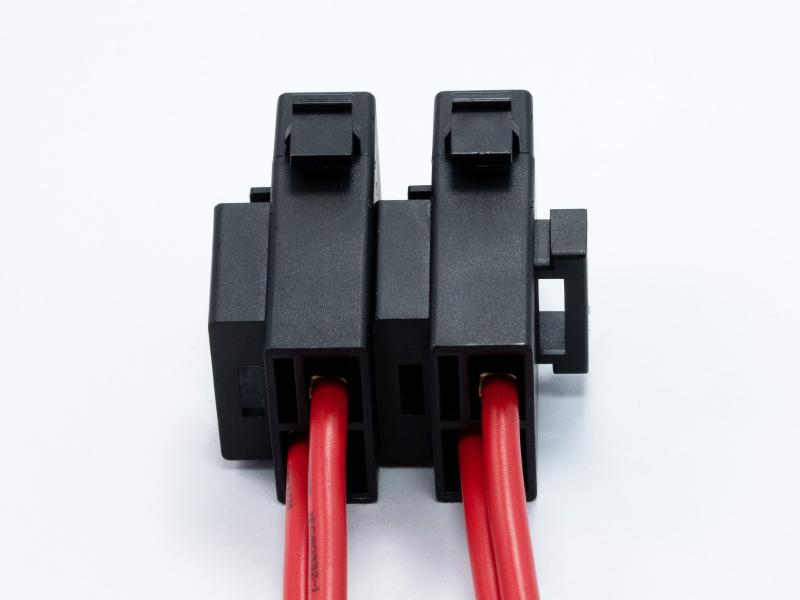

- Manufactured to withstand harsh conditions with a splashproof, snap-on cover, its housing features an attached bracket to gang multiple holders together.
Dimensions and 3D view
Dimensions
Length1
Height0.9
Width0.48
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1
Height0.9
Width0.48
UnitInch
