Key Specifications and Ratings
Splash-proof cap (IP 65)Various wire gauge, length and colors availableAvailable with custom body colorRetail Pack Quantity: 1PC
Voltage Rating250VAC 125VDC
Current Rating10A to 40A
Wire Gauge#10 - #18AWG
Wire ColorsBlack, Red, Yellow
Wire Length10 Inches
Features and Application

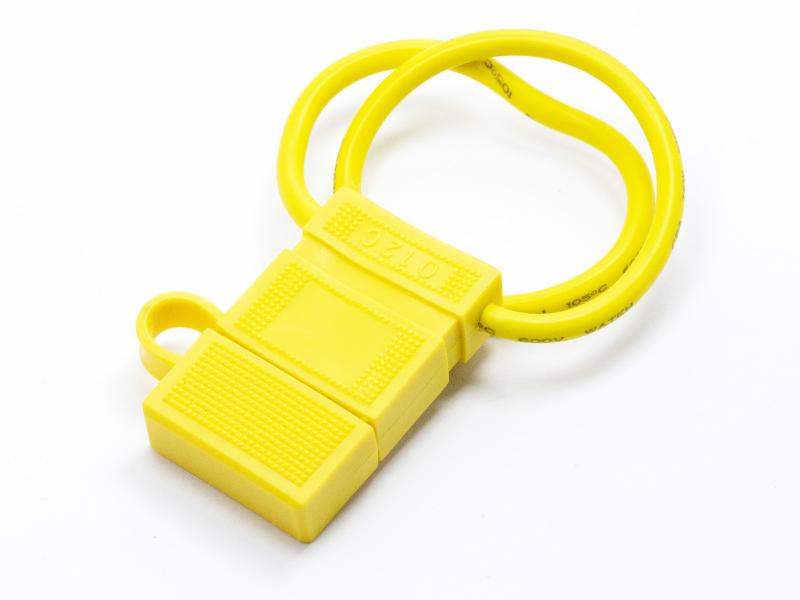

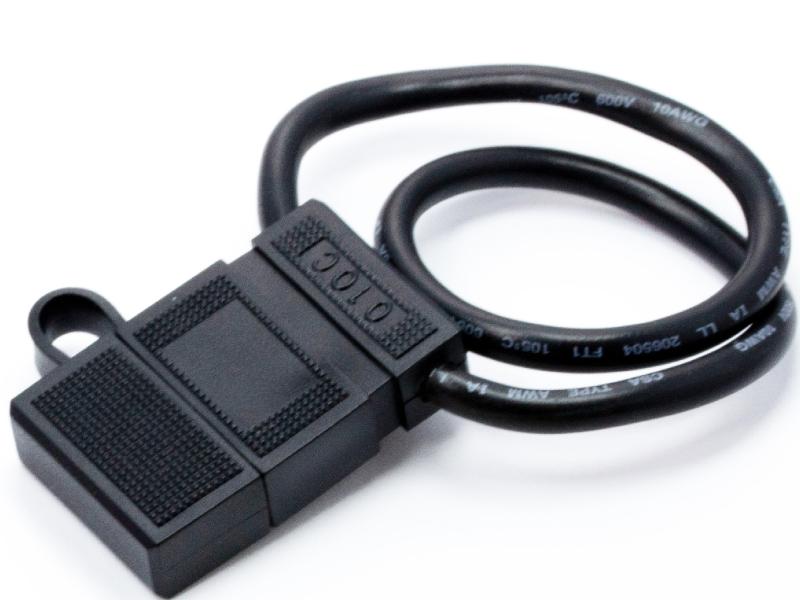

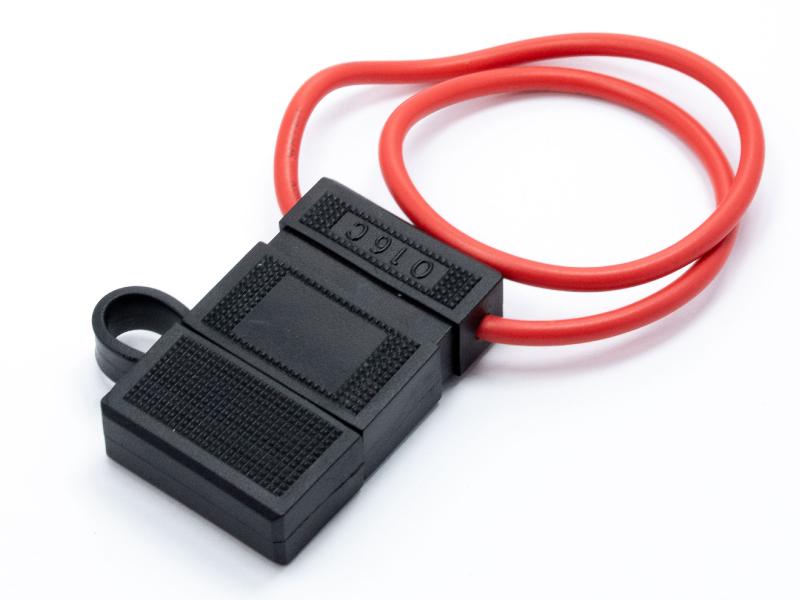

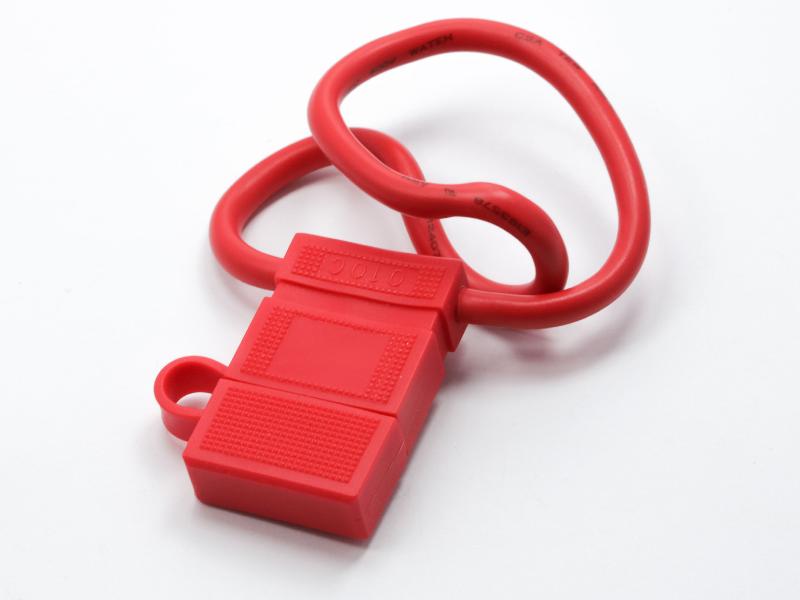

- In-line fuse holder designed to help save space in vehicle electrical systems.
- Features an integrated snap-on cover that helps protect the fuse from water, dust, and other airborne pollutants, with an IP65 rating that makes it ideal for both automotive and marine applications.
- Compatible with 32V, 58V, 80V and 125VDC/250VAC Regular (ATO/ATC style) blade fuses, this holder can safely handle up to 30A, depending on the wire gauge.

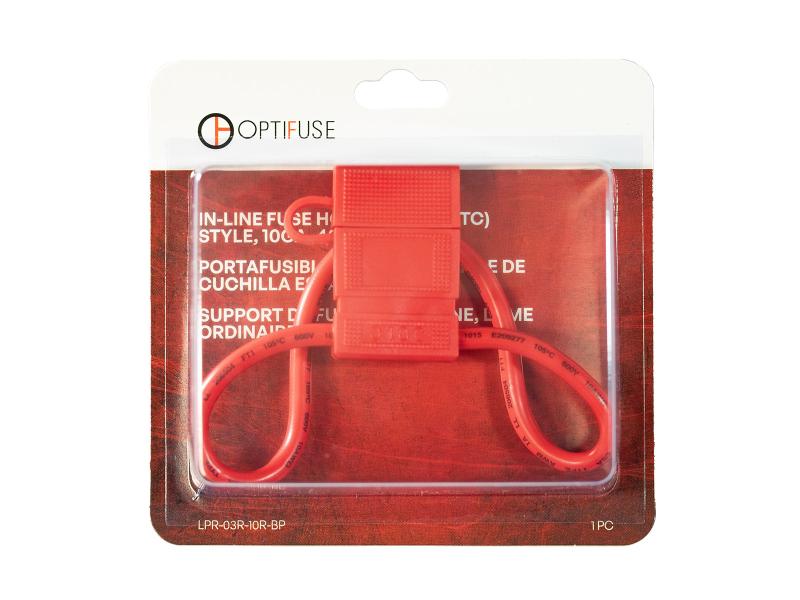

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length1.09
Height0.39
Width1.73
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.09
Height0.39
Width1.73
UnitInch
