Key Specifications and Ratings
Accepts #22-18 AWGSplice-in designNo cutting or splicing requiredRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating10A
Features and Application

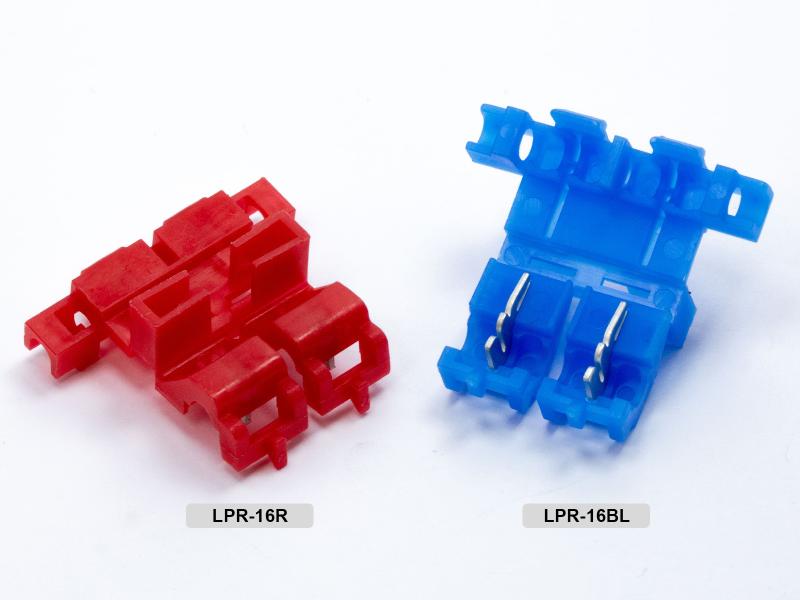

  • Regular (ATO/ATC style) blade fuse holder that features a self-stripping design to enable quick installation of a fuse into a circuit without cutting and splicing.

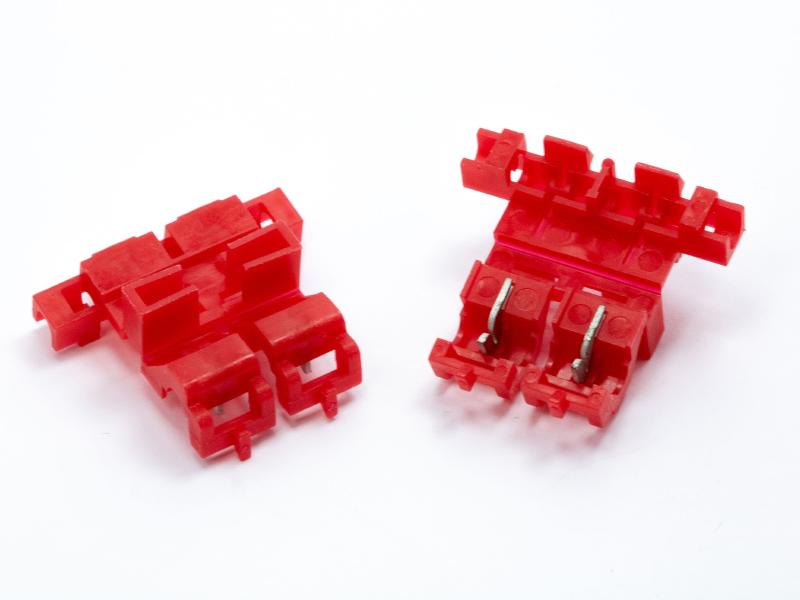

  • Easily install, remove or re-splice the holder by inserting the wire on each side and then folding the splicing arm over for self-stripping and self-tapping connection.
  • Use it with 22AWG to 18AWG wire leads.
  • NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.

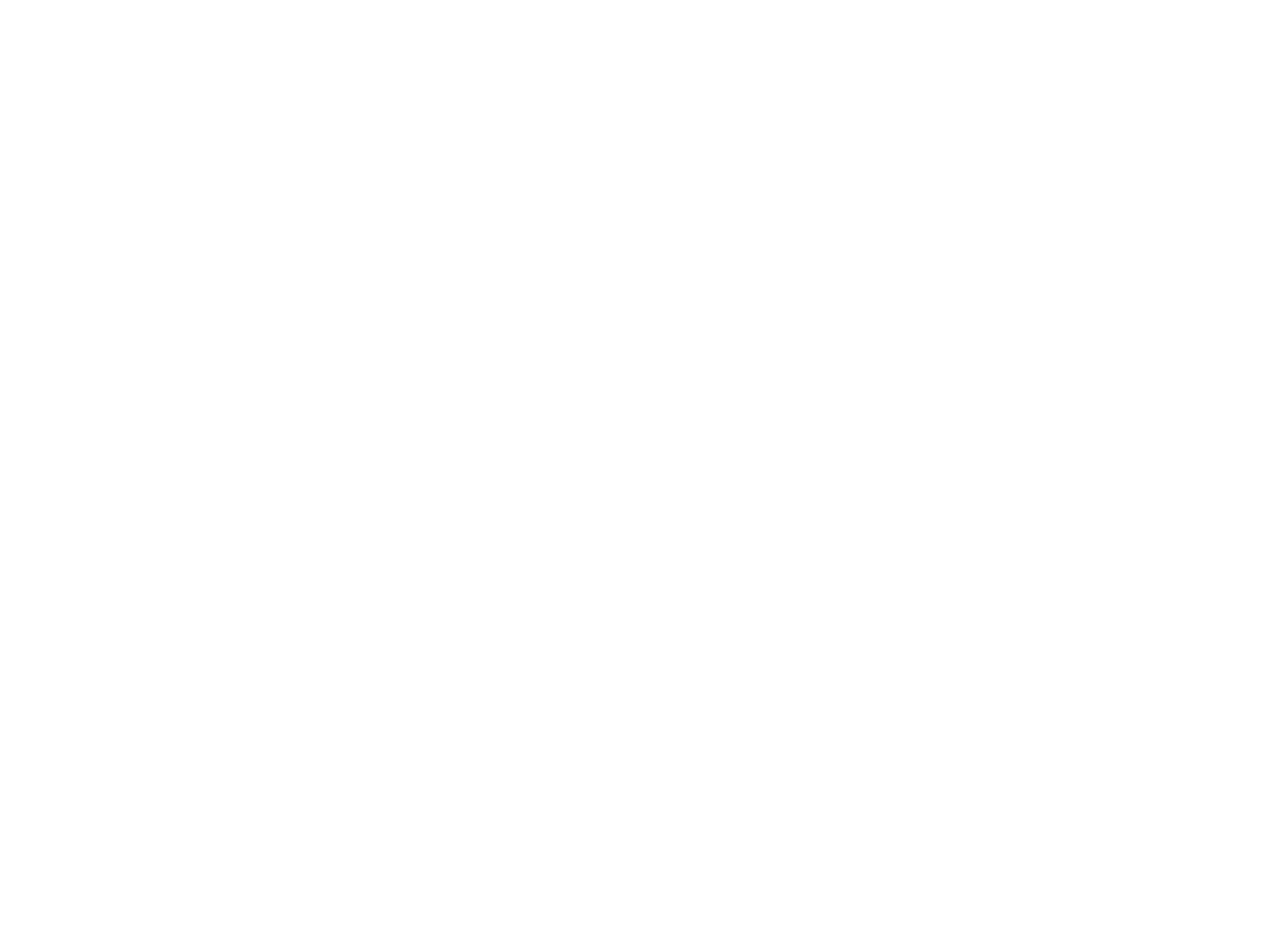

Dimensions and 3D view
Dimensions
Length1.38
Height0.25
Width0.94
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.38
Height0.25
Width0.94
UnitInch
