Key Specifications and Ratings
Phosphor-bronze, bright tin-plated pins Insulating caseVertical fuse entry
Voltage Rating500VAC
Current Rating30A
Features and Application

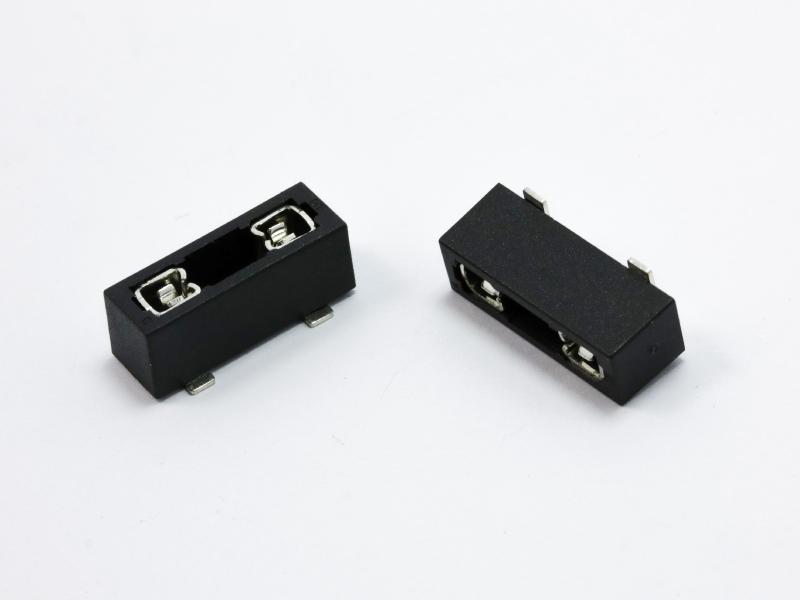

- Surface Mount fuse clip intended to use with Regular (ATO/ATC style) blade fuses on a printed circuit board (PCB).
- With tin-plated mounting pins for easy soldering and an insulating case that offers protection against short circuits and holds the fuse securely, even after multiple insertions.
- The base material is a phosphor-bronze and the plating is bright tin, with a voltage rating up to 500VAC and a current rating up to 30A.
Dimensions and 3D view
Dimensions
Length0.79
Height0.27
Width0.29
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.79
Height0.27
Width0.29
UnitInch
