Key Specifications and Ratings
Brass, tin-plated pins Insulating caseHorizontal fuse entry
Voltage Rating500VAC
Current Rating15A
Features and Application

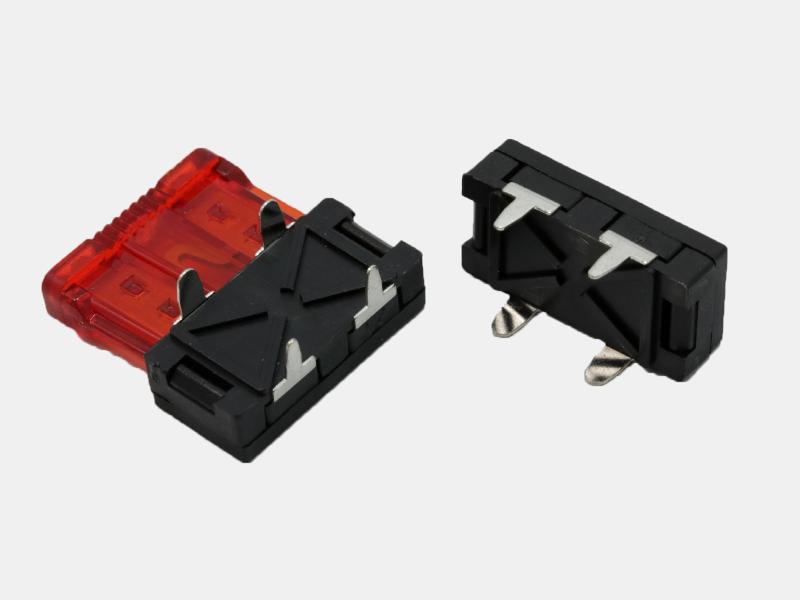

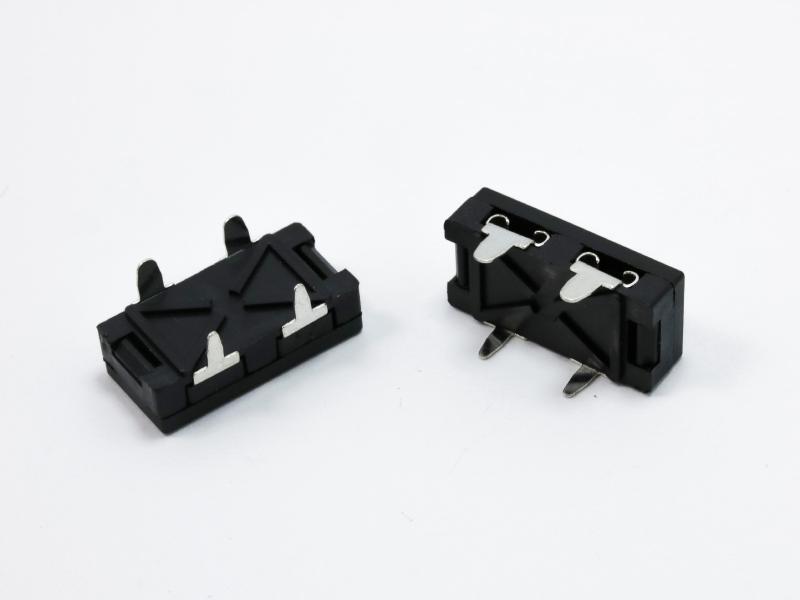

- Economical method to mount Regular (ATO/ATC style) blade fuses on a printed circuit board (PCB), with the fuse being inserted parallel to board.
- With tin-plated mounting pins for easy soldering and an insulating case that offers protection against short circuits and holds the fuse securely, even after multiple insertions.
- The voltage rating is up to 500VAC and the current rating is up to 15A.
Dimensions and 3D view
Dimensions
Length0.83
Height0.37
Width0.39
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.83
Height0.37
Width0.39
UnitInch
