Key Specifications and Ratings
Spring bronze or beryllium copper pinsVertical fuse entry
Voltage Rating500VAC 250VDC
Current Rating15A to 40A
Features and Application

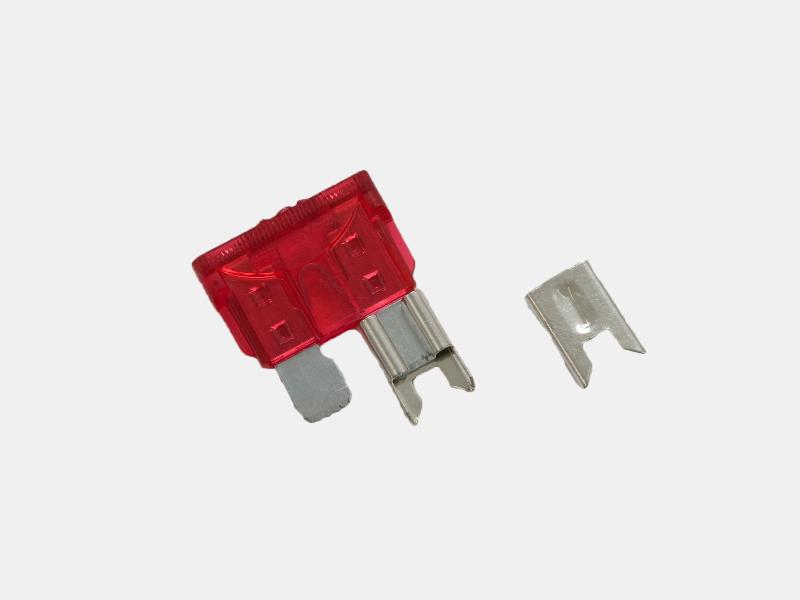

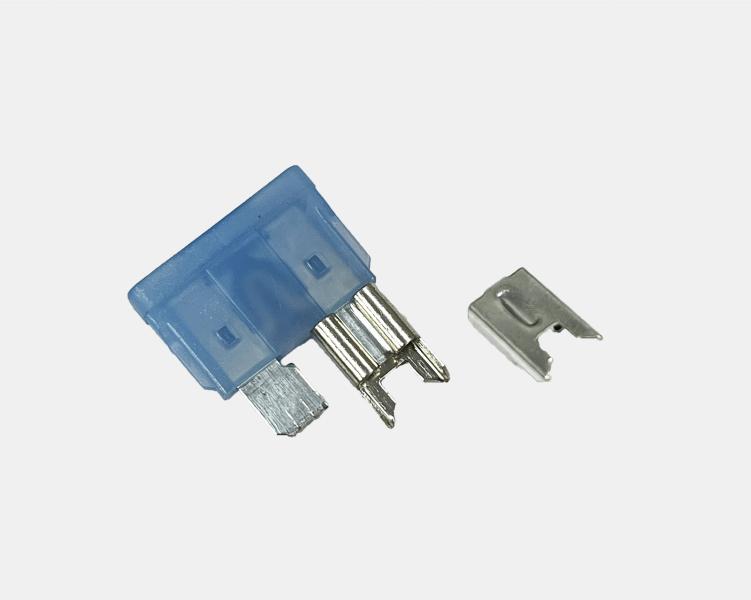

- Economical method to mount Regular (ATO/ATC style) blade fuses on a printed circuit board (PCB).
- With tin-plated mounting pins for easy soldering.
- Configured with a spring bronze base material that is compatible with fuses up to 15A, while beryllium copper base fuse clips accept fuses up to 40A.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/CNR-01.png)
Dimensions
Length0.28
Height0.13
Width0.43
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/CNR-01.png)
Dimensions
Length0.28
Height0.13
Width0.43
UnitInch
