Key Specifications and Ratings
12 poles ground blockModular design2 items can be combined into 4 models
Voltage Rating80VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

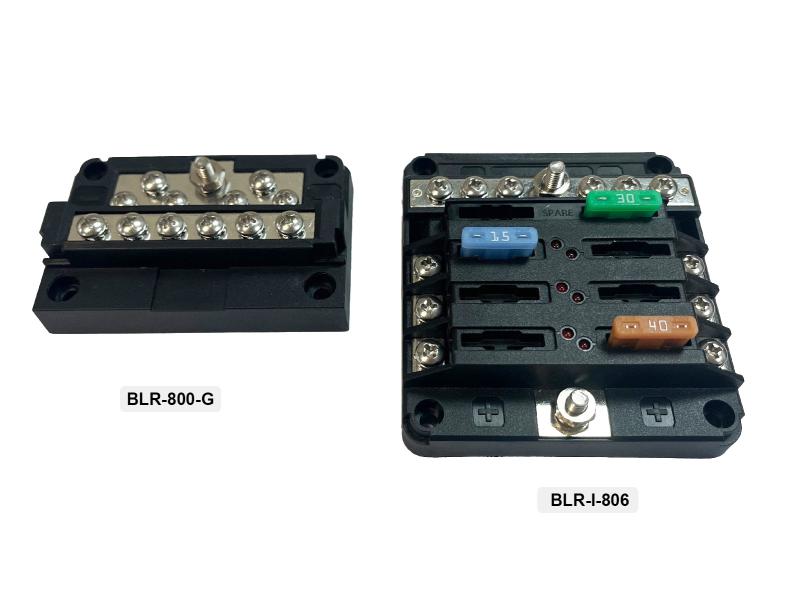

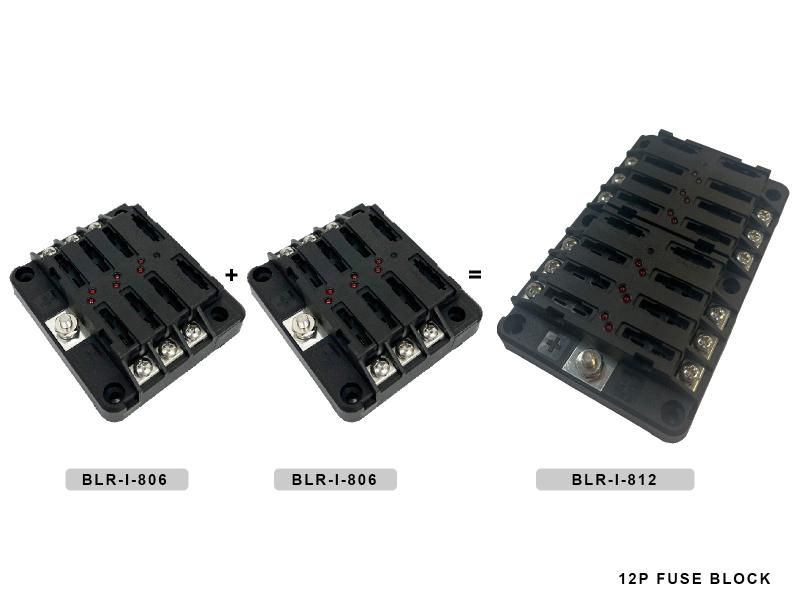

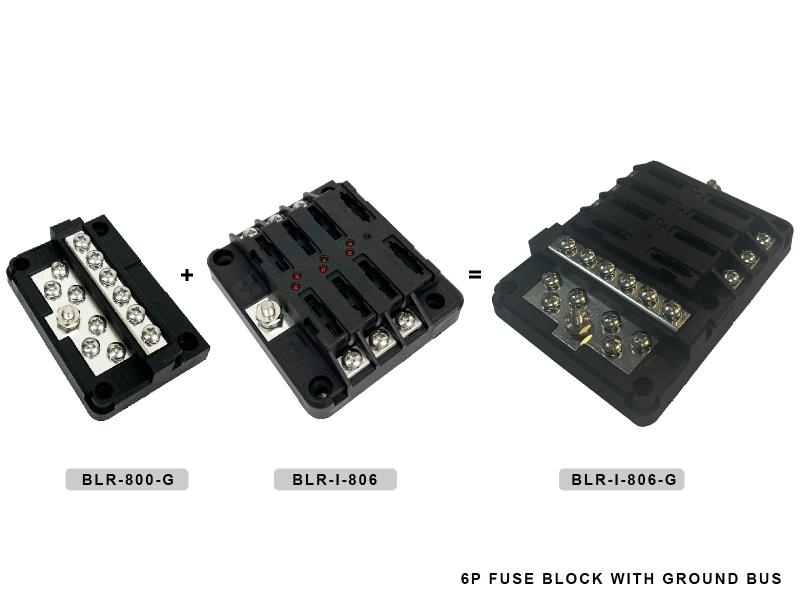

- This 12 position modular ground block can be combined with one or two BLR-I-806 fuse blocks to supply power and grounding to new accessories. Versatile, simple to use and easy to inventory. With only two part numbers in inventory, it allows for the creation of four different blocks.
- Used with Regular (ATO/ATC style) blade fuses, BLR-800-G is built with a 100A negative bus bar.

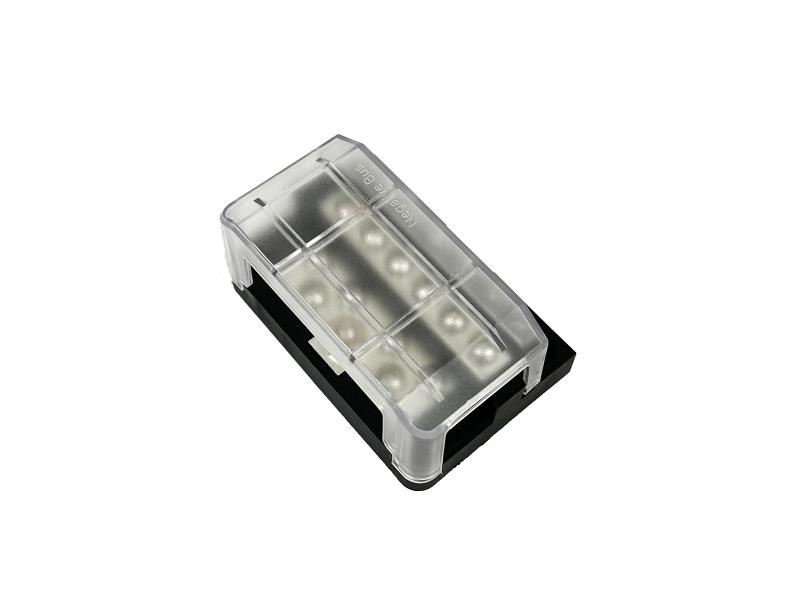

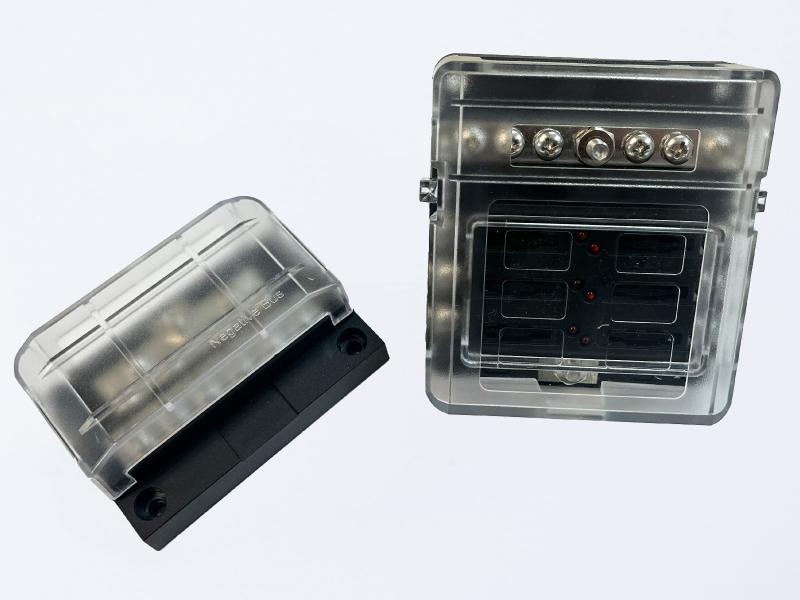

- Designed with screw terminals for secure wiring and an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length2.25
Height1.63
Width3.4
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.25
Height1.63
Width3.4
UnitInch
