Key Specifications and Ratings
Consolidates 10 circuitsLED blown fuse indicatorSpace-saving compact design
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

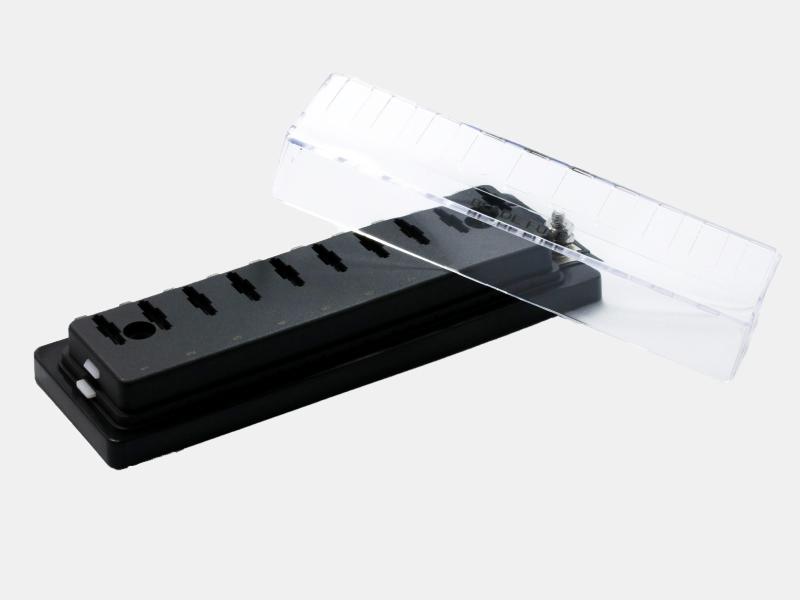

- Compact 10 positions fuse block for Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 100A total for the fuse block.
- With single side design that allows wire entry from one side to minimize the block’s footprint, and an LED light for each circuit that illuminates when the circuit opens.

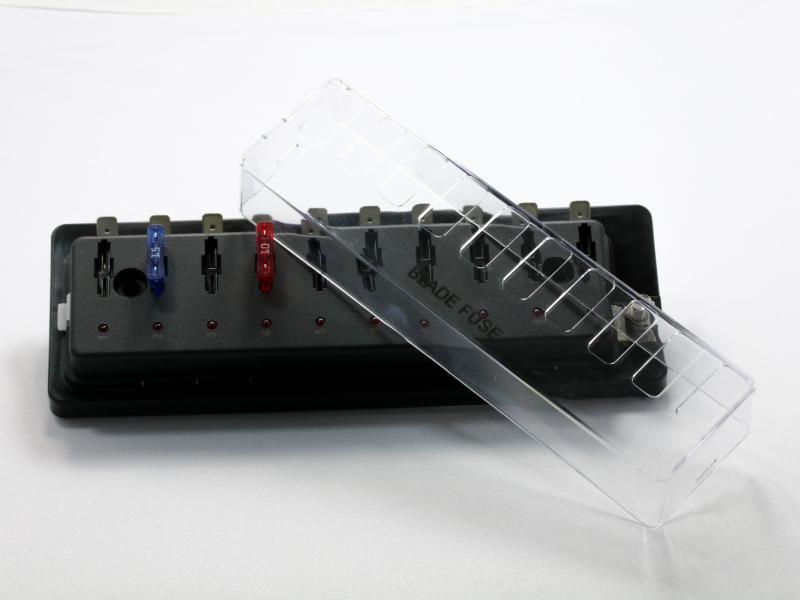

- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length7.28
Height1
Width2.46
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length7.28
Height1
Width2.46
UnitInch
