Key Specifications and Ratings
Consolidates 4 circuitsLED blown fuse indicatorM4 screw input terminalsRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

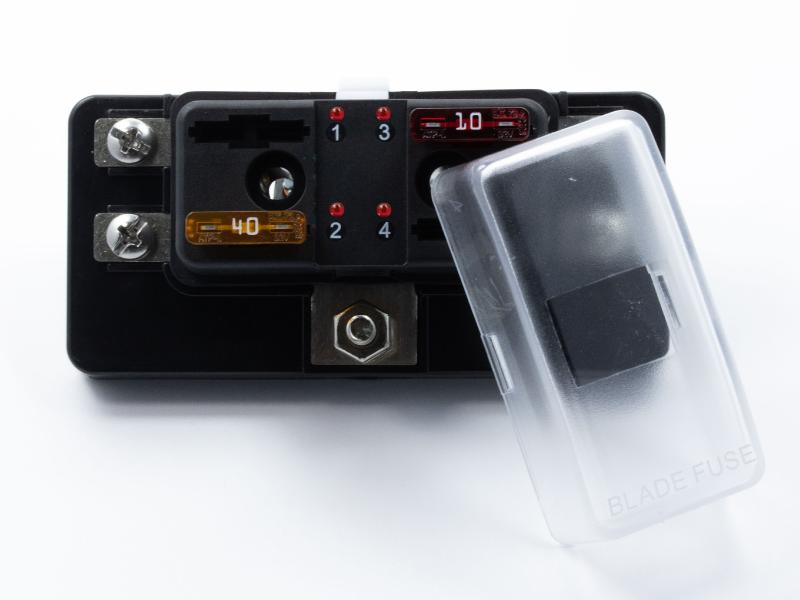

- Fuse block for Regular (ATO/ATC style) blade fuses used in DC distribution systems to provide compact circuit protection for 4 circuits, with a rated current of 30A per position and 100A total for the fuse block.
- With an LED light for each circuit that illuminates when the circuit opens and a fuse needs to be replaced, this block comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
- Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length1.85
Height1.02
Width3.94
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.85
Height1.02
Width3.94
UnitInch
