Key Specifications and Ratings
Consolidates 6 circuitsLED blown fuse indicatorWith ground bus
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

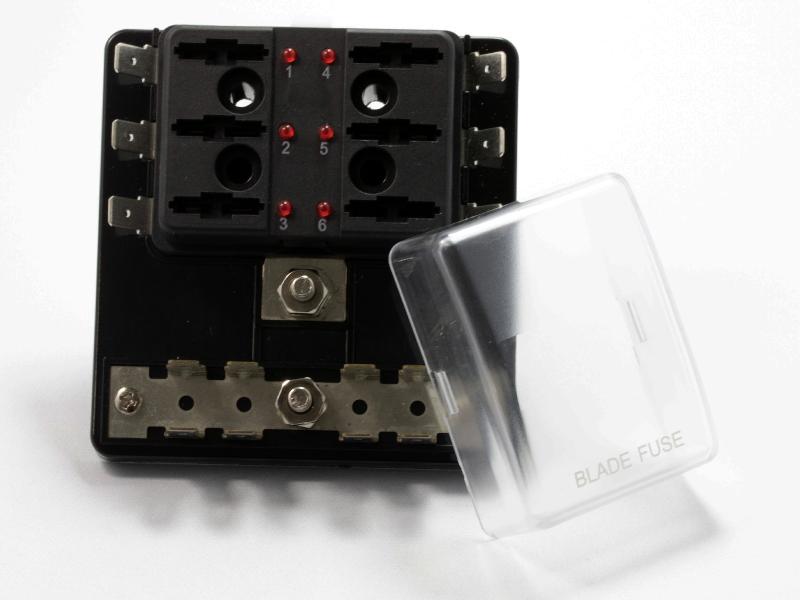

- This fuse block compactly supplies power and grounding to new accessories and is convenient in boats or RVs that don’t have a chassis ground type system.
- It provides circuit protection for 6 circuits with Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 100A total for the fuse block.
- With an LED light for each circuit that illuminates when the circuit opens and a fuse needs to be replaced, reducing the time required to find and replace a faulty fuse.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.7
Height0.83
Width3.46
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.7
Height0.83
Width3.46
UnitInch
