Key Specifications and Ratings

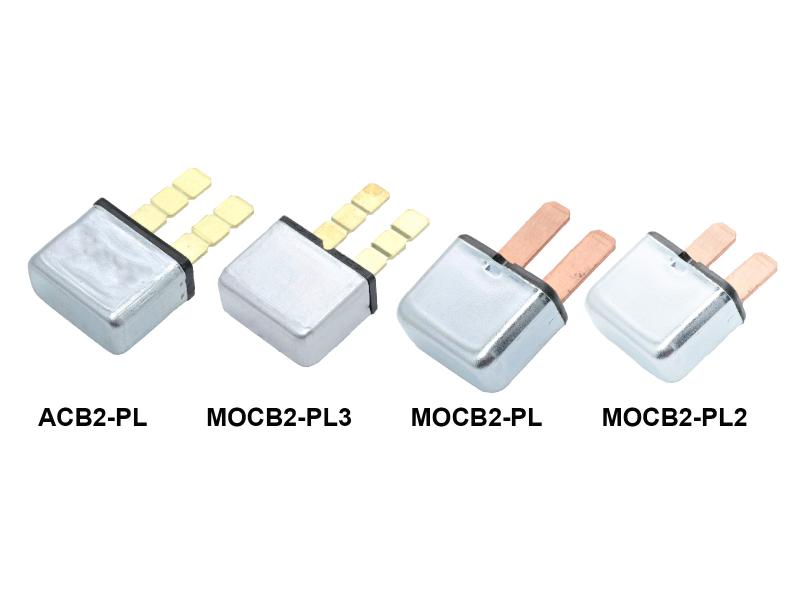

Modified resetVersatile universal blade terminals
Voltage Rating12VDC
Current Rating10A to 40A
Interrupt Rating-
Features and Application
- Recommended for most commercial applications where downtime can be costly and resettability is needed.
- Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Regular (ATO/ATC style) blade fuse, such as the OptiFuse APR and ANR series.
- Designed with universal blade terminals that make them convenient in instances when required blade size is unknown.
Dimensions and 3D view
Dimensions
Length0.85
Height0.4
Width0.98
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.85
Height0.4
Width0.98
UnitInch
