MOCB2-PL Universal Modified Reset Blade Breaker for Flexible Use

Disclaimer Notice

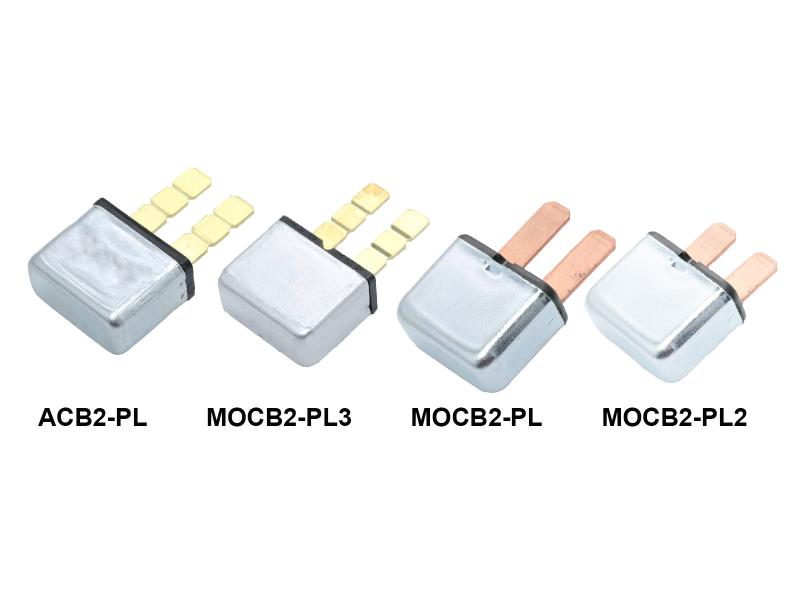

MOCB2-PL Universal Modified Reset Blade Breaker for Flexible Use

Disclaimer Notice
Blade - Universal - Modified Reset
sae-j553 certification image
RoHS certification image
REACH certification image
What is 3D CAD?

A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.

Key Specifications and Ratings
Modified resetVersatile universal blade terminals
Voltage Rating12VDC
Current Rating10A to 40A
Interrupt Rating-
Features and Application
  • Recommended for most commercial applications where downtime can be costly and resettability is needed.
  • Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Regular (ATO/ATC style) blade fuse, such as the OptiFuse APR and ANR series.
  • Designed with universal blade terminals that make them convenient in instances when required blade size is unknown.
Dimensions and 3D view
Dimensions
Length0.84
Height0.39
Width1.19
UnitInch
What is 3D CAD?

A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.

Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.84
Height0.39
Width1.19
UnitInch
What is 3D CAD?

A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
