Key Specifications and Ratings
Automatically resettable Very fast trip timeLow resistance
Voltage Rating60VDC
Current Rating100mA to 3A
Interrupt Rating 100A DC
Features and Application

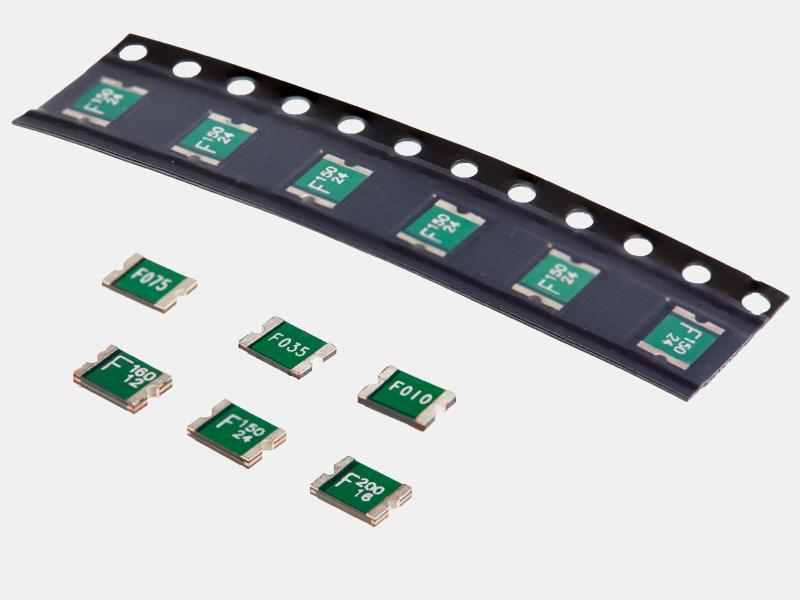

- Measuring only 0.18” x 0.12”, R1812 resettable fuse offers faster response times and lower resistance than standard SMD fuses.
- The R1812 series is available from 100mA to 3A and has a voltage rating 60 VDC to 6 VDC, depending on the current rating.
- Ideal for situations where frequent overcurrent conditions occur or constant uptime is required, surface mount resettable PTC Fuses are typically used all high-density boards.
Dimensions and 3D view
Dimensions
Length-
Height-
Width-
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length-
Height-
Width-
UnitInch
