Key Specifications and Ratings
Class RK5 - Main feeder and branch protectionCurrent LimitingDual element time delayRetail Pack Quantity: 1PC
Voltage Rating250VAC 150VDC
Current Rating10A to 60A
Interrupt Rating200000A AC 50000A DC
Features and Application

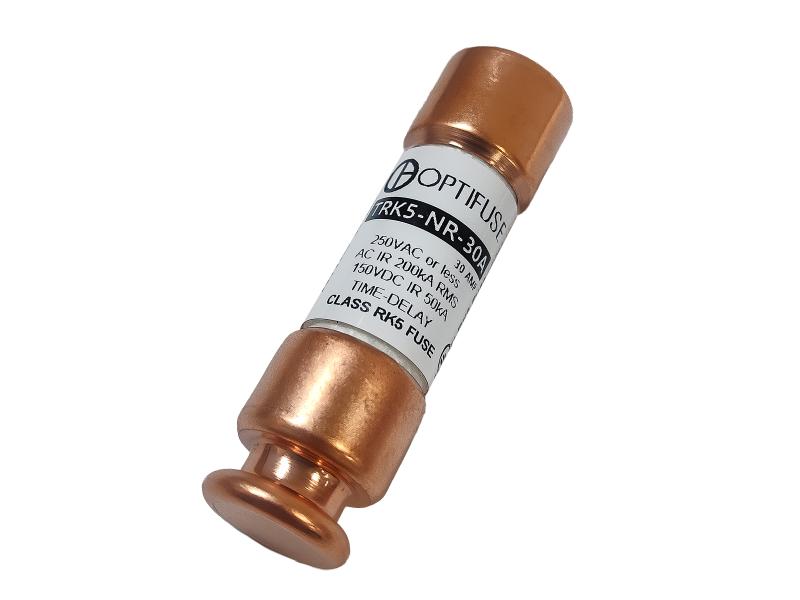

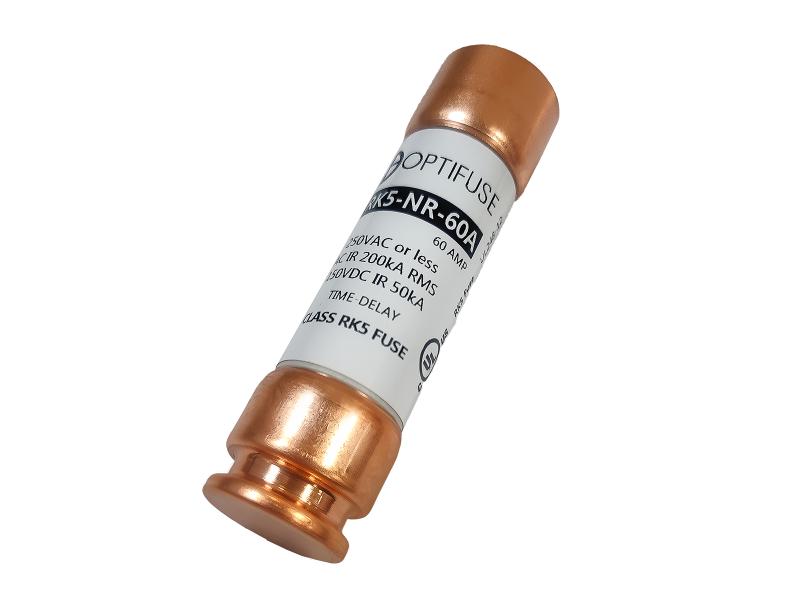

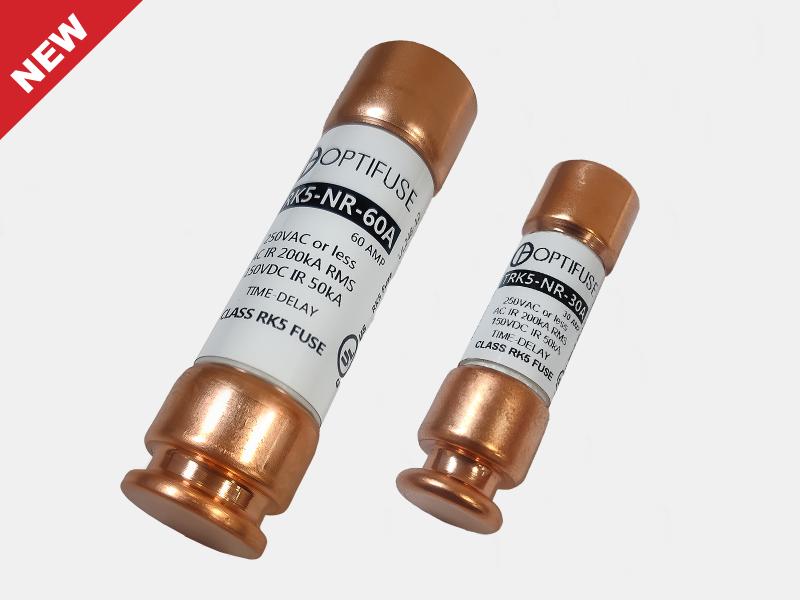

- UL listed Class RK5 fuses are the industry's most popular choice for motor circuit protection. These dual-element fuses offer superior time-delay performance, making them ideal for circuits that experience temporary motor overloads and surge currents, providing both high-performance short-circuit and overload protection.
- The rejection feature allows Class RK5 fuses to be installed in specialized fuse clips and holders that prevent the use of older, less reliable fuse types.
- It is rated at 250VAC / 150VDC with a 200K amp AC interrupting capacity and 50K amp DC interrupting capacity. Current ratings range from 10A to 60A.

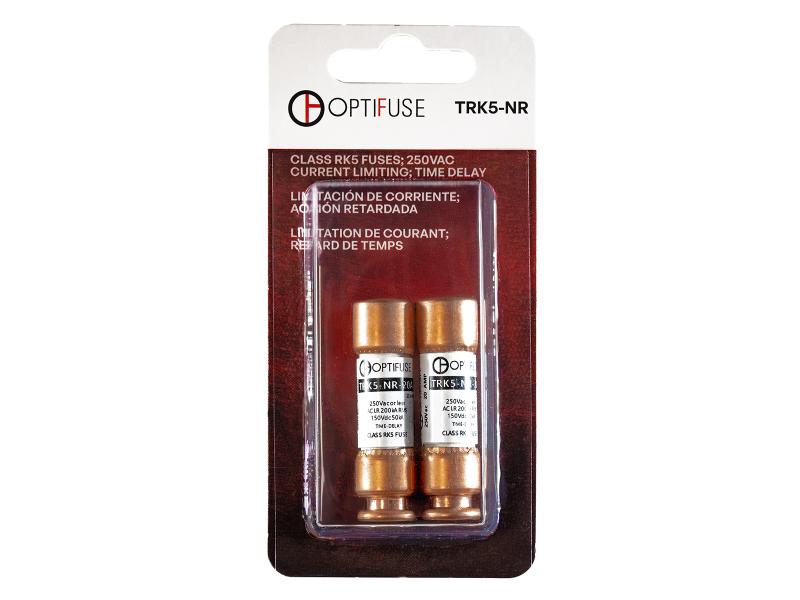

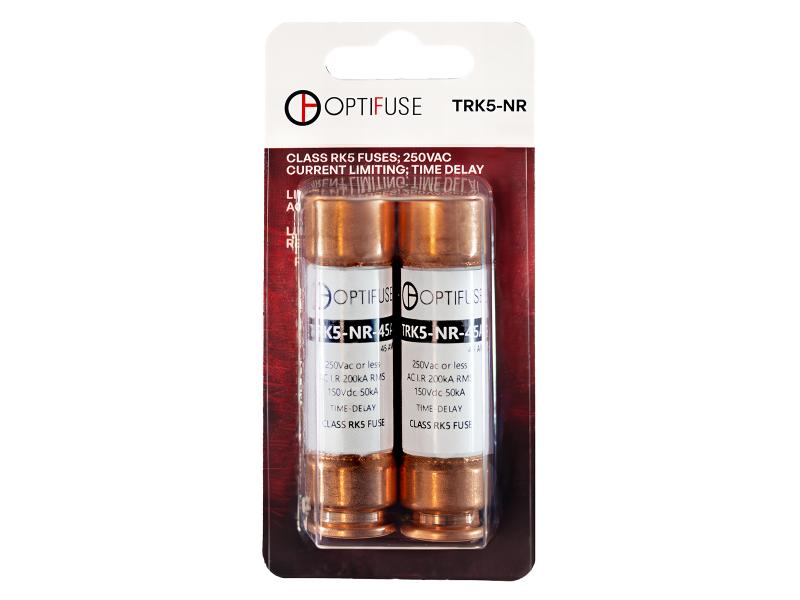

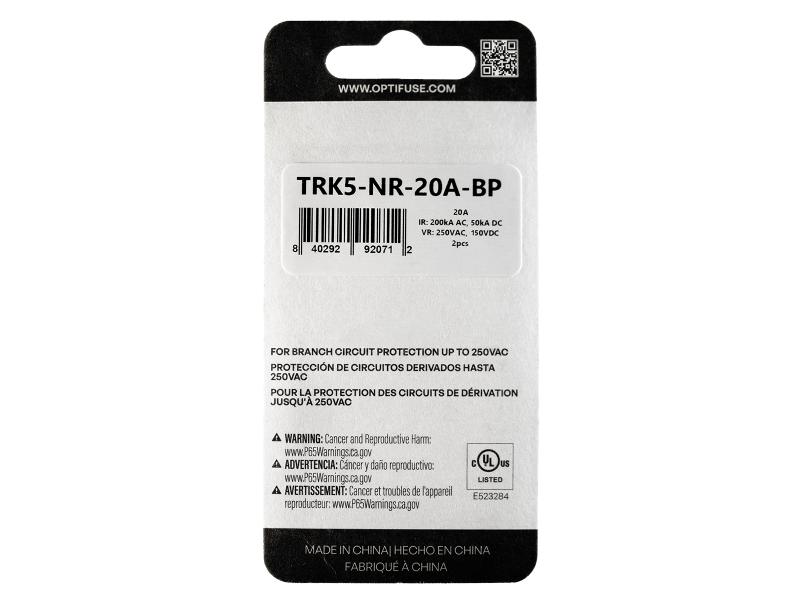

- NEW: Select products are available in attractive retail packaging.
UL File
Dimensions and 3D view
Dimensions
Length2
Height0.56
Width0.56
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2
Height0.56
Width0.56
UnitInch
