Key Specifications and Ratings
Class T - Main feeder and branch protectionCurrent limitingFast acting
Voltage Rating600VAC 300VDC
Current Rating1A to 1200A
Interrupt Rating200000A AC 50000A DC
Features and Application

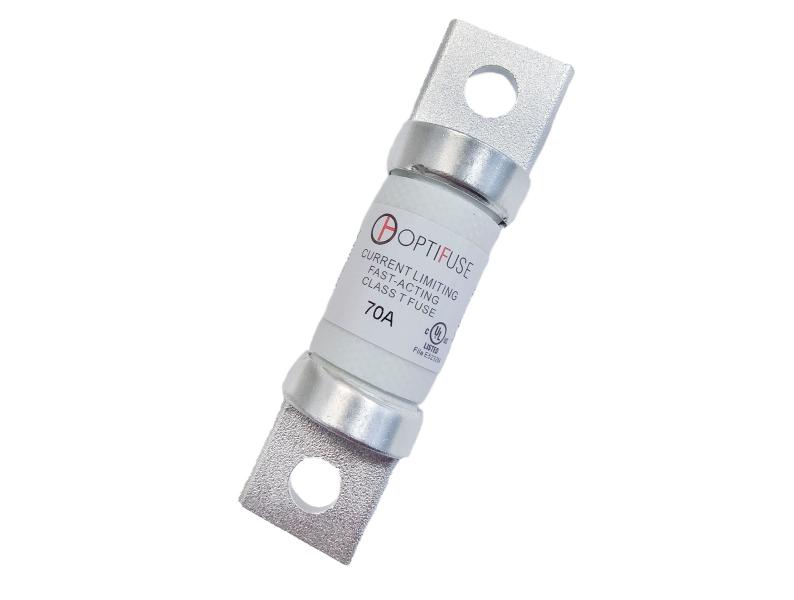

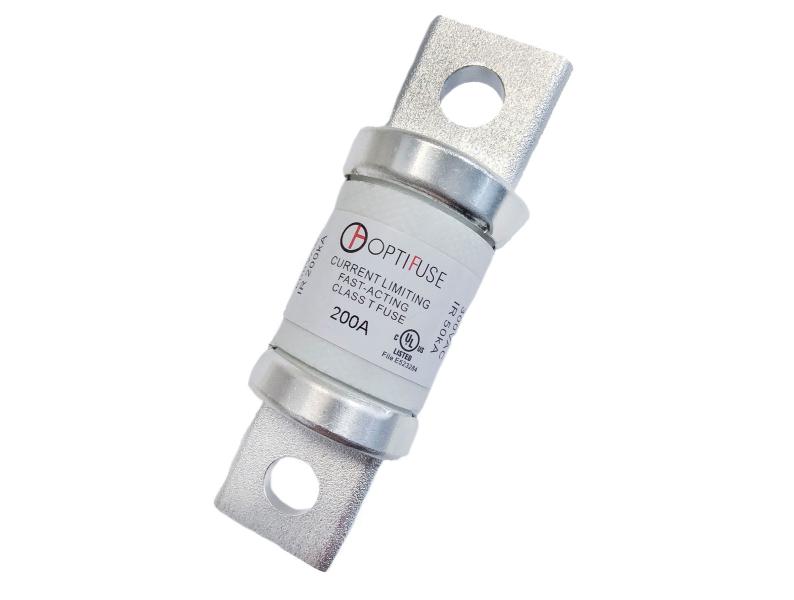

- OptiFuse's new UL listed Class T fuses provide fast acting protection combined with high current limiting capabilities for main feeder branch circuit protection (UL 248-15). They are the most compact option available for ratings exceeding 30A.
- Class T fuses are designed to protect devices such as load centers, panelboards, switchboards, measuring centers, and other surge-sensitive equipment from both overload and short circuit currents. They can be found in systems such as pumps, HVAC, and power sources.
- Rated at 600VAC / 300VDC, these fuses have a 200K amp AC interrupting capacity and a 50K amp DC interrupting capacity. Current ratings range from 1A to 400A.
UL File
Dimensions and 3D view
Dimensions
Length1.5
Height0.57
Width0.57
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.5
Height0.57
Width0.57
UnitInch
