Key Specifications and Ratings
UL Class CC - Branch circuit protectionCurrent LimitingFast actingRetail Pack Quantity: 1PC
Voltage Rating600VAC 300VDC
Current Rating1A to 30A
Interrupt Rating200000A AC 20000A DC
Features and Application

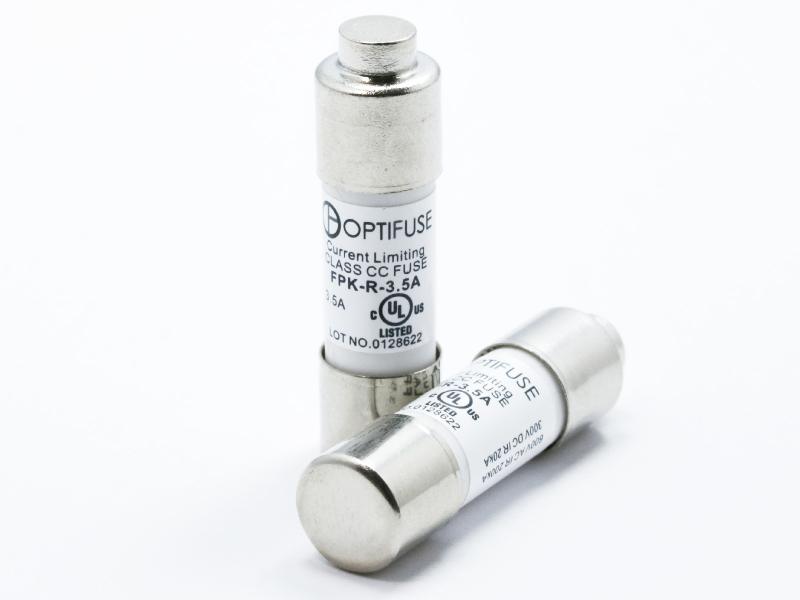

  • Fast acting UL Class CC fuse designed for general-purpose branch circuit protection (UL 248–4). These fuses offer a high interrupting capacity and current limiting protection while maintaining a low profile (10 x 38mm). They are commonly used in control panels, lighting circuits, and other general circuits.

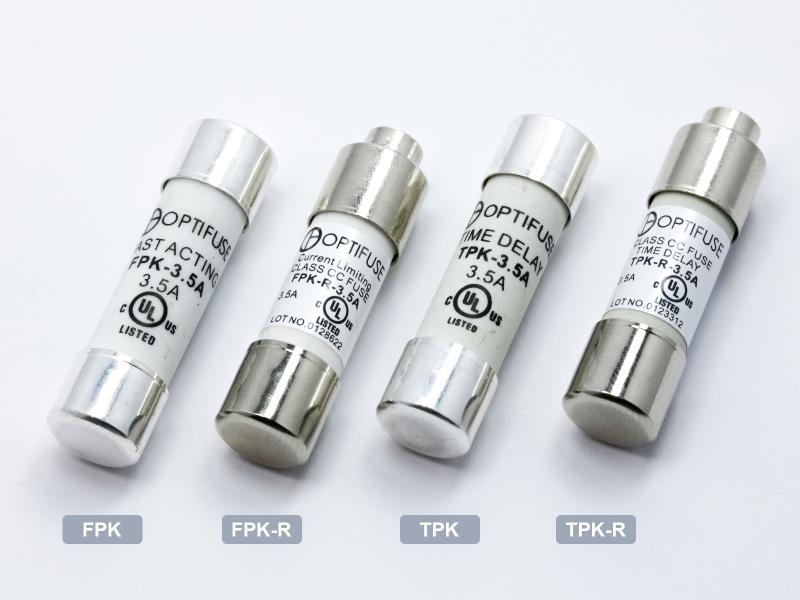

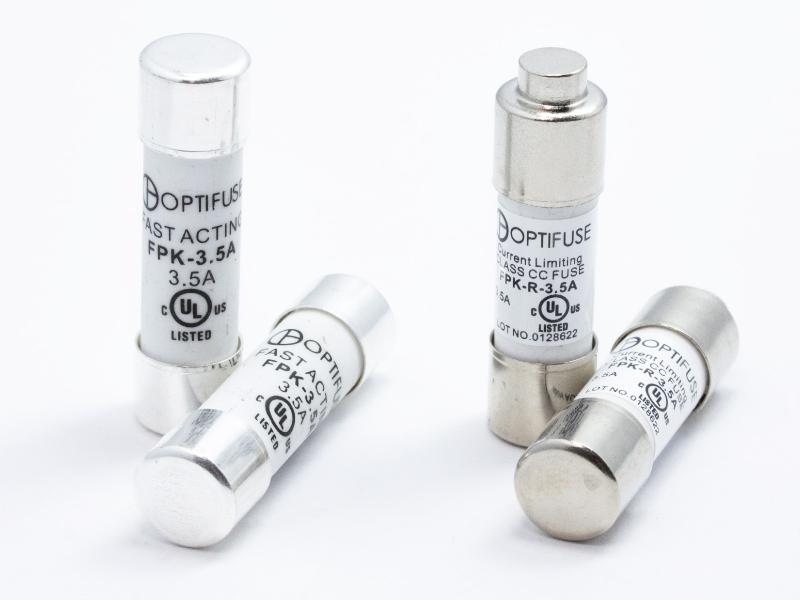

  • Physically differentiated from Midget fuses by the rejection feature that prevents substitution by lesser rated fuses.
  • It is rated at 600VAC / 300VDC with a 200K amp AC interrupting capacity and 20K amp DC interrupting capacity. Current ratings range from 1A to 30A.

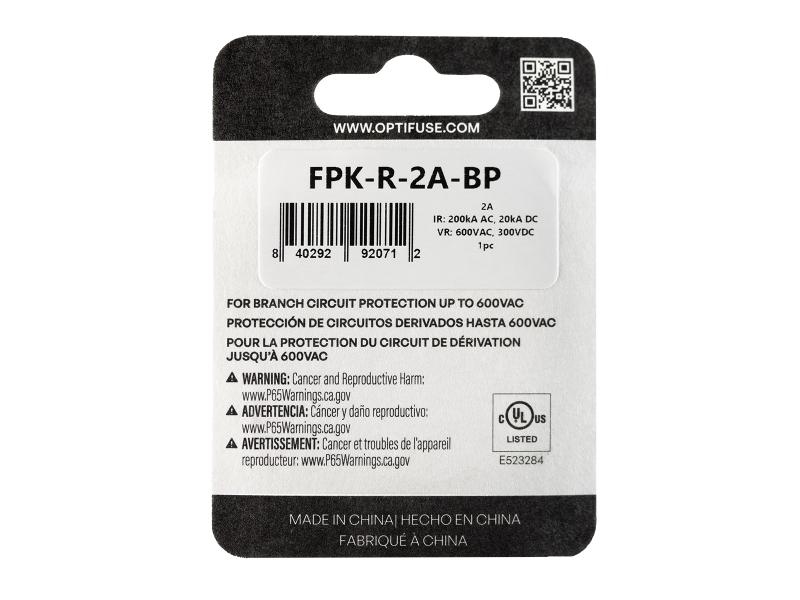

  • NEW: Select products are available in attractive retail packaging.
Dimensions and 3D view
Dimensions
Length0.41
Height1.5
Width0.41
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.41
Height1.5
Width0.41
UnitInch
