FCD / FCD-P


FCD / FCD-P

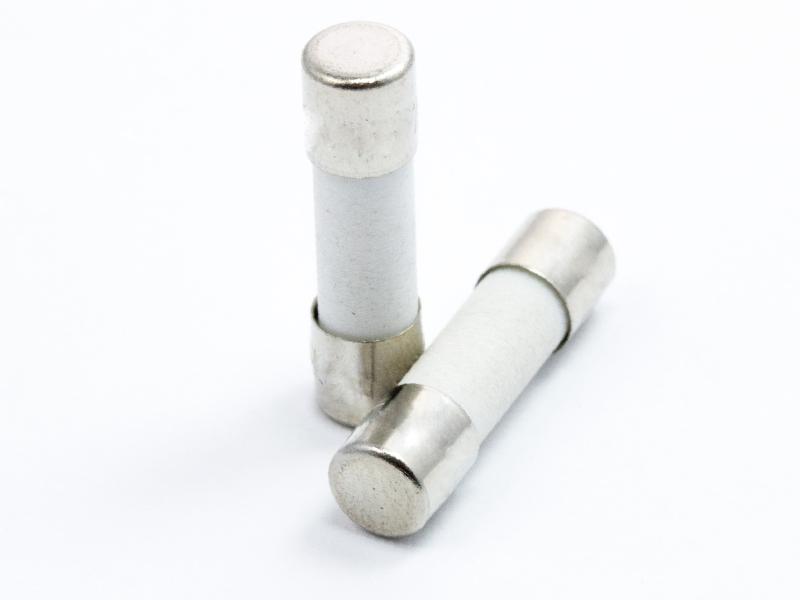

Ceramic - 5 x 20 mm (IEC) - Fast Acting
curus certification image
iec 60127 certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
5 x 20 mm (IEC)Fast actingCeramic fuseRetail Pack Quantity: 5PCS / Box Quantity: 5PCS
Voltage Rating250VAC
Current Rating200mA to 16A
Interrupt Rating1500A AC
Features and Application

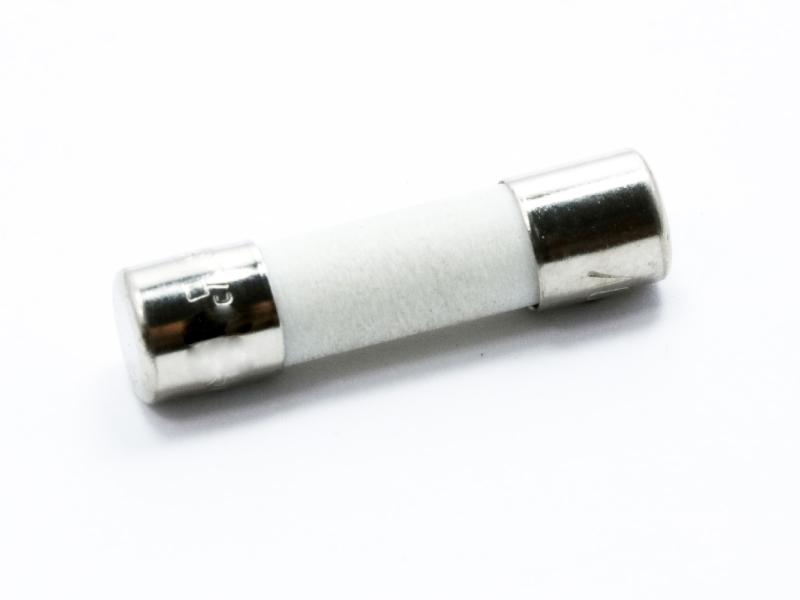

  • 20mm long and 5mm in diameter, this fuse is fast acting with a ceramic body and is designed to meet European IEC standards (as well as being UL Recognized). Available with or without axial leads.
  • Commonly used in applications that are sensitive to changes in the flow of electricity, such as home appliances. Designed to open within seconds of being exposed to overloads and short circuits.
  • Well suited for applications where high currents may occur due to the strong nature of the ceramic material.

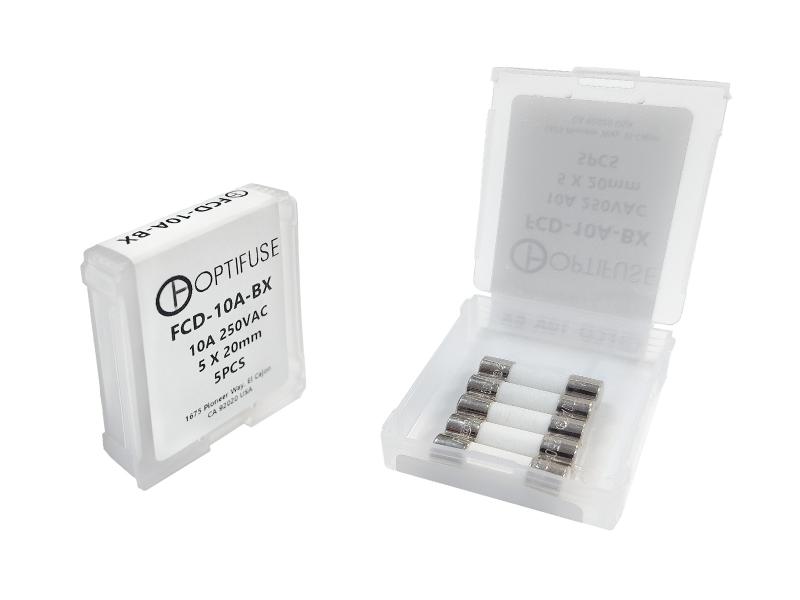

  • NEW: Select products are available in pill boxes.
Dimensions and 3D view
Dimensions
Length0.2
Height0.79
Width0.2
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.2
Height0.79
Width0.2
UnitInch
