Key Specifications and Ratings
3.6 x 10 mmTime lagCeramic fuse
Voltage Rating250VAC
Current Rating100mA to 15A
Interrupt Rating50A AC
Features and Application

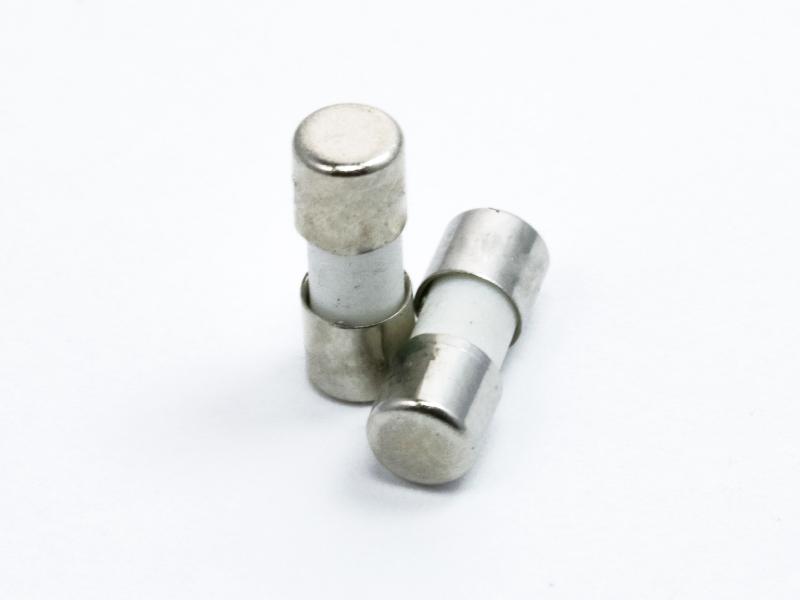

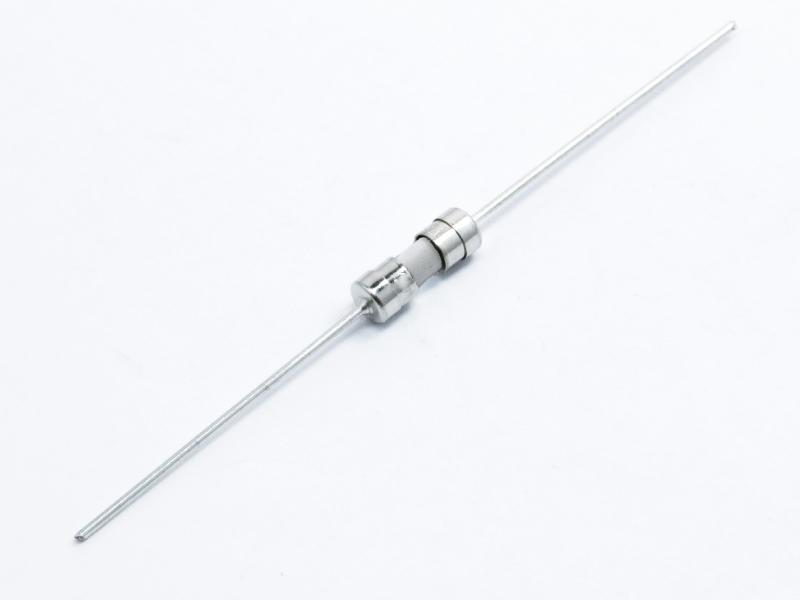

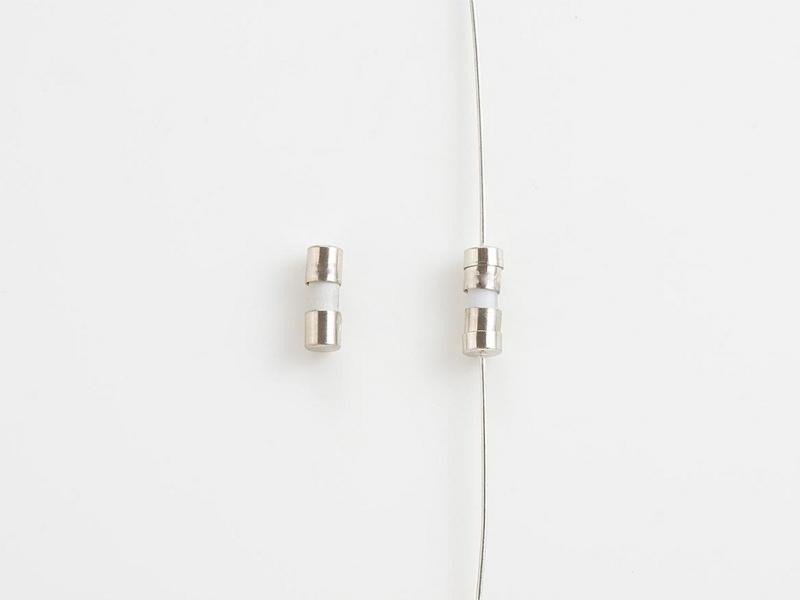

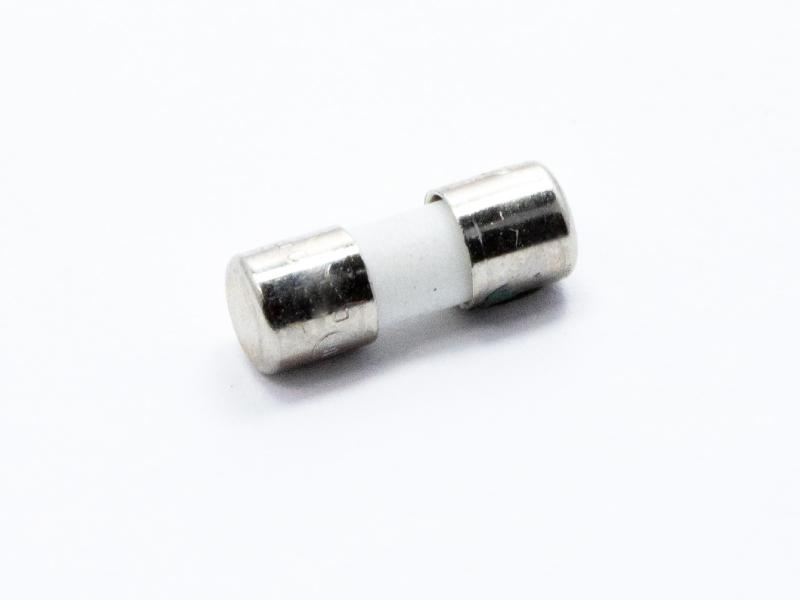

- 10mm long and 3.6mm in diameter, this fuse is time lag with a ceramic body and is UL Listed. Available with or without axial leads
- Time lag fuses are commonly used in applications where high but harmless inrush currents are needed for brief periods, such as with alternators. This fuse prevents nuisance tripping and opens only when an overcurrent sustains in a circuit.
- Well suited for applications where high currents may occur due to the strong nature of the ceramic material.
UL File
Dimensions and 3D view
Dimensions
Length0.14
Height0.39
Width0.14
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.14
Height0.39
Width0.14
UnitInch
Related products
You can also use

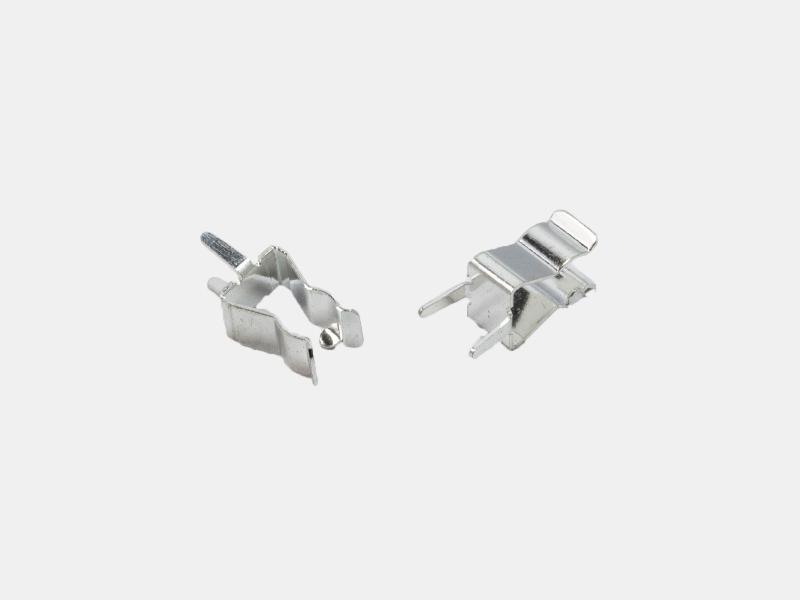

Accessories and Mounting Devices
