Key Specifications and Ratings

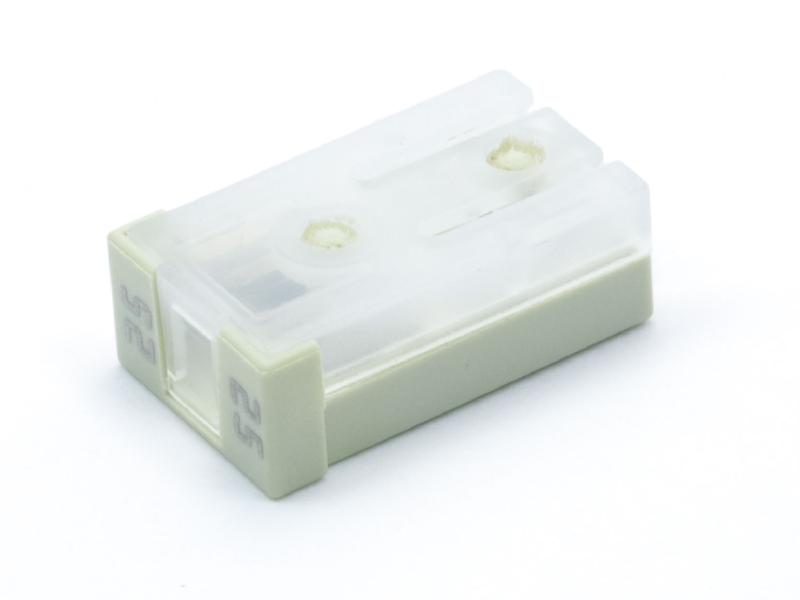

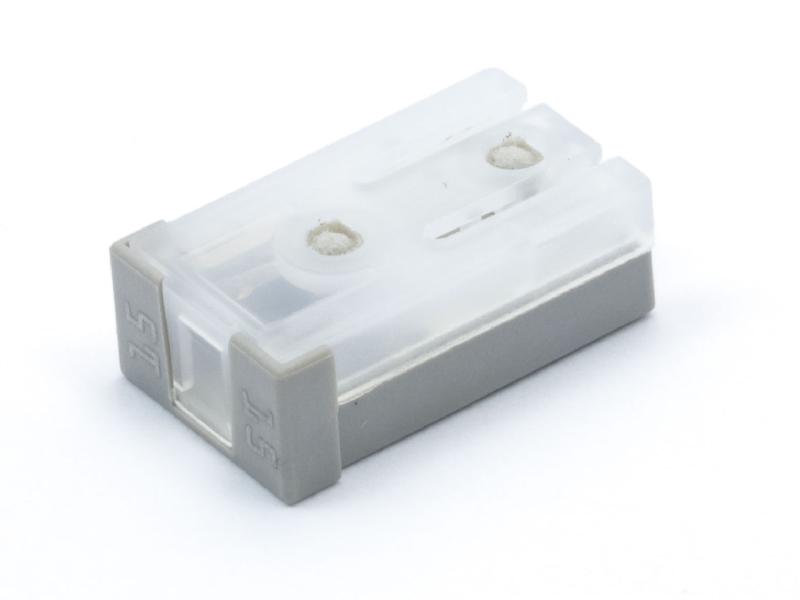

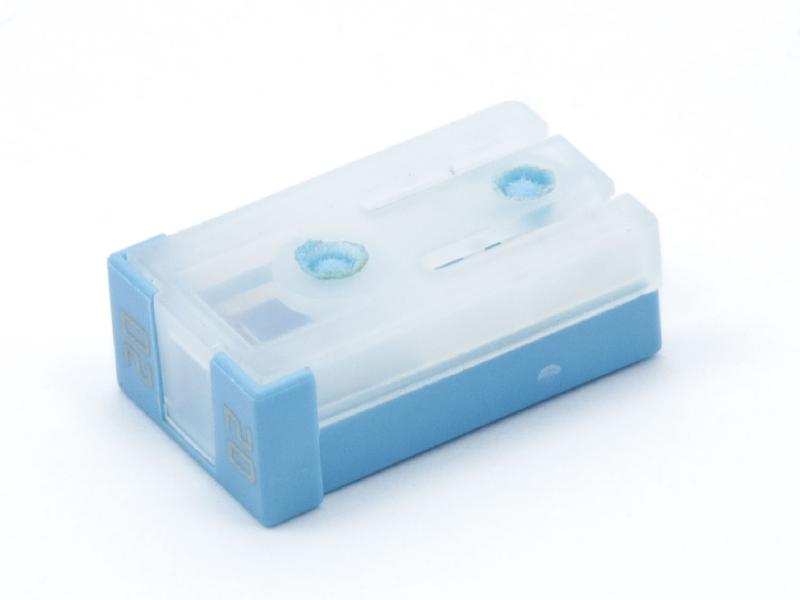

MCASE styleColor coded to amp ratingsSpace-saving compact size
Voltage Rating58VDC
Current Rating15A to 60A
Interrupt Rating 1000A DC
Features and Application
- Female cartridge fuses designed for the heavy-duty loads associated to the increasing power needs in the automotive industry.
- Miniaturized footprint, with a similar height and width as MICRO style blade fuses, this fuse is designed to fit into small spaces while handling inrush currents and is mated with 6.3mm male terminals.

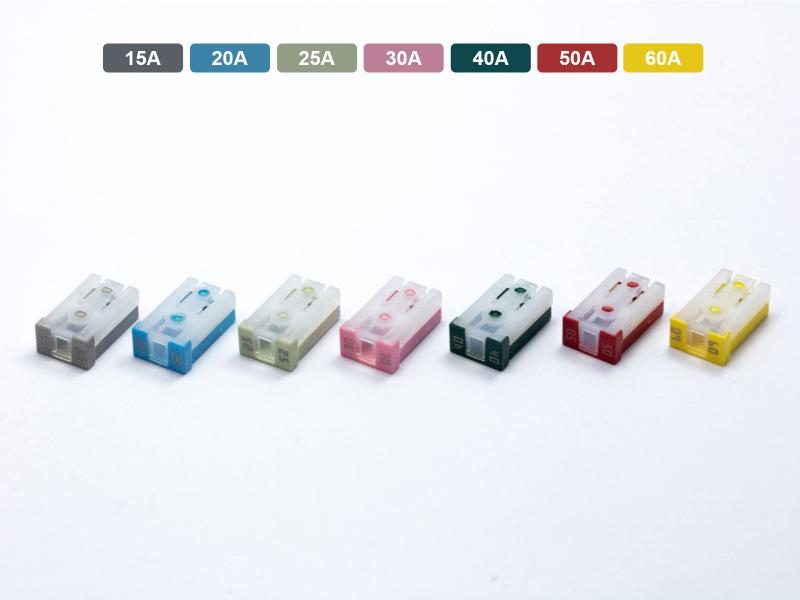

- Designed with industry-standard color coding for easy amperage identification and with a clear window on top for quick blown fuse identification.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/FMX-MS.png)
Dimensions
Length0.42
Height0.24
Width0.69
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/FMX-MS.png)
Dimensions
Length0.42
Height0.24
Width0.69
UnitInch
