Key Specifications and Ratings
SFE styleFast actingSized to amp ratingsRetail Pack Quantity: 5PCS / Box Quantity: 5PCS
Voltage Rating32VAC 32VDC
Current Rating4A to 30A
Interrupt Rating-
Features and Application
- Engineered to specifications set by the Society of Fuse Engineers, this fuse is for automotive applications and is only rated to interrupt 32VDC, with a fast acting design so that it opens immediately during an overcurrent.

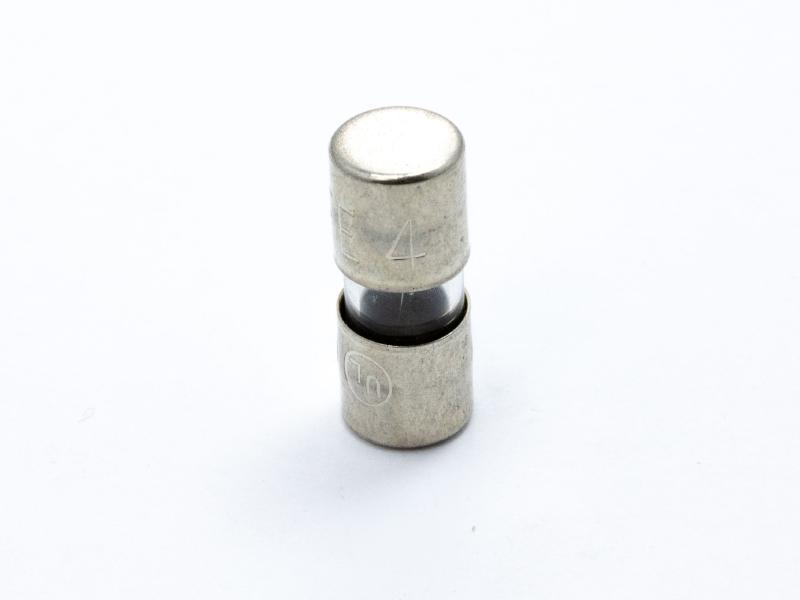

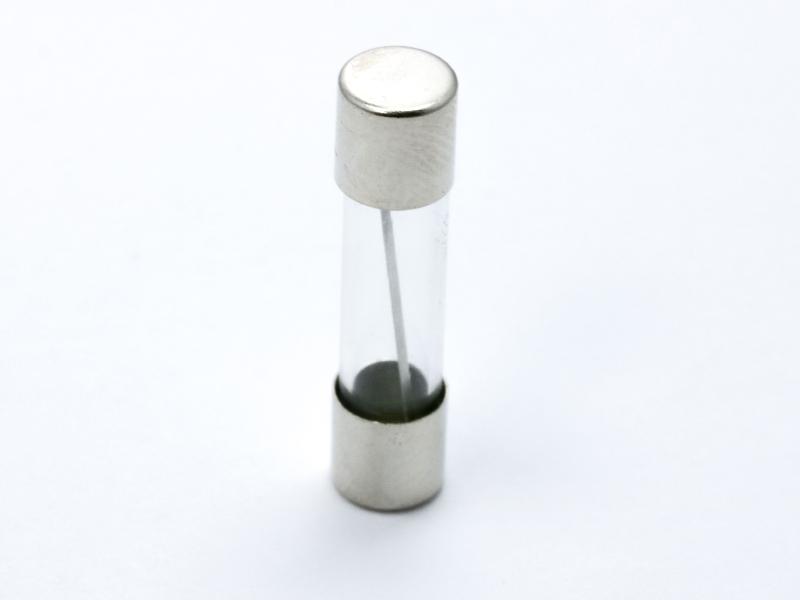

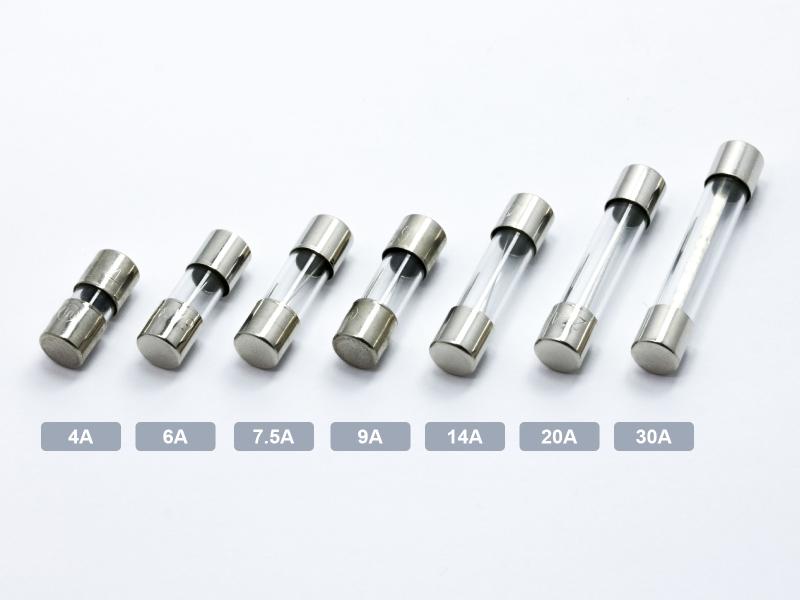

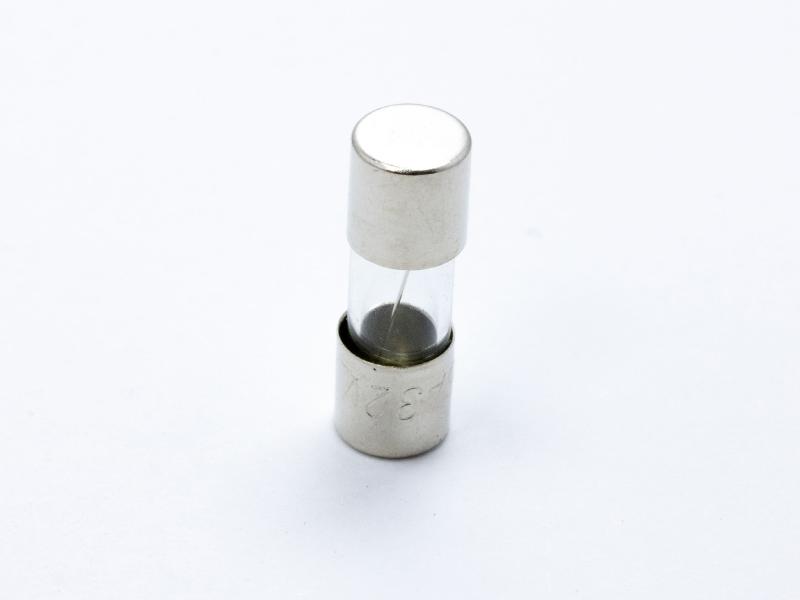

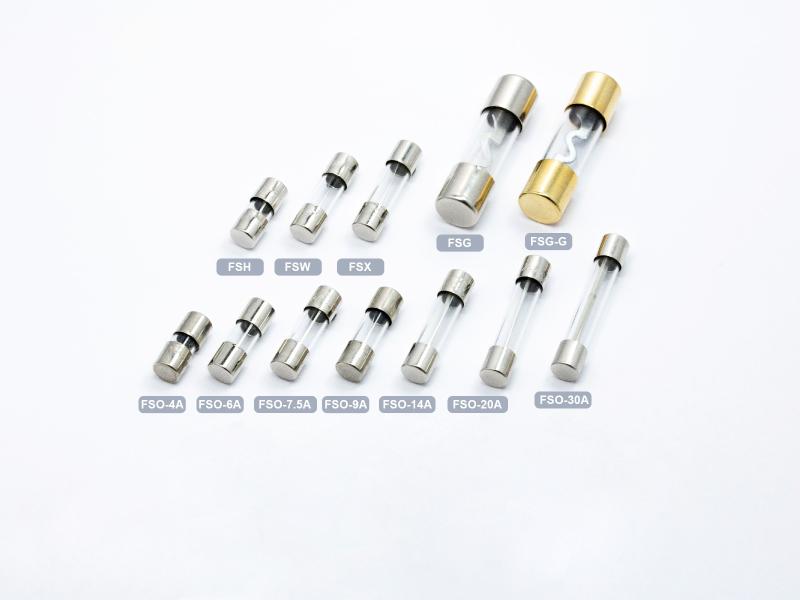

- Its diameter is always 1/4", but its length depends on the current rating, ranging from 5/8" for a FSO-4A, to 1-7/16" for a FSO-30A, to ensure accurate fuse replacement.

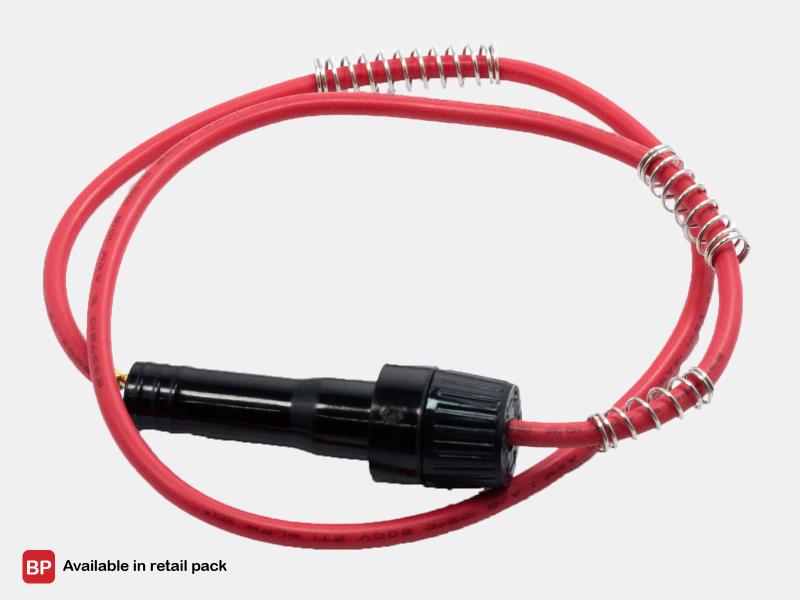

- Used with the LPA-09 universal in-line fuse holder that come with 3 different sizes of springs to accommodate all FSO fuse lengths.

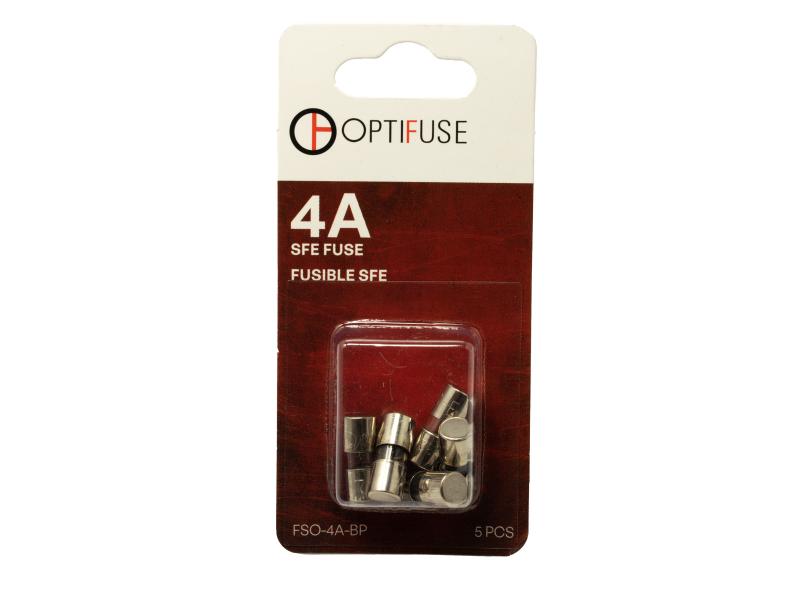

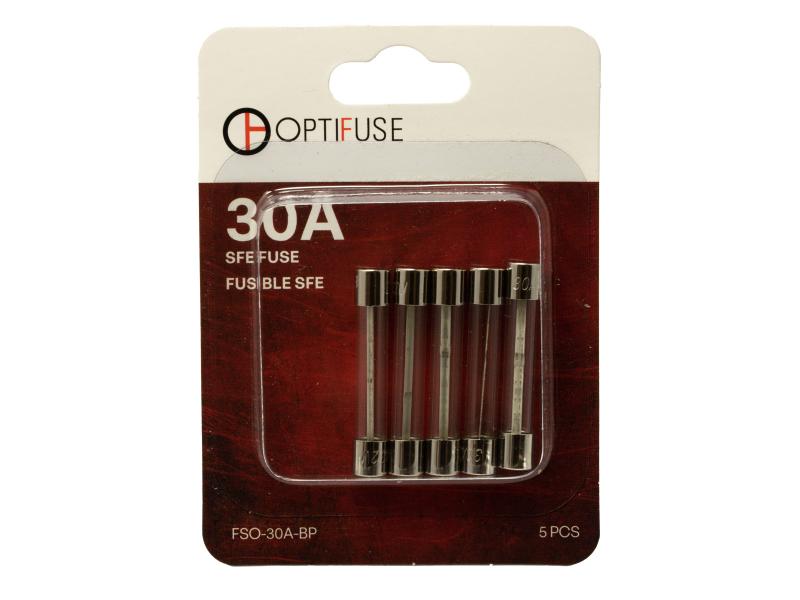

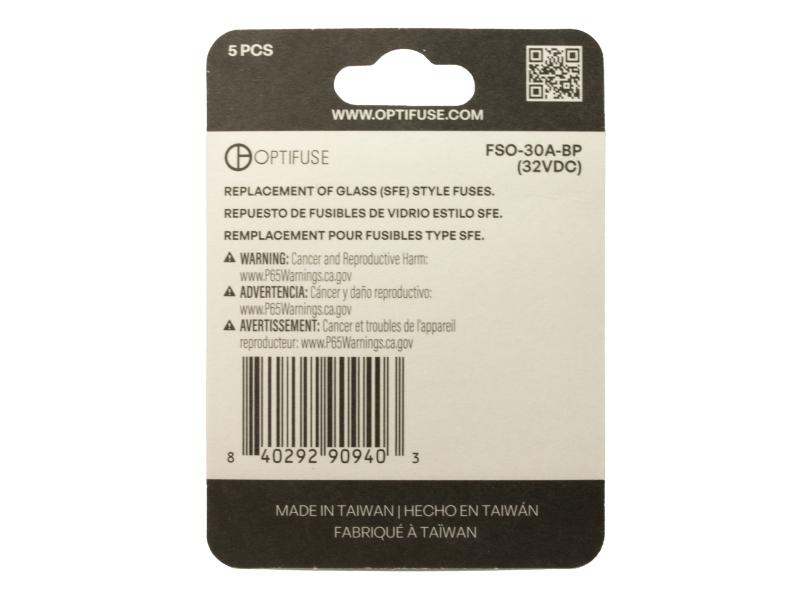

- NEW: Select products are available in pill boxes and attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.25
Height0.63
Width0.25
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.25
Height0.63
Width0.25
UnitInch
Accessories and Mounting Devices
Use it with
