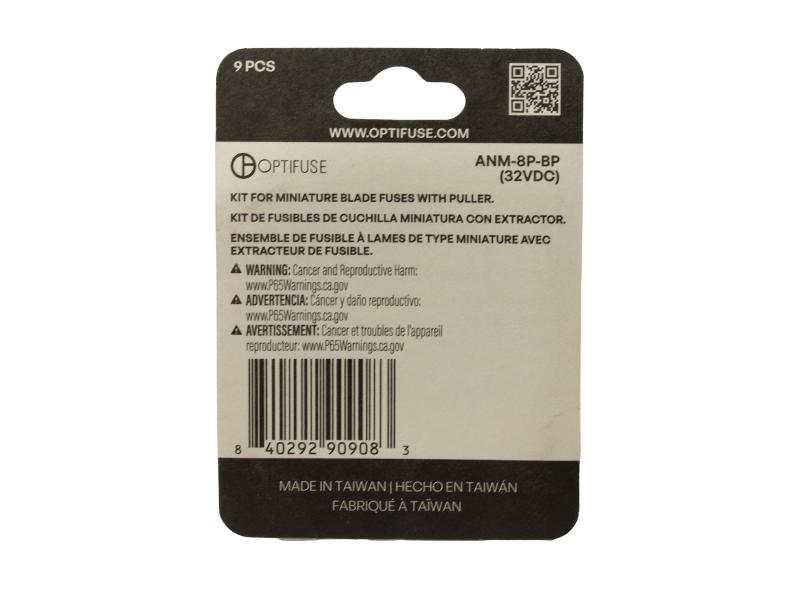

ANM-8P-BP


ANM-8P-BP

Blade - Mini Style - Assortment Pack
ISO certification image
SAE certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
Mini style9 piece assortment packIncludes (10, 15, 20, 25, 30) amp fuses & pullerAssortment Pack Quantity: 9PCS
Voltage Rating32VDC
Current Rating10A to 30A
Interrupt Rating 1000A DC
Features and Application
  • Assortment pack includes the most popular Mini style blade fuses in a convenient retail package.
  • Smaller than standard Regular (ATO/ATC style) blade fuses, this fuse can control more circuits by occupying less space.
  • Designed with industry-standard color coding for easy amperage identification.
Dimensions and 3D view
Dimensions
Length2.75
Height3.74
Width0.6
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.75
Height3.74
Width0.6
UnitInch
Related products

You can also use


ANM-8B-BP

Blade - Mini Style - Assortment Pack
Current Rating2A to 30A
Voltage Rating32VDC

ANM-8L-BP

Blade - Mini Style - Assortment Pack
Current Rating2A to 7.5A
Voltage Rating32VDC

ANM-NO.43-BP

Blade - Mini Style - Assortment Kit
Current Rating5A to 30A
Voltage Rating32VDC
Accessories and Mounting Devices

Use it with


LPM-01

In-Line - Mini - IP65
Current Rating10A to 30A
Voltage Rating125VDC

LPM-04-I

In-Line - Mini - LED
Current Rating10A to 30A
Voltage Rating24VDC

LPM-05

In-Line - Mini - IP67
Current Rating15A to 30A
Voltage Rating32VDC
