OptiFuse

ANS-UL


ANS-UL

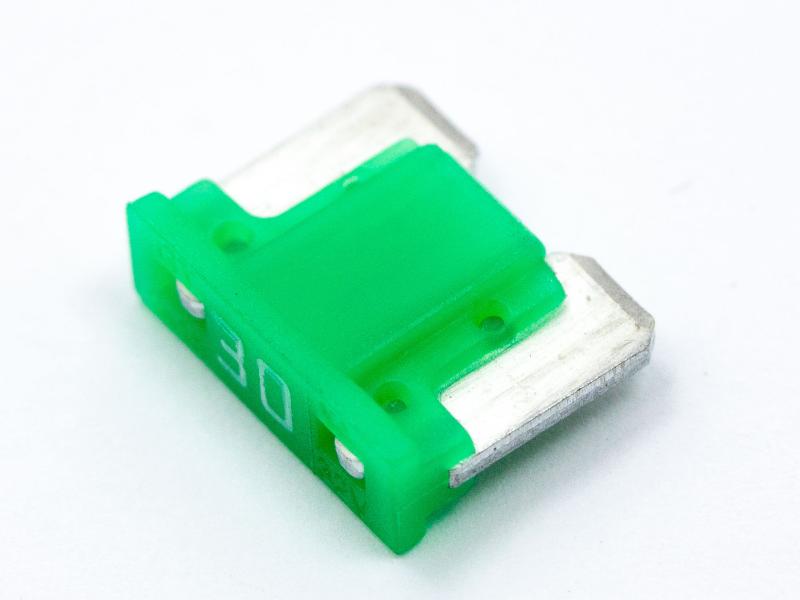

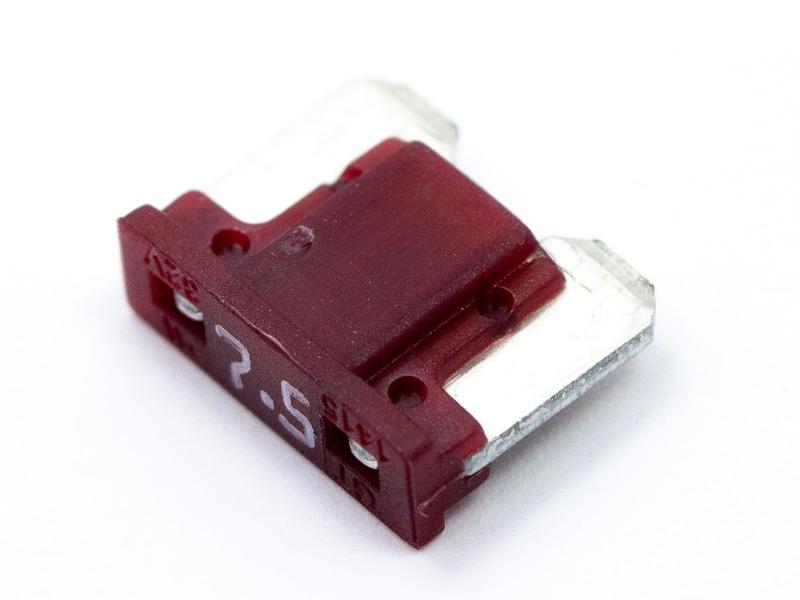

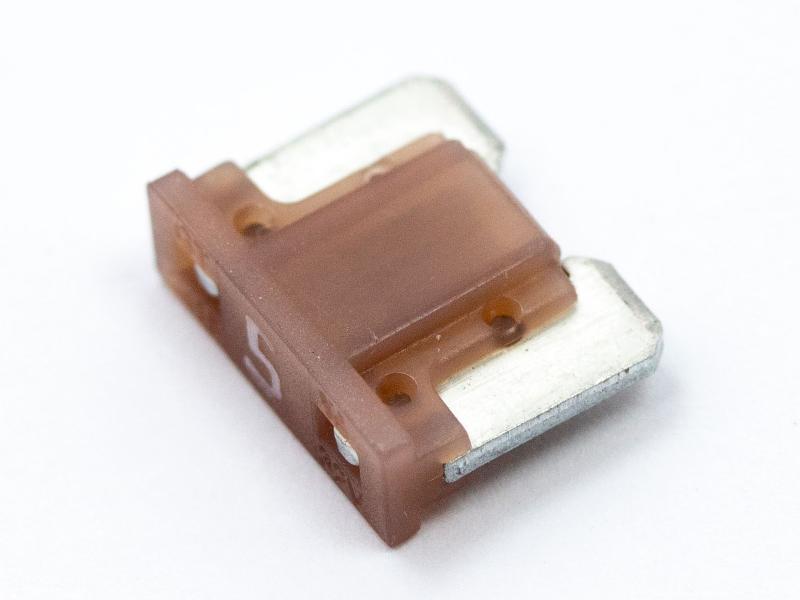

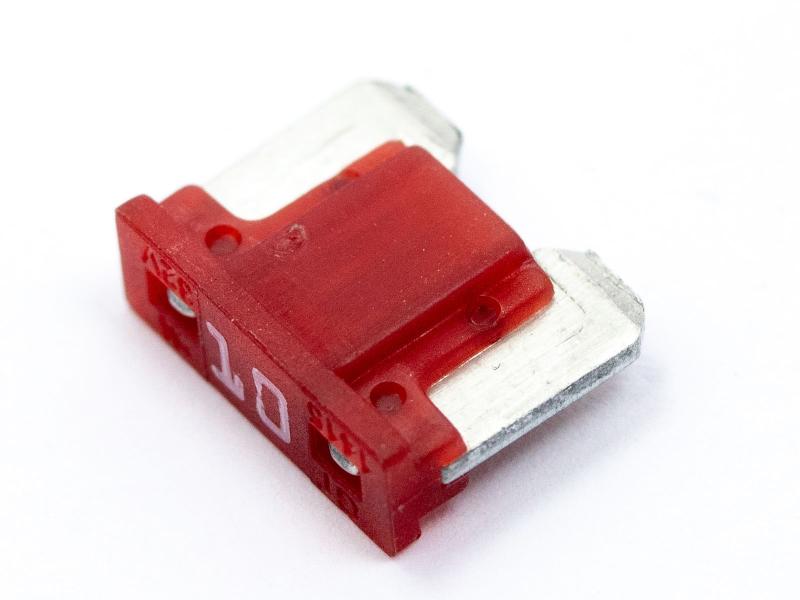

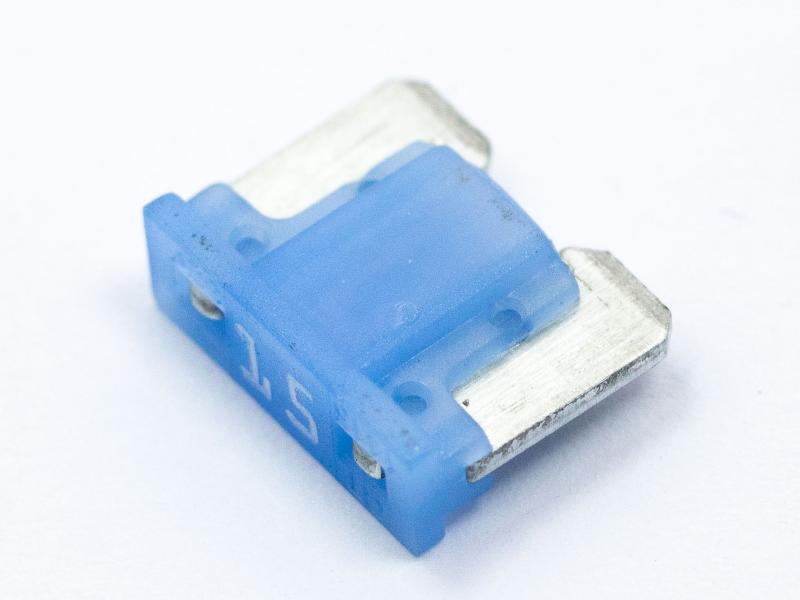

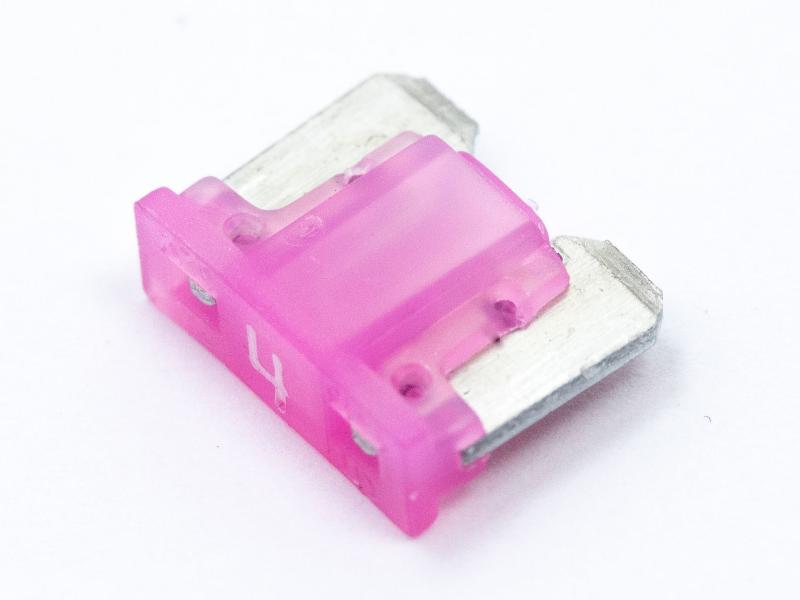

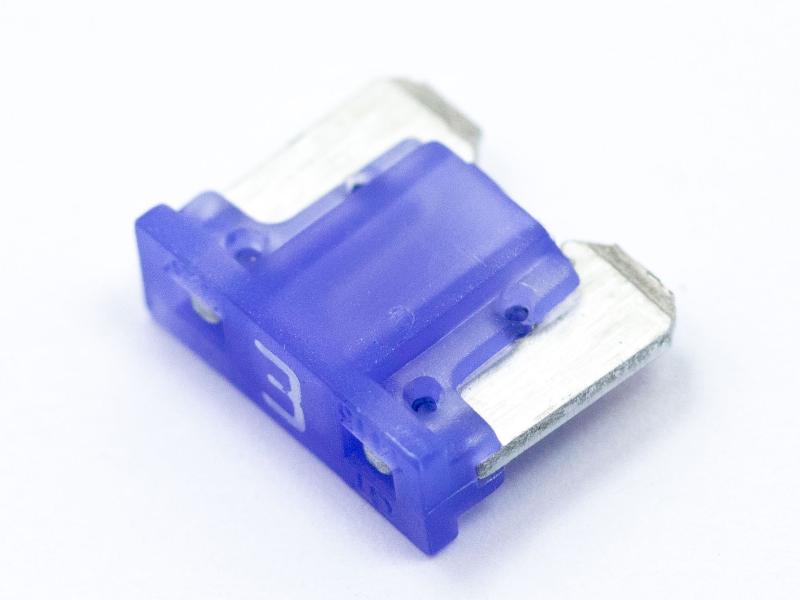

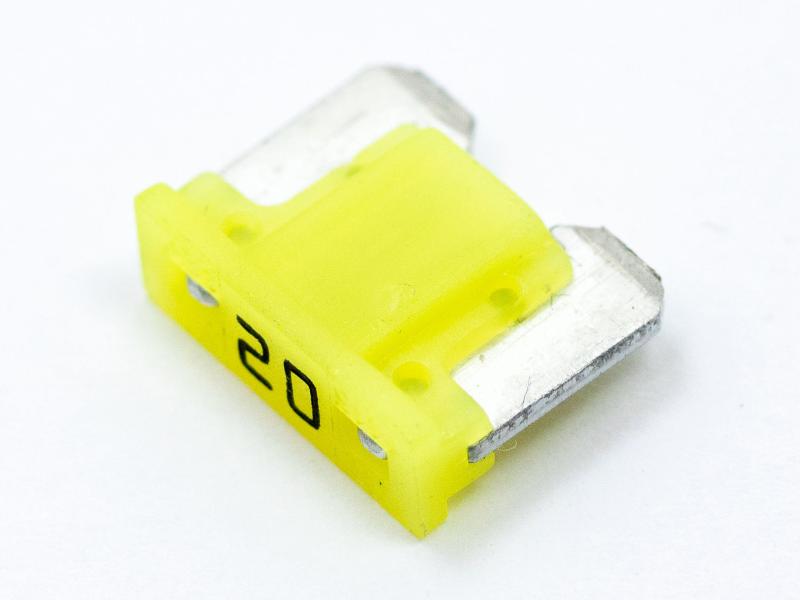

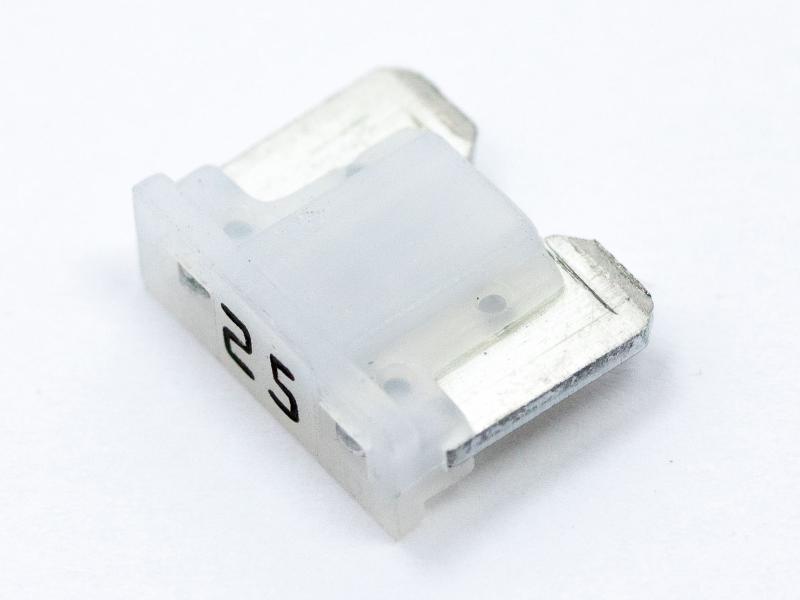

Blade - Mini Style - Low Profile - UL Approved
curus certification image
ISO certification image
SAE certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
Mini style - Low ProfileUL recognizedNylon housing
Voltage Rating32VDC
Current Rating3A to 30A
Interrupt Rating 1000A DC
Features and Application
  • With the same housing height and width as our Mini style blade fuses, this fuse is engineered to save more space and weight by utilizing blade terminals that do not extend the length of the plastic housing body.
  • UL recognized, enabling OEM companies to satisfy requirements from UL.

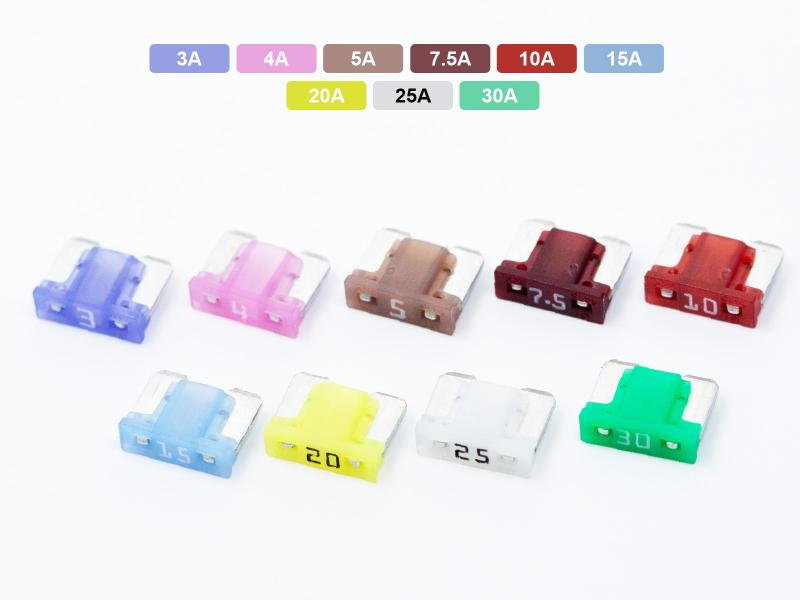

  • Designed with industry-standard color coding for easy amperage identification.
Dimensions and 3D view
Dimensions
Length0.43
Height0.34
Width0.15
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.43
Height0.34
Width0.15
UnitInch
