Key Specifications and Ratings

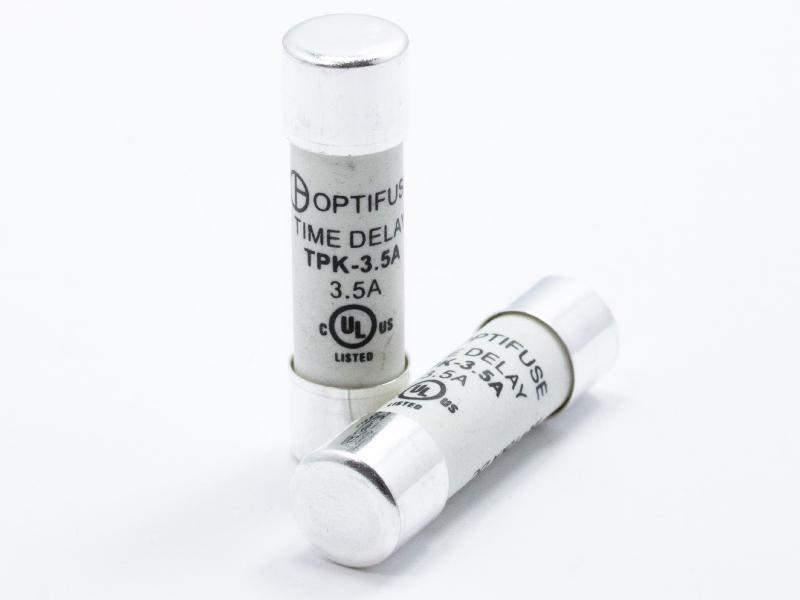

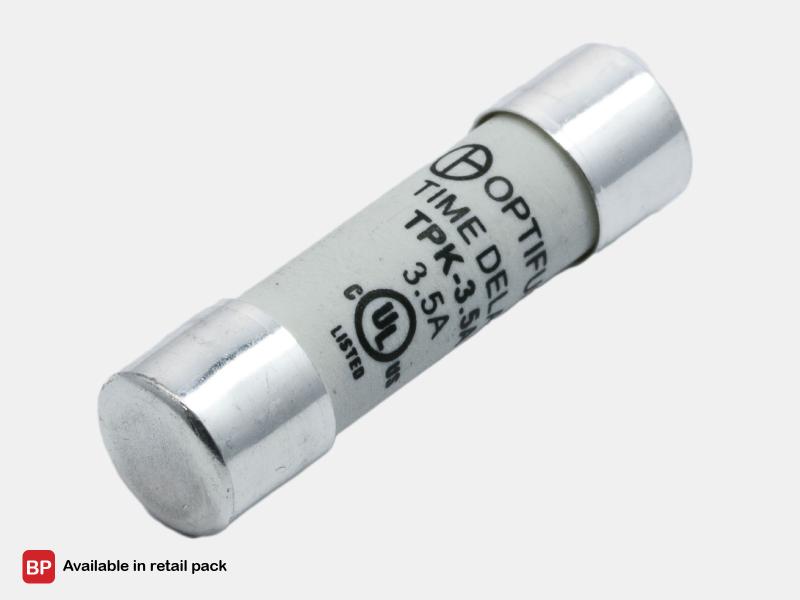

Midget fuse - 10 x 38 mmSupplementary circuit protectionTime delayRetail Pack Quantity: 1PC
Voltage Rating500VAC
Current Rating500mA to 30A
Interrupt Rating10000A AC
Features and Application
- UL listed Midget fuses offer supplementary overcurrent protection (UL 248–14) in equipment that has branch circuit protection already installed upstream in the circuit, while providing a high interrupting capacity in a low-profile industry standard 10 x 38mm size.
- The Time Delay response prevents nuisance tripping in circuits experiencing transient in-rush currents, such as small motor applications, control transformers, solenoids, and other inductive loads.
- The rated voltage is 500VAC with a 10K amp interrupting rating. Current ratings range from 500mA to 30A.

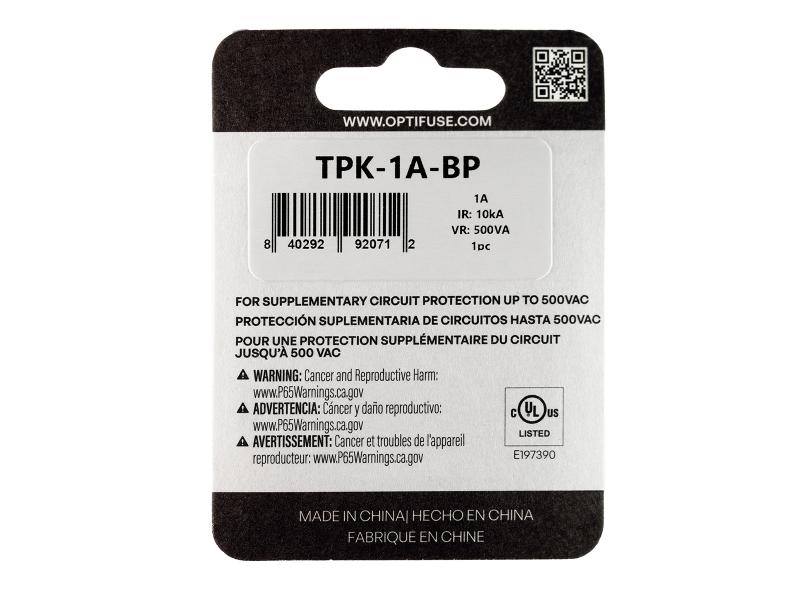

- NEW: Select products are available in attractive retail packaging.
UL File
Dimensions and 3D view
Dimensions
Length0.41
Height1.5
Width0.41
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.41
Height1.5
Width0.41
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
PMG-DS-01-Q2S
Current Rating30A
Voltage Rating600VAC

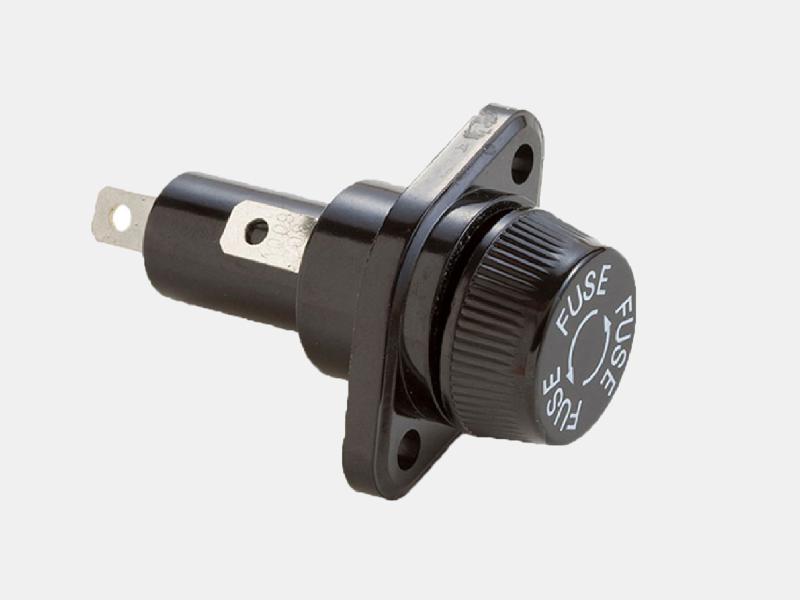

PMG-KB-01-Q2S
Current Rating30A
Voltage Rating600VAC

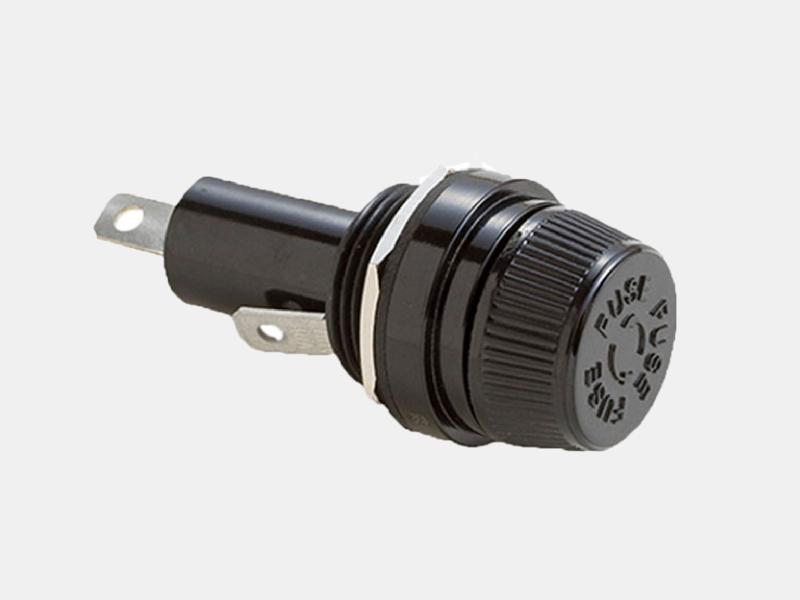

PMG-KB-02-Q2S
Current Rating30A
Voltage Rating600VAC
