Key Specifications and Ratings
Consolidates 4 circuitsIndependent circuitsSpace-saving compact design
Voltage Rating32VDC
Current Rating (Per Circuit)15A
Current Rating (Max Input)30A
Features and Application

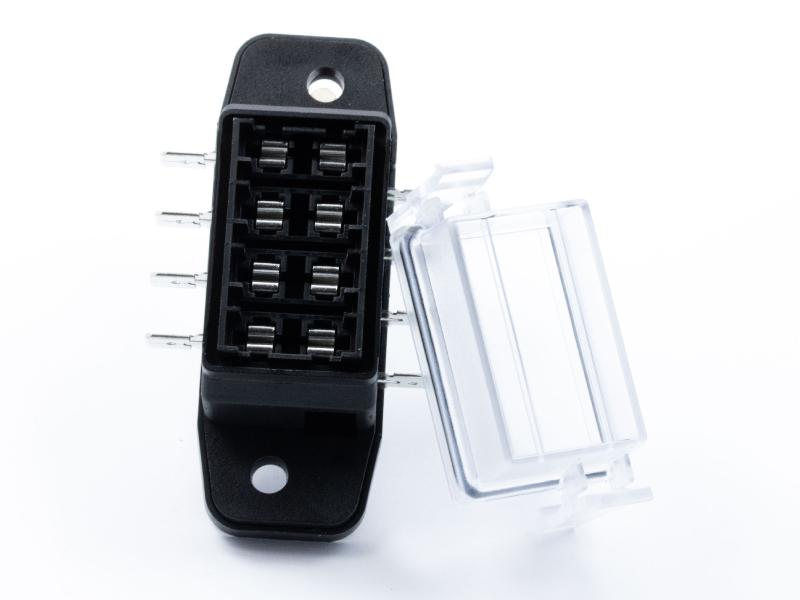

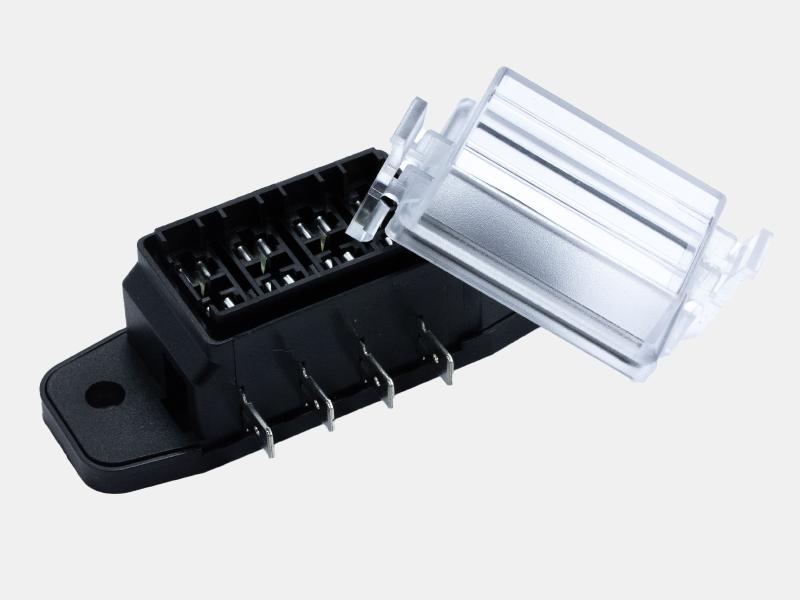

  • Consolidates 4 independently sourced branch circuits in one compact fuse block for Regular (ATO/ATC style) blade fuses. BLR-704 makes it convenient to combine switched and unswitched circuits on the same block.
  • The rated current is 15A per position and the combined rating depends on the number of positions (please check the datasheet for more information).
  • Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.23
Height1.02
Width1.79
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.23
Height1.02
Width1.79
UnitInch
