Key Specifications and Ratings
1, 2, and 3 polesFinger/Touch SafeLED blown fuse indicator
Voltage Rating1000VDC
Current Rating30A
Features and Application

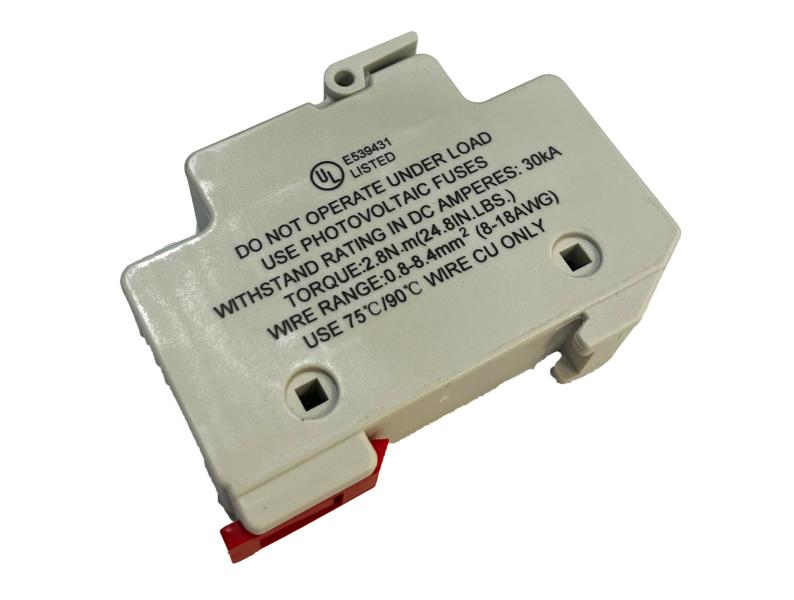

  • UL Listed Din-Rail mountable fuse block designed to fit 10 x 38mm Photovoltaic fuses up to 30A. Intended for use in high voltage systems (up to 1000VDC). When used with a 10 x 38mm fuse the BPK-500 boasts a 30kA Interrupting Rating.

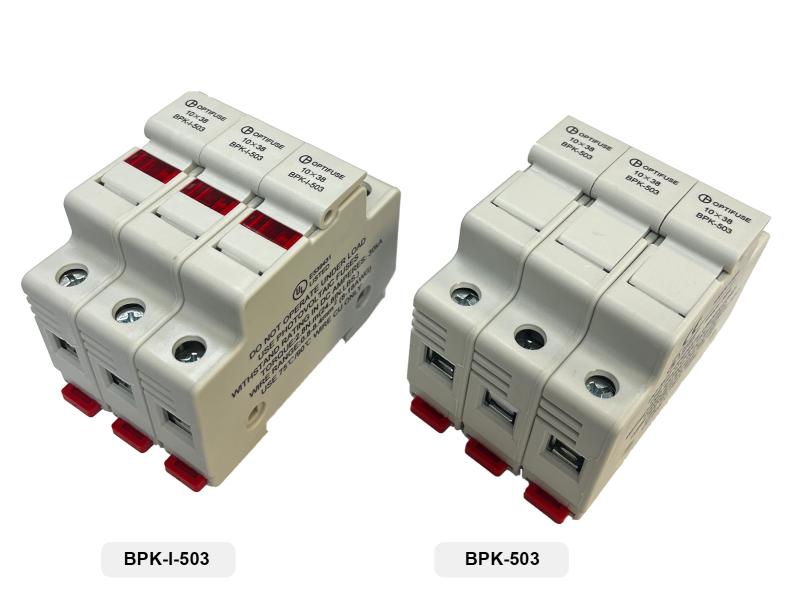

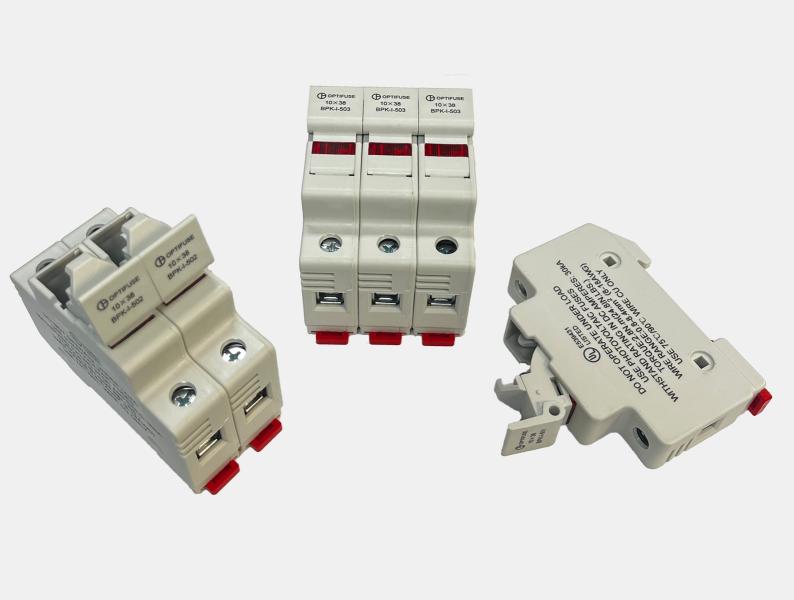

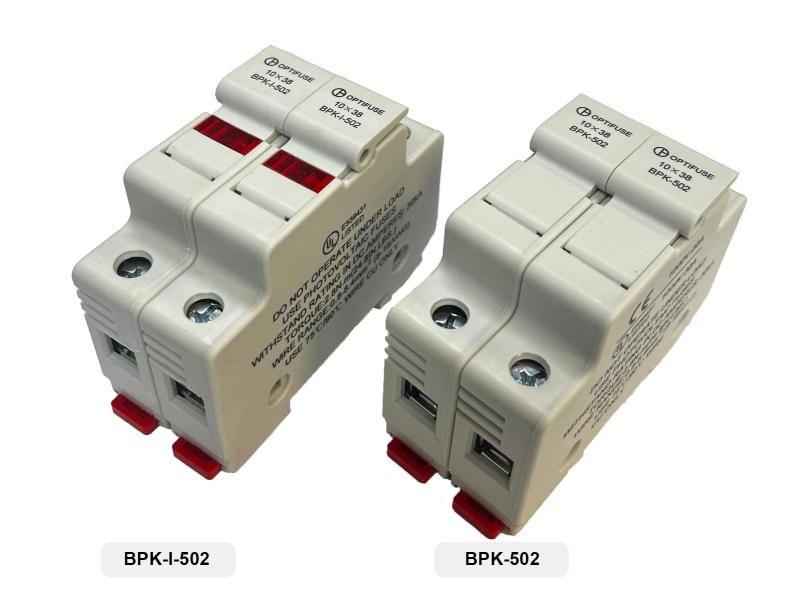

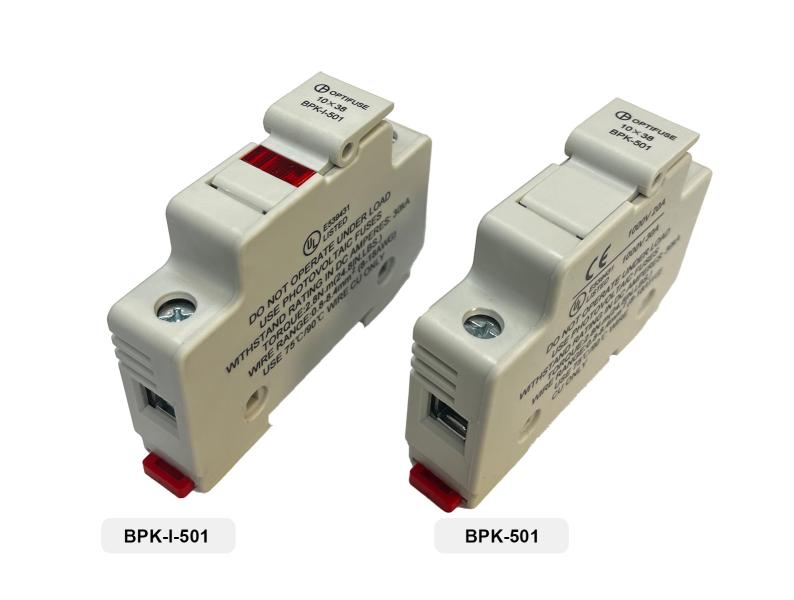

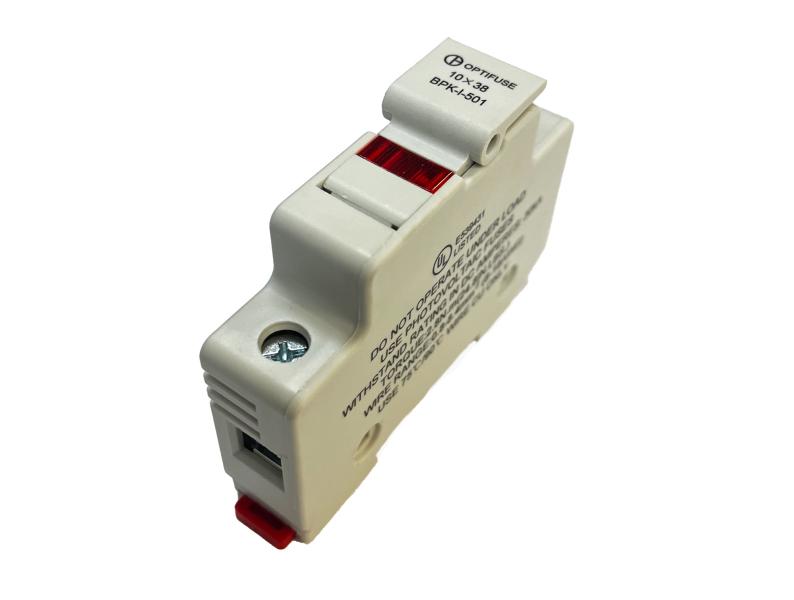

  • The BPK-500 features Finger/Touch Safe protection, enabling easy fuse changes without the need for additional tools. It is available in 1, 2, and 3 poles, with blown-fuse indicators for easy detection of fuse failures.
Dimensions and 3D view
Dimensions
Length3.25
Height2.48
Width0.69
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.25
Height2.48
Width0.69
UnitInch
