Key Specifications and Ratings
1, 2, and 3 polesFinger/Touch SafeDin-Rail fuse block
Voltage Rating600VAC 600VDC
Current Rating30A
Features and Application

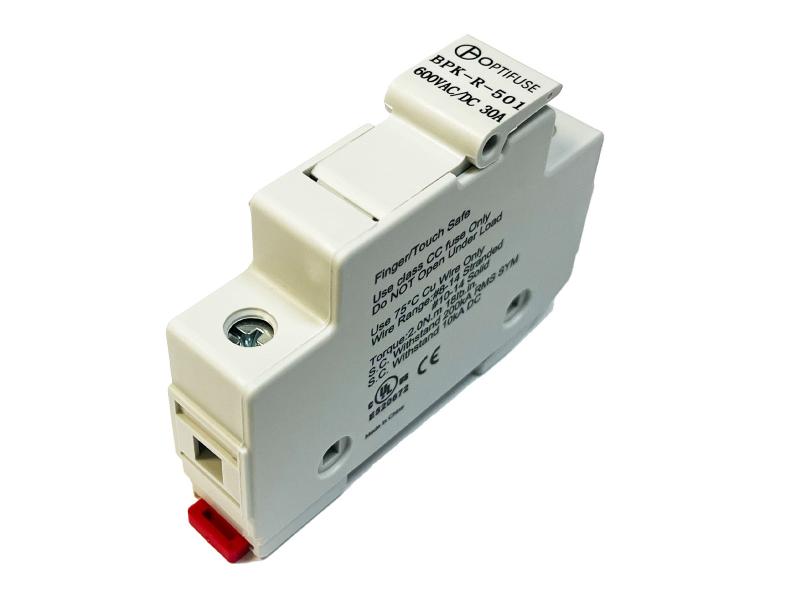

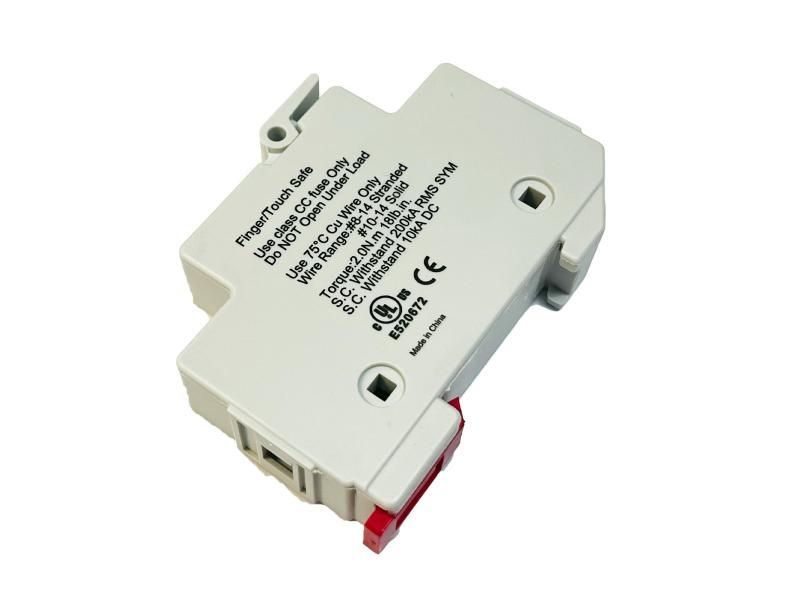

  • UL Listed Din-Rail mountable fuse block designed to fit UL Class CC fuses only. Intended for use in high voltage systems (up to 600VAC/VDC) up to 30A. When used with a class CC fuse, the BPK-R-500 boasts a 200kA Interrupting Rating.

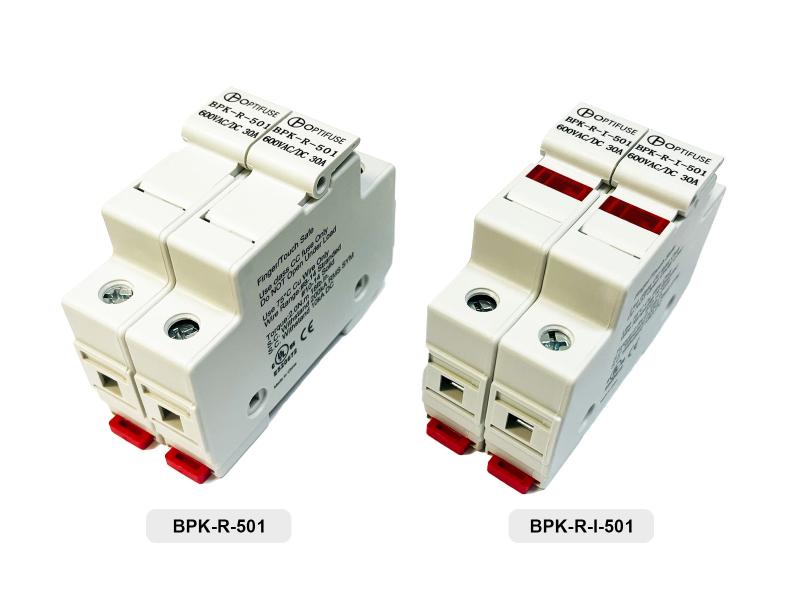

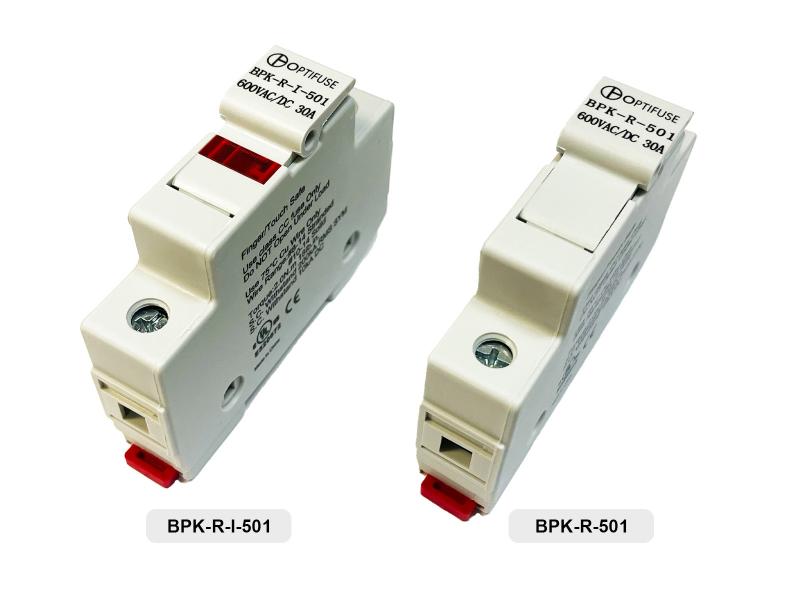

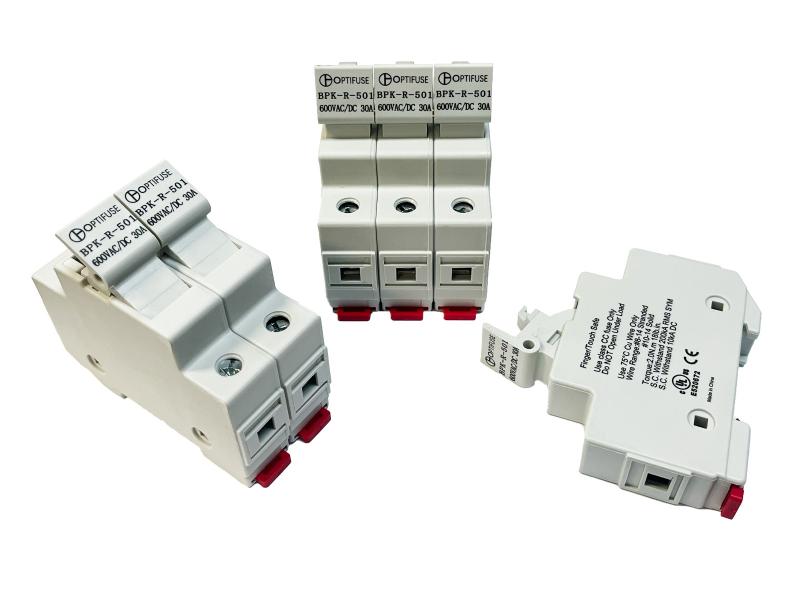

  • The BPK-R-500 features Finger/Touch Safe protection, enabling easy fuse changes without the need for additional tools. It is available in 1, 2, and 3 poles.
Dimensions and 3D view
Dimensions
Length3.12
Height2.16
Width0.69
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.12
Height2.16
Width0.69
UnitInch
