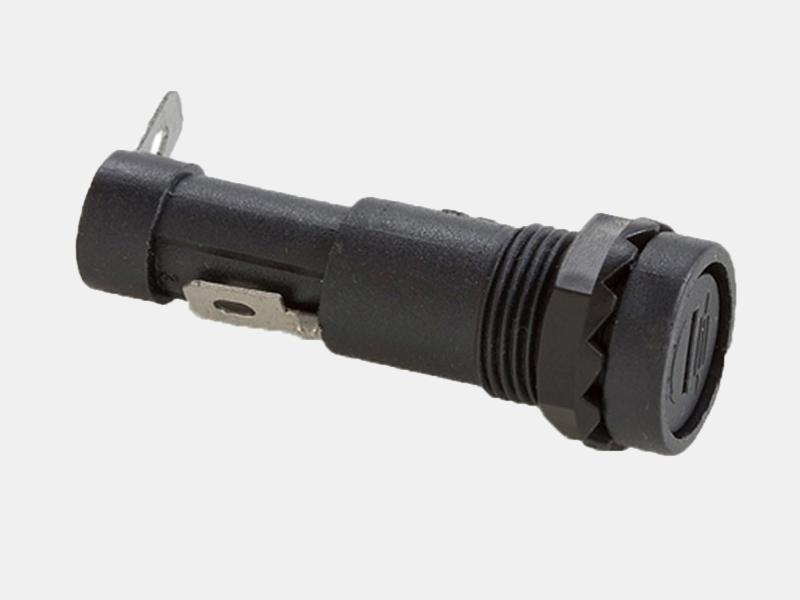

Key Specifications and Ratings
Shock-Safe fuse holderBayonet capScrewdriver release
Voltage Rating250VAC
Current Rating15A
Features and Application
- Panel-mounted fuse holder for 6.3 x 32mm fuses used in electronic equipment, appliances, and lighting circuits.
- With a bayonet cap that opens conveniently with a ¼ turn, and a screwdriver release to access the fuse.
- This holder comes with 0.187” quick-connect tabs.
UL File
Dimensions and 3D view
Dimensions
Length0.59
Height1.72
Width0.59
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.59
Height1.72
Width0.59
UnitInch
Related products
You can also use

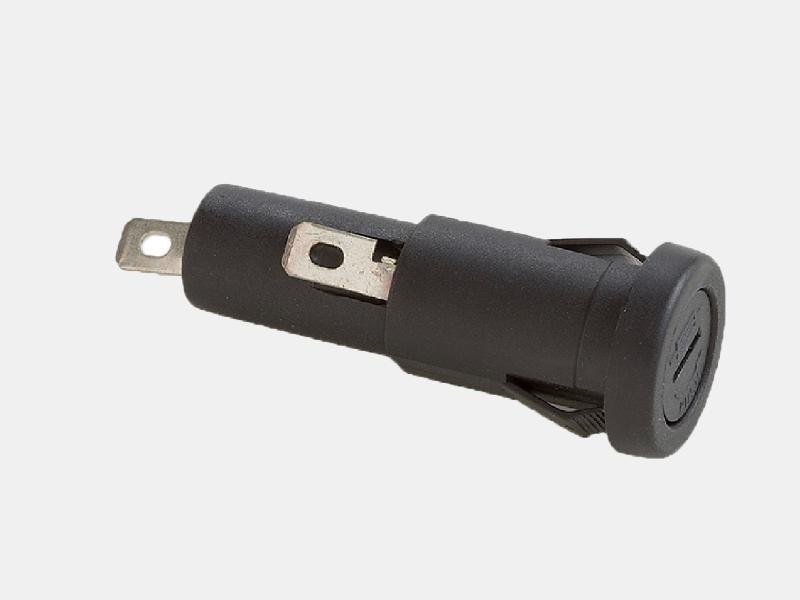

PMA-DB-04-Q1S
Current Rating10A
Voltage Rating250VAC

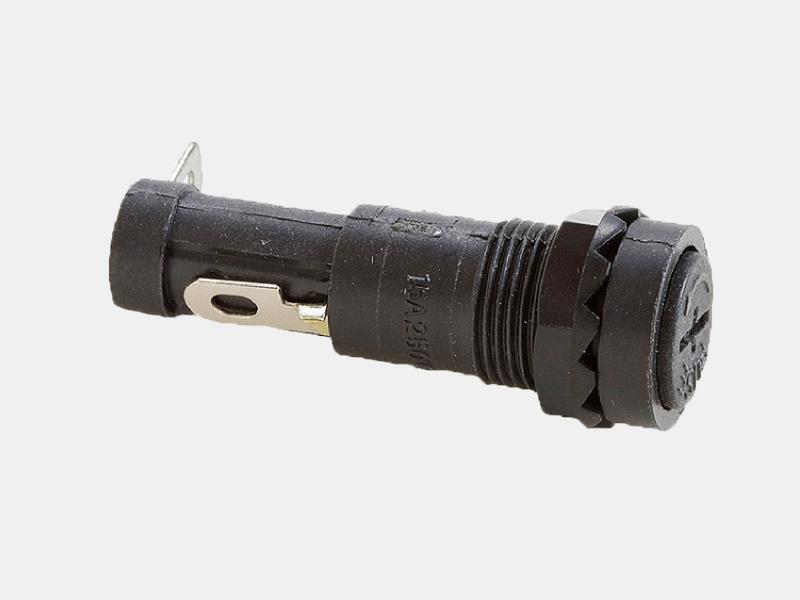

PMA-DS-05-Q1R
Current Rating15A
Voltage Rating250VAC

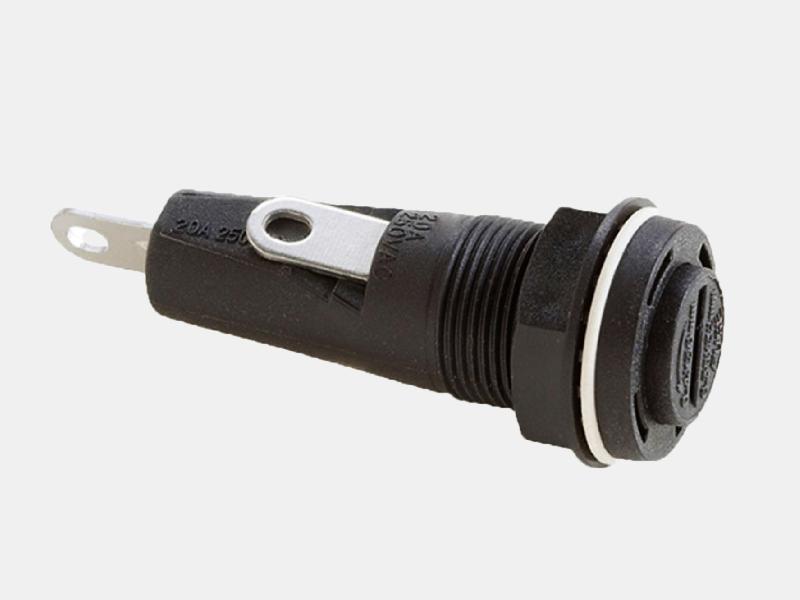

PMA-DS-07-SOS
