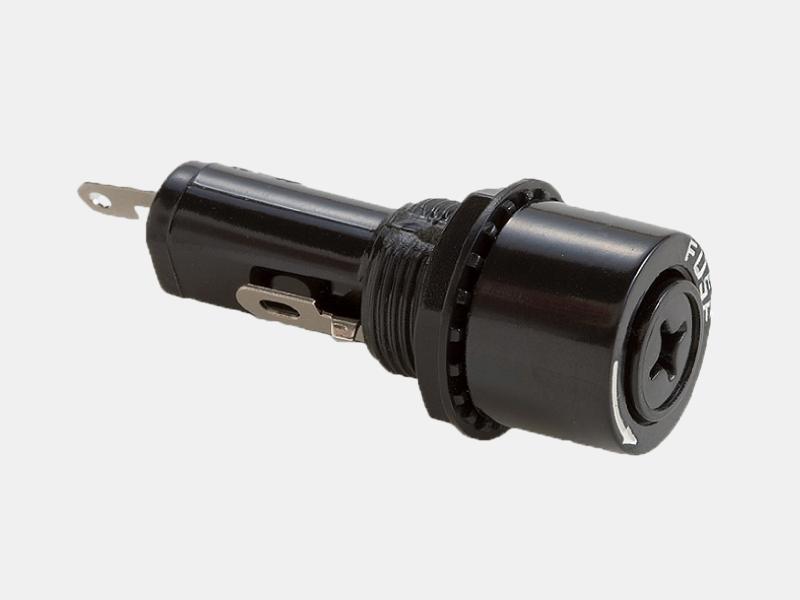

PMA-DS-01-Q1S Quick-Connect 6.3x32mm Fuse Holder for Easy Installation
Disclaimer Notice
PMA-DS-01-Q1S Quick-Connect 6.3x32mm Fuse Holder for Easy Installation
Disclaimer Notice
Panel Mount - 6.3x32 mm - Screw Cap - Screwdriver Release
Contact Sales
Find a DistributorKey Specifications and Ratings
Shock-Safe fuse holderScrew capScrewdriver release
Voltage Rating250VAC
Current Rating10A
Features and Application
- Panel-mounted fuse holder for 6.3 x 32mm fuses used in electronic equipment, appliances, and lighting circuits.
- With a screw cap that provides superior water and condensation resistance, and a convenient screwdriver release to access the fuse.
- This holder comes with 0.187” quick-connect tabs.
UL File
Dimensions and 3D view
Dimensions
Length0.72
Height2.11
Width0.72
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.72
Height2.11
Width0.72
UnitInch
Related products
You can also use
PMA-DS-05-Q1R
Current Rating15A
Voltage Rating250VAC
PMA-DS-07-SOS
Current Rating20A
Voltage Rating250VAC
PMA-DB-04-Q1S
Current Rating10A
Voltage Rating250VAC
Accessories and Mounting Devices
Use it with
FSA / FSA-P
Current Rating100mA to 30A
Voltage Rating250VAC 32VDC
FCA / FCA-P
Current Rating300mA to 30A
Voltage Rating250VAC
TSA / TSA-P
Current Rating200mA to 30A
Voltage Rating250VAC
