Key Specifications and Ratings
Shock-Safe fuse holderBayonet capFinger release
Voltage Rating250VAC
Current Rating10A
Features and Application

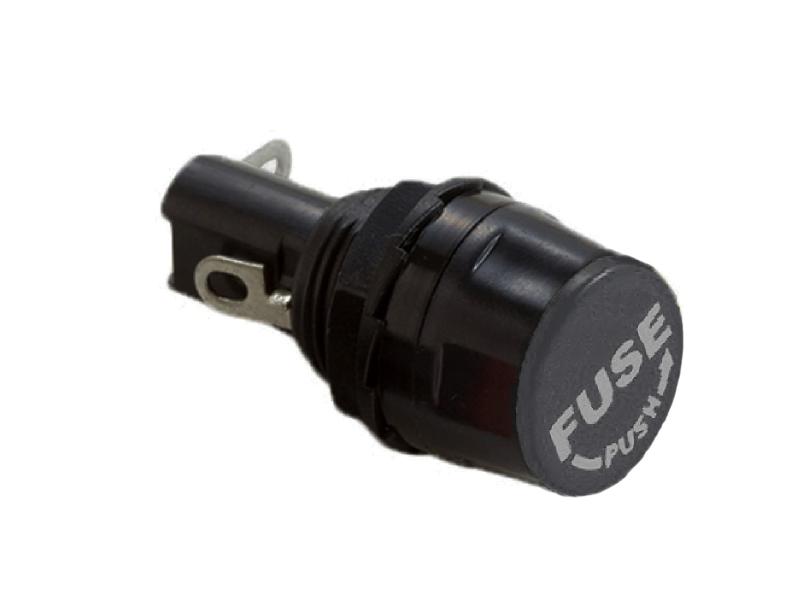

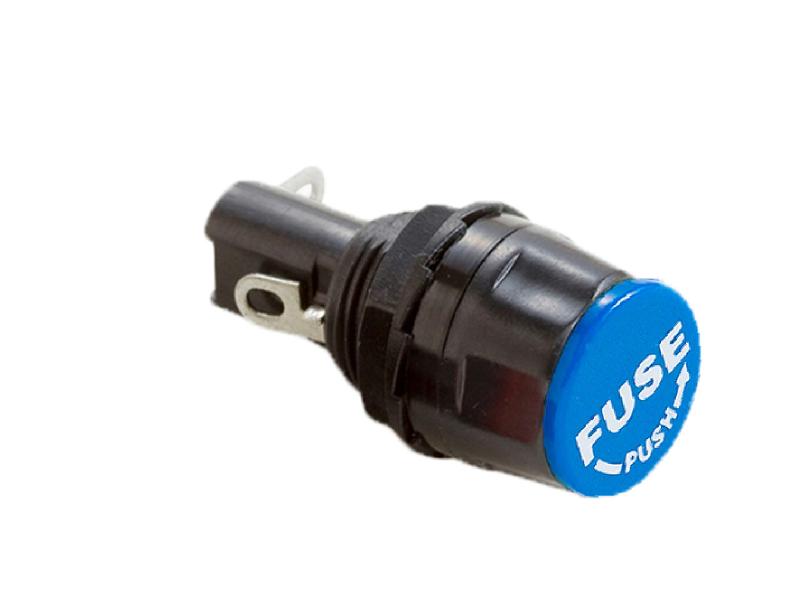

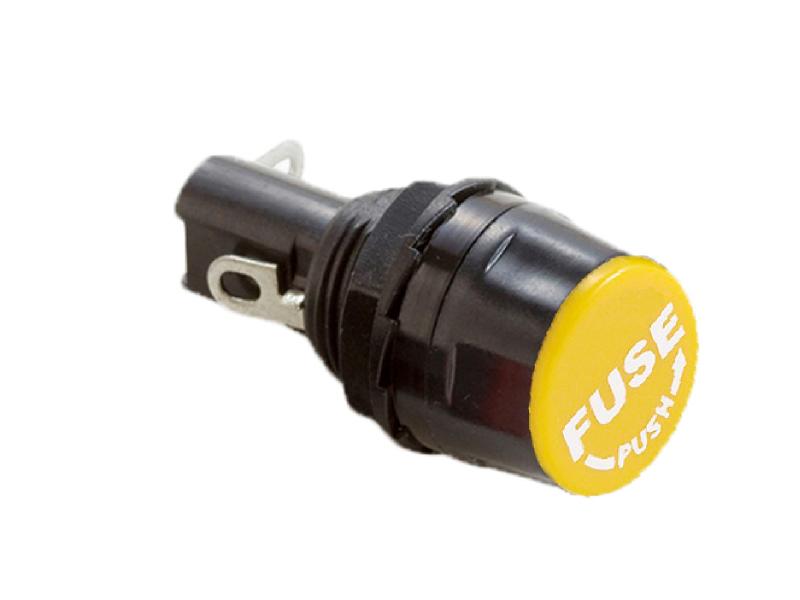

- Panel-mounted fuse holder for 5 x 20mm fuses used in electronic equipment, appliances, and lighting circuits. Color-coded knob for amperage identification in applications that use two or more different amperage fuses.
- With a bayonet cap that opens conveniently with a ¼ turn, and a release that allows the user to remove the fuse with just their fingers.
- Engineered with solder tabs designed for higher current situations or applications with a lot of vibration.
UL File
Dimensions and 3D view
Dimensions
Length0.63
Height1.29
Width0.63
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.63
Height1.29
Width0.63
UnitInch
Related products
You can also use
PMC-KB-02-Q1S
Current Rating10A
Voltage Rating250VAC
PMC-KB-06-Q1S
Current Rating15A
Voltage Rating250VAC
PMC-KS-01-SOS
Current Rating10A
Voltage Rating250VAC
