Key Specifications and Ratings
AC/DC ratingsSpace-saving compact sizeVarious wire gauge, length and colors available
Voltage Rating32VDC
Current Rating10A to 20A
Wire Gauge#14 - #18AWG
Wire ColorsRed
Wire Length8 Inches
Features and Application

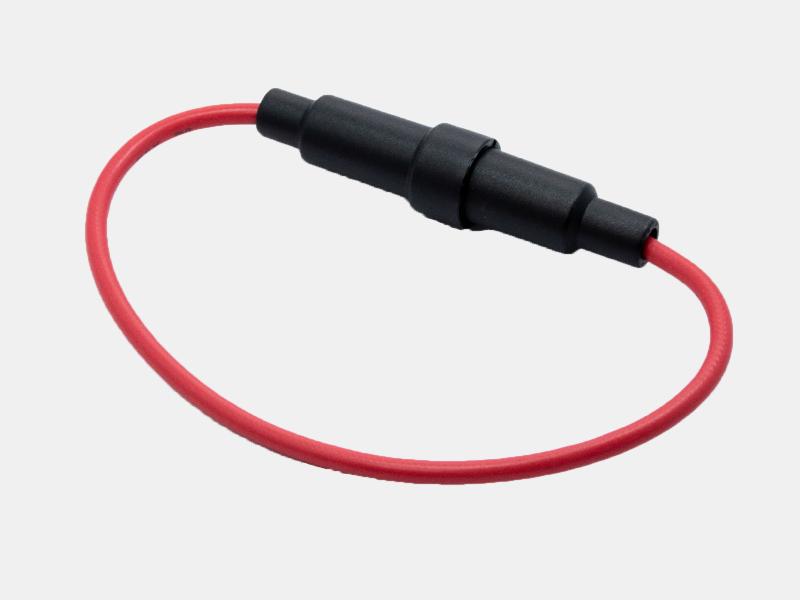

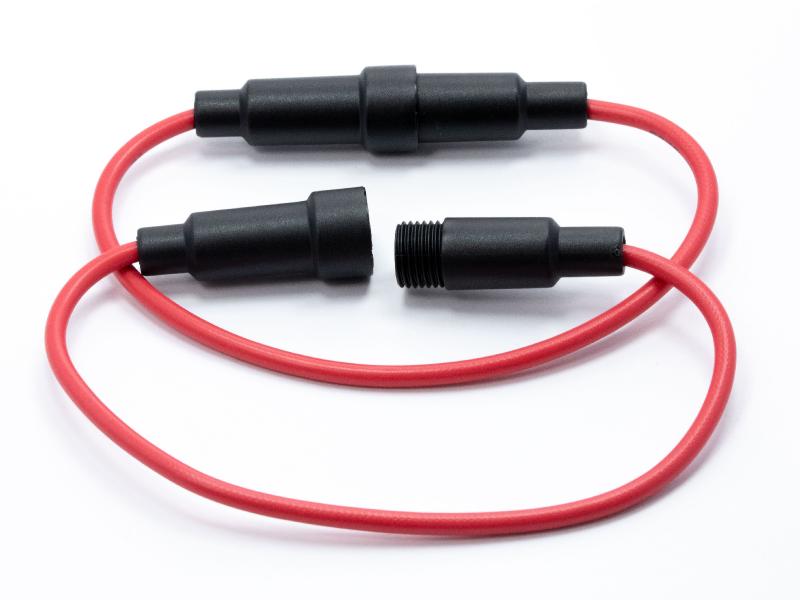

- Designed for use with 6.3 x 32mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- Intended for use in DC circuits (up to 32VDC) and AC circuits (up to 250VAC), this fuse holder can safely handle up to 20A, depending on the wire gauge.
Dimensions and 3D view
Dimensions
Length0.52
Height2.3
Width0.52
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.52
Height2.3
Width0.52
UnitInch
Accessories and Mounting Devices
Use it with
