Key Specifications and Ratings
UL recognized to use with supplementary fusesSpace-saving compact size
Voltage Rating250VAC
Current Rating5A to 10A
Wire Gauge#18 - #20AWG
Wire ColorsRed
Wire Length12 Inches
Features and Application

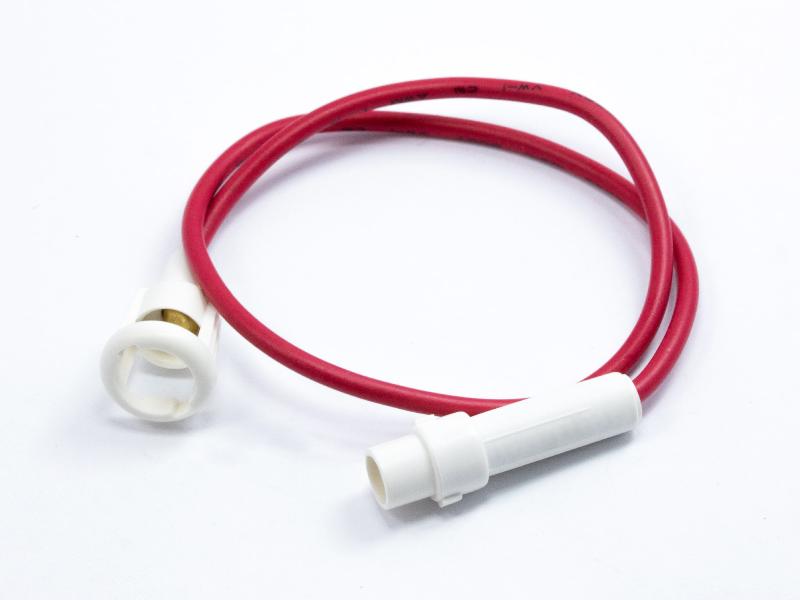

- Designed for use with 5 x 20mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- Intended for use at 250VAC max rated up to 5A, this holder is UL recognized to use with special-purpose and supplementary cartridge fuses, and is intended for installation in end-use equipment or products.
UL File
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/LPC-21.png)
Dimensions
Length0.67
Height1.77
Width0.67
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/LPC-21.png)
Dimensions
Length0.67
Height1.77
Width0.67
UnitInch
