Key Specifications and Ratings
Comes with insulating coverInterlocking pins to create a multi-fuse blockMounting brackets molded onRetail Pack Quantity: 1PC
Voltage Rating250VAC 250VDC
Current Rating200A
Features and Application

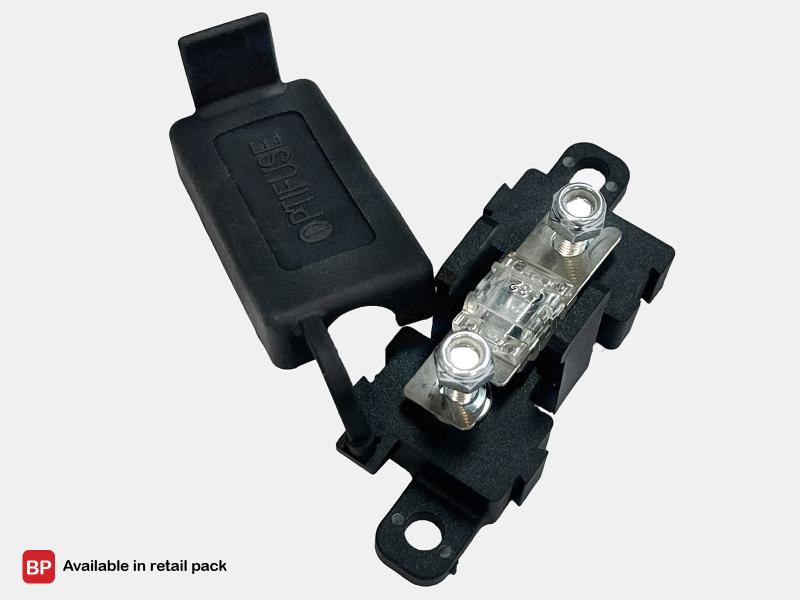

- Designed for MID / MIDA bolt-on fuses rated up to 200A, this block accepts M5 ring terminals.
- Its insulating cover protects against accidental short circuits and prevents anything from accidentally touching the exposed terminal studs.

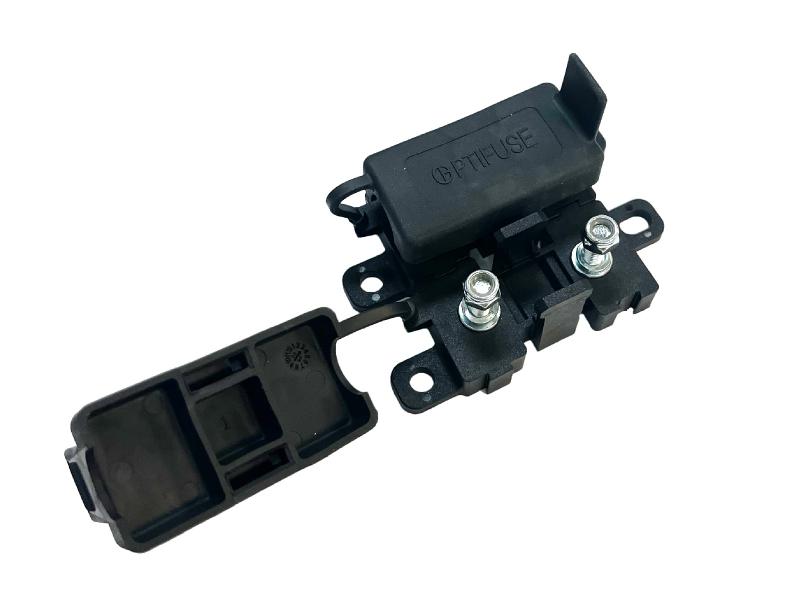

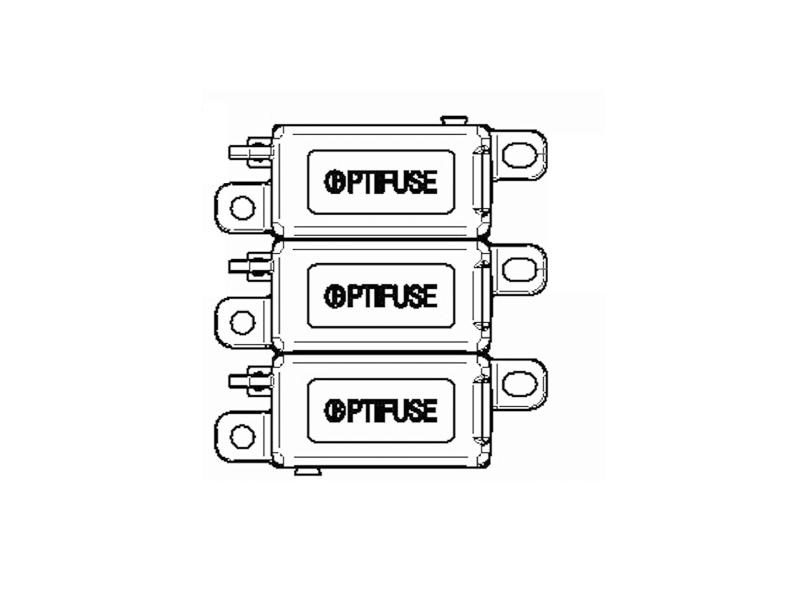

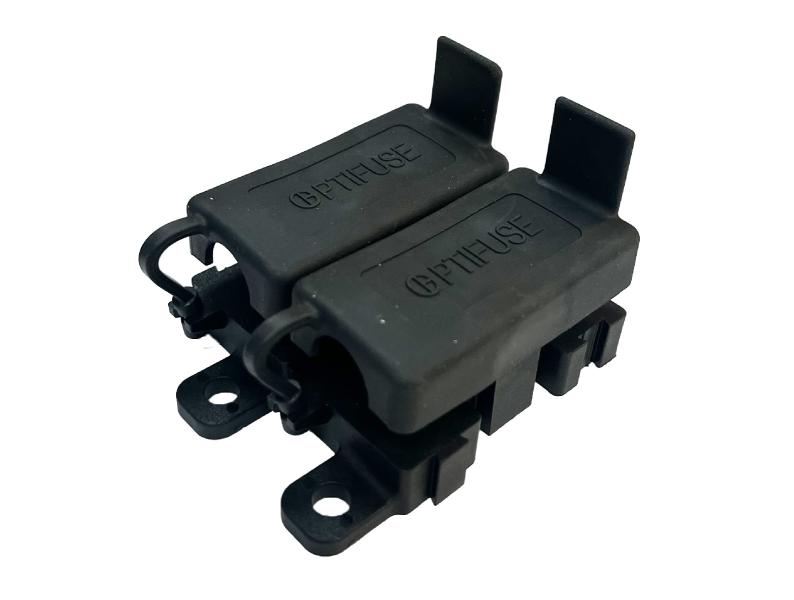

- Interlocking pins on the sides allow for connecting additional BLC-65 fuse blocks to create a multi-fuse block.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length2.6
Height1.63
Width1.49
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.6
Height1.63
Width1.49
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
