Key Specifications and Ratings
Ignition protectedSplash-proof cap (IP 65)Various wire gauge, length and colors availableRetail Pack Quantity: 1PC
Voltage Rating125VDC
Current Rating60A to 80A
Wire Gauge#6 - #8AWG
Wire ColorsBlack, Red
Wire Length5 Inches
Features and Application

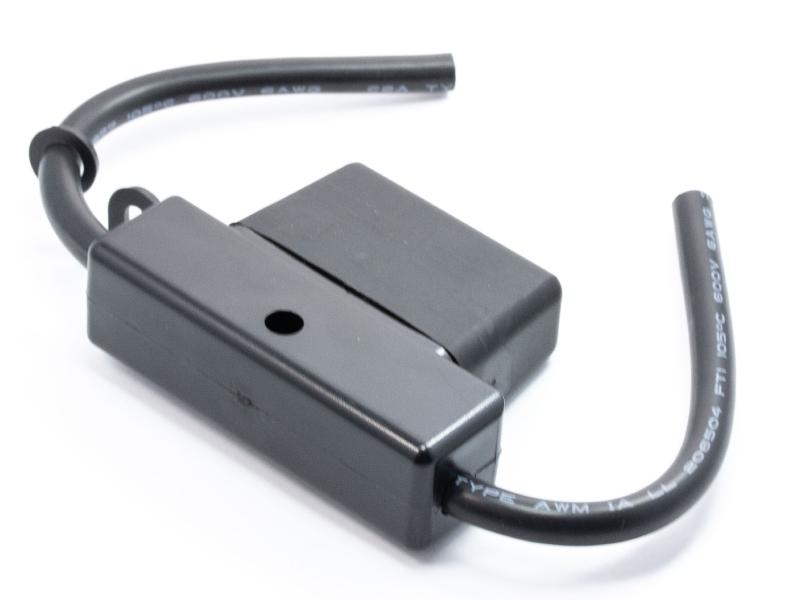

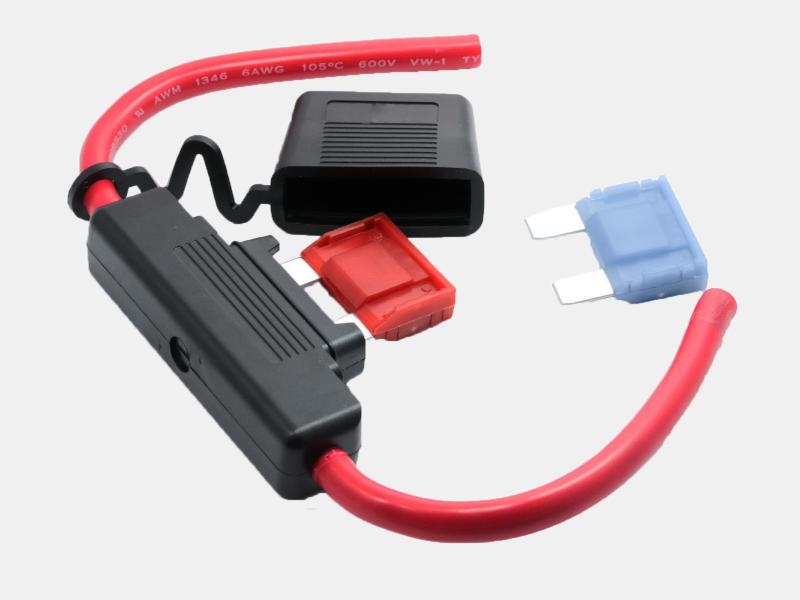

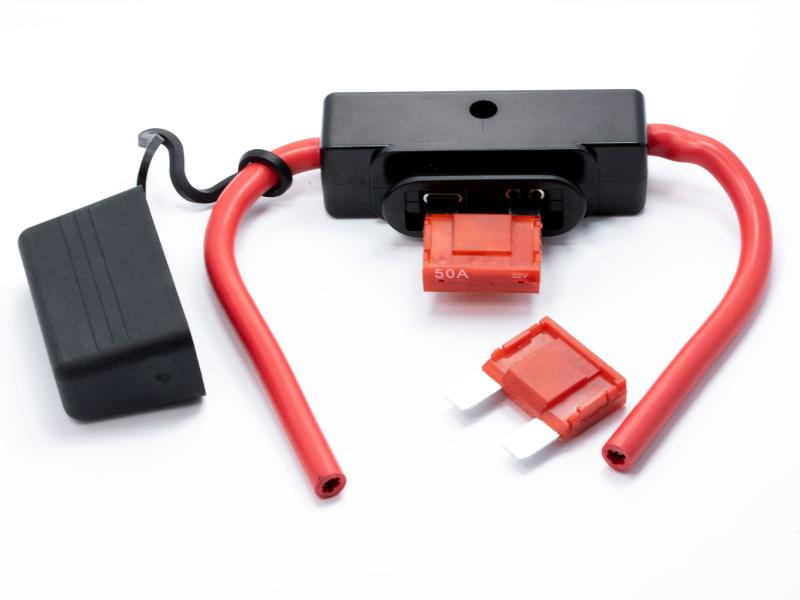

- In-line fuse holder designed to help save space in vehicle electrical systems, with a mounting hole in the housing for easy installation.
- Featuring an integrated snap-on cover that helps protect the fuse from water, dust, and other airborne pollutants, this holder is ignition protected and IP65 rated, making it ideal for heavy-duty loads associated with automotive and marine applications.

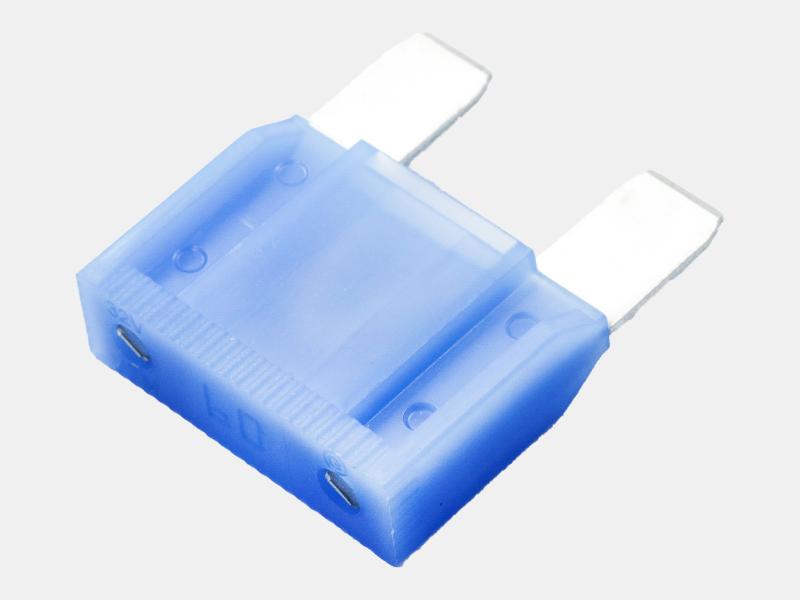

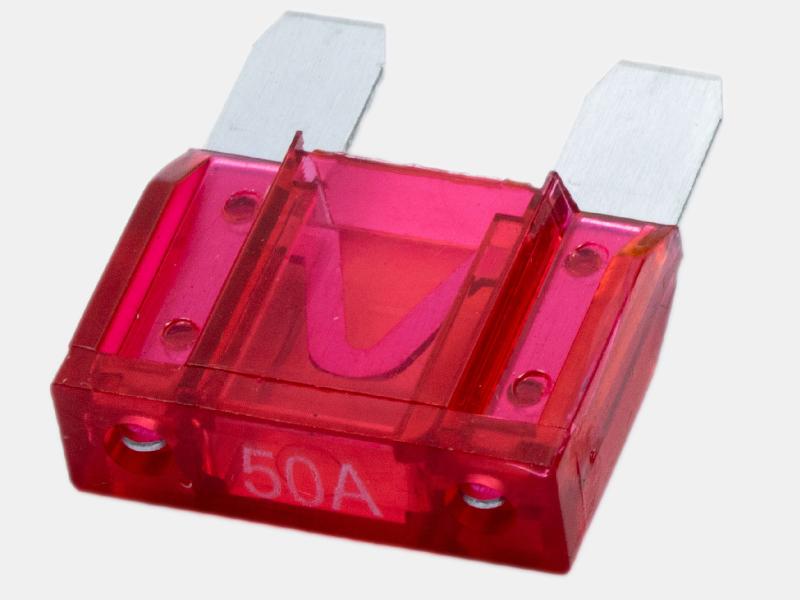

- Compatible with 32V, 58V and 80V DC Maxi style blade fuses, this holder is configured with 8AWG leads that are compatible with fuses up to 60A or with 6AWG leads that accept fuses up to 80A.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length3.37
Height1
Width2.38
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.37
Height1
Width2.38
UnitInch
