Key Specifications and Ratings
Recommended with LED indicator fusesSplash-proof cap (IP 65)Various wire gauge, length and colors available
Voltage Rating250VAC 125VDC
Current Rating10A to 40A
Wire Gauge#10 - #18AWG
Wire ColorsRed
Wire Length12 Inches
Features and Application

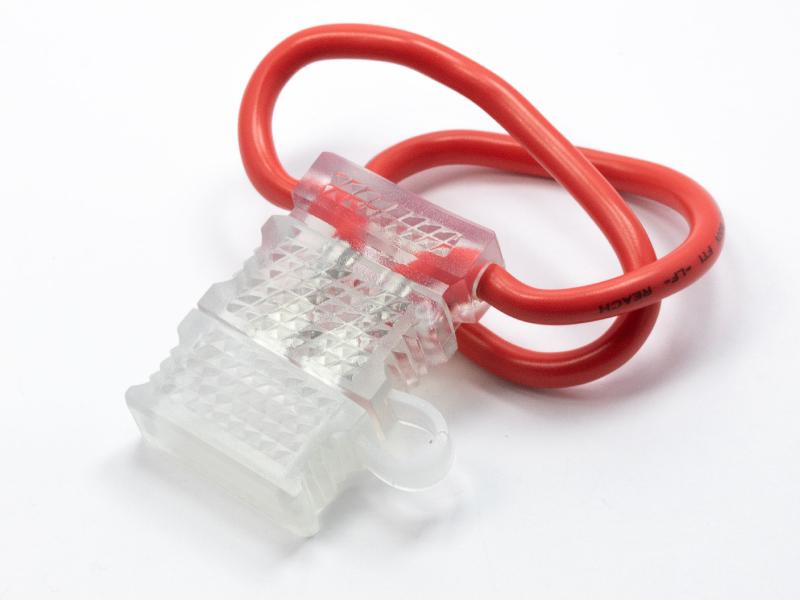

  • In-line fuse holder designed to help save space in vehicle electrical systems, built with a clear body that pairs well with ANR-I indicating fuses to pinpoint when the fuse is open and needs replacement.
  • Features an integrated snap-on cover that helps protect the fuse from water, dust, and other airborne pollutants, with an IP65 rating that makes it ideal for both automotive and marine applications.
  • Compatible with 32V, 58V, 80V and 125VDC/250VAC Regular (ATO/ATC style) blade fuses, this holder can safely handle up to 30A, depending on the wire gauge.
Dimensions and 3D view
Dimensions
Length1.18
Height0.51
Width1.18
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.18
Height0.51
Width1.18
UnitInch
