Key Specifications and Ratings
Splash-proof cap (IP 63)Recommended with LED indicator fusesBracket to gang multiple holders together
Voltage Rating125VDC
Current Rating15A to 20A
Wire Gauge#14 - #16AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

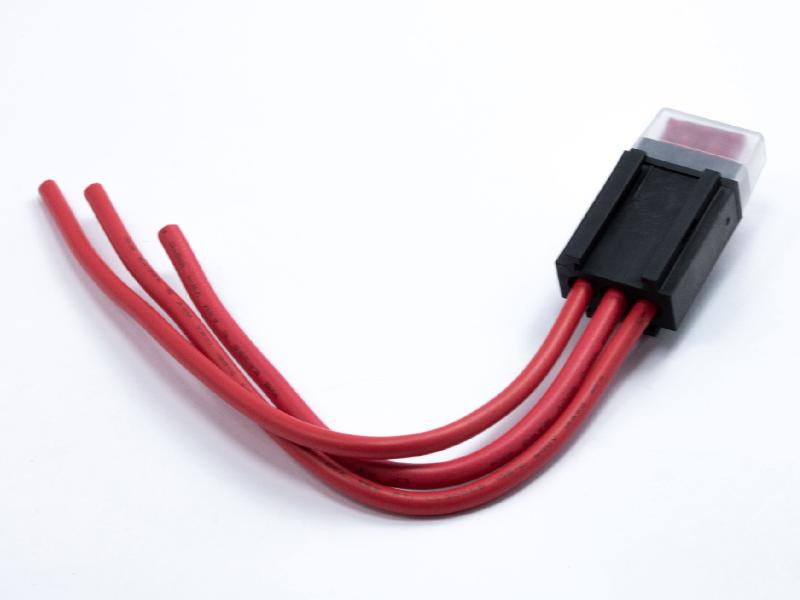

- In-line fuse holder designed to save space in vehicle electrical systems, typically used to mount individual fuses in cars, trucks, RVs, and DC-powered equipment.
- Compatible with 32V and 58V DC MICRO3 style blade fuses, with 16 AWG leads that are compatible with fuses up to 15A or 14 AWG leads that accept fuses up to 20A.
- Built with a clear cover that protects fuses against water splashes and all particles (IP63), while enabling the use of ANK-I indicating fuses that conveniently pinpoint an open fuse.

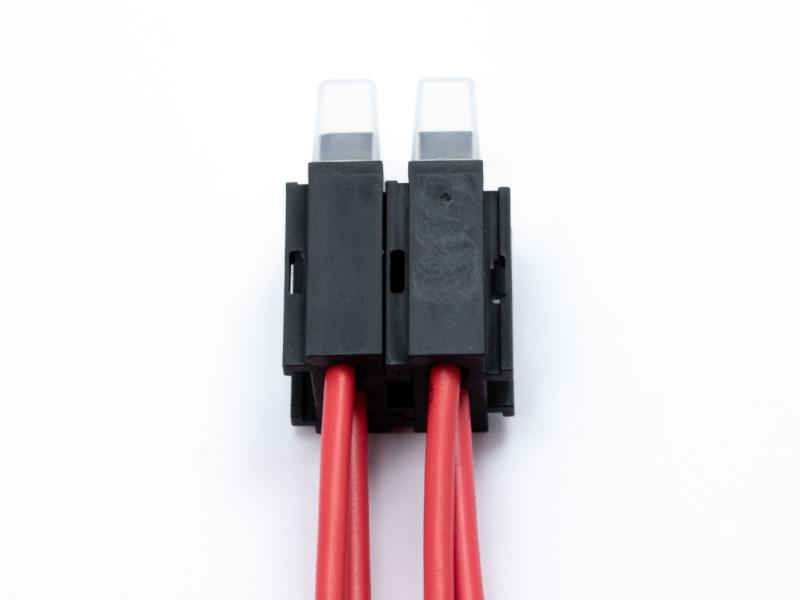

- The housing features an attached bracket to gang multiple fuse holders together.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/LPK-01.png)
Dimensions
Length0.84
Height0.61
Width1.5
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/LPK-01.png)
Dimensions
Length0.84
Height0.61
Width1.5
UnitInch
