Key Specifications and Ratings
Brass, tin-plated pins Insulating caseHorizontal fuse entry
Voltage Rating500VAC
Current Rating15A
Features and Application

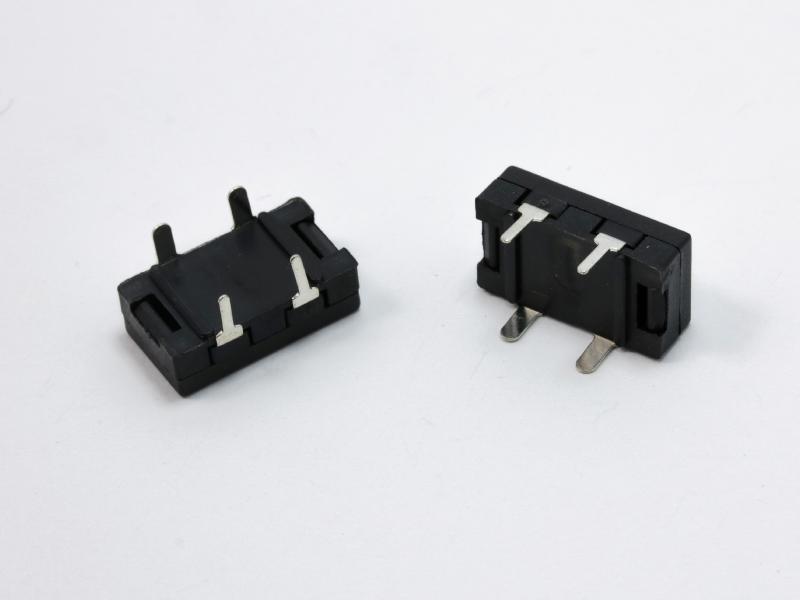

- Economical method to mount Mini style blade fuses on a printed circuit board (PCB), with the fuse being inserted parallel to board.
- With tin-plated mounting pins for easy soldering, this clip comes with an insulating case that offers protection against short circuits and holds the fuse securely, even after multiple insertions.
- The voltage rating is up to 500VAC and the current rating is up to 15A.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/CNM-04.png)
Dimensions
Length0.71
Height0.37
Width0.39
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/CNM-04.png)
Dimensions
Length0.71
Height0.37
Width0.39
UnitInch
